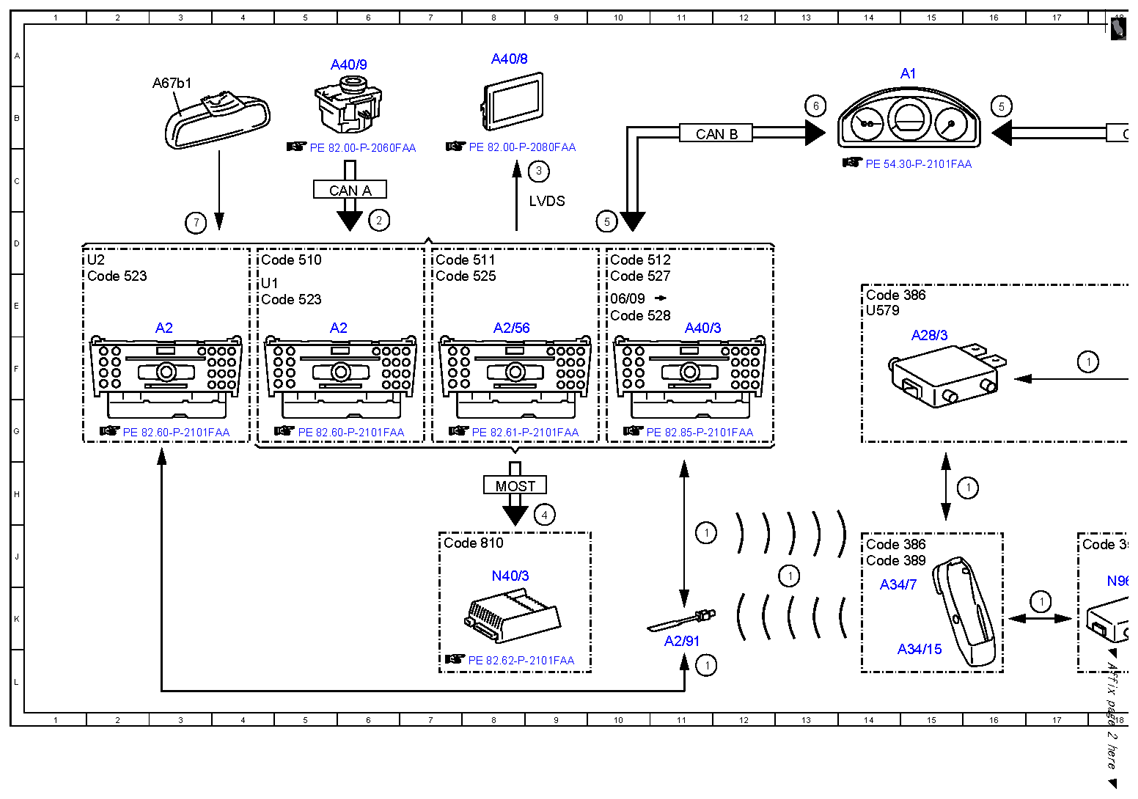

| 1 |
Telephone, signal |
11L |
| 1 |
Telephone, signal |
11J |
| 1 |
Telephone, signal |
20K |
| 1 |
Telephone, signal |
17K |
| 1 |
Telephone, signal |
16H |
| 1 |
Telephone, signal |
13J |
| 1 |
Telephone, signal |
20H |
| 1 |
Telephone, signal |
17F |
| 2 |
Audio/COMAND controller, request |
6D |
| 3 |
Audio/COMAND display, signal |
9C |
| 4 |
Sound system amplifier, actuation |
9H |
| 5 |
Multifunction steering wheel button group, signal |
10D |
| 5 |
Multifunction steering wheel button group, signal |
16B |
| 5 |
Multifunction steering wheel button group, signal |
22E |
| 5 |
Multifunction steering wheel button group, signal |
22D |
| 6 |
Instrument cluster, message |
13B |
| 7 |
Voice input, signal |
3D |
| A1 |
Instrument cluster |
14A |
| A2 |
Radio |
3E |
| A2 |
Radio |
5E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
19F |
| A2/56 |
Radio with auto pilot system |
8E |
| A2/91 |
Bluetooth antenna |
11K |
| A28/11 |
Multifunction antenna |
21J |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
15F |
| A34/15 |
Mobile phone holder |
15L |
| A34/7 |
Bluetooth module |
14K |
| A40/3 |
COMAND control unit |
11E |
| A40/8 |
Audio/COMAND display |
8A |
| A40/9 |
Audio/COMAND control panel |
5A |
| CAN A |
Telematics CAN |
6C |
| CAN B |
Interior CAN |
11B |
| CAN E |
Chassis CAN |
18B |
| Code 359 |
TELEAID emergency call system |
17J |
| Code 386 |
Mobile phone |
14J |
| Code 386 |
Mobile phone |
14E |
| Code 386 |
Mobile phone |
21H |
| Code 389 |
Mobile phone preinstallation with universal interface, USA/Canada |
14J |
| Code 389 |
Mobile phone preinstallation with universal interface, USA/Canada |
21J |
| Code 510 |
Audio 20 with CD changer |
4D |
| Code 511 |
Audio 50 APS incl. DVD changer |
7D |
| Code 511 |
Audio 50 APS incl. DVD changer |
23H |
| Code 512 |
COMAND APS with DVD changer |
10D |
| Code 512 |
COMAND APS with DVD changer |
23H |
| Code 523 |
Audio 20 radio |
4E |
| Code 523 |
Audio 20 radio |
2E |
| Code 525 |
Audio 50 APS radio (CD) |
7E |
| Code 527 |
COMAND APS |
10E |
| Code 527 |
COMAND APS |
23H |
| Code 528 |
COMAND with DVD changer |
10E |
| Code 810 |
Sound system |
7J |
| LIN E1 |
Steering LIN |
22D |
| LVDS |
Low voltage differential signal |
9C |
| MOST |
Media Oriented System Transport |
8H |
| N135 |
Steering wheel electronics |
22E |
| N40/3 |
Sound system amplifier control unit |
8J |
| N80 |

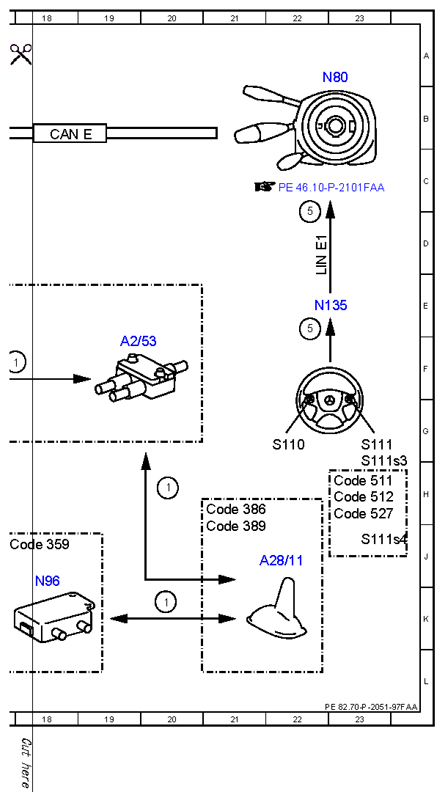

Steering column module control unit |
22A |
| N96 |
Frequency switchover control unit |
18J |
| S110 |
Left multifunction steering wheel button group |
22G |
| S111 |
Right multifunction steering wheel button group |
23G |
| S111s3 |
Accept/terminate phone call button |
23H |
| S111s4 |
Voice control system ON button |
23J |
| U1 |
Valid for USA |
4E |
| U2 |
Valid for all except USA |
2D |
| U579 |
Valid for stationary heater |
14E |
