| 1 |
Circuit 15, status |
13D |
| 10 |
Steering angle sensor, signal |
11E |
| 10 |
Steering angle sensor, signal |
6C |
| 10 |
Steering angle sensor, signal |
22F |
| 10 |
Steering angle sensor, signal |
11L |
| 11 |
Combination switch, status |
6C |
| 11 |
Combination switch, status |
11E |
| 11 |
Combination switch, status |
22F |
| 11 |
Combination switch, status |
11L |
| 12 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
11E |
| 12 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
21F |
| 13 |
Backup lamp switch, status |
14D |
| 14 |
Selector lever position, status |
25G |
| 14 |
Selector lever position, status |
15G |
| 15 |
Reverse gear, status |
21F |
| 16 |
Cornering illumination, actuation |
27D |
| 16 |
Cornering illumination, actuation |
22D |
| 17 |
Active curve illumination, request |
11F |
| 17 |
Active curve illumination, request |
21F |
| 18 |
Active curve illumination actuator motor, actuation |
22C |
| 18 |
Active curve illumination actuator motor, actuation |
28C |
| 19 |
Intelligent Light System, status |
11F |
| 19 |
Intelligent Light System, status |
20F |
| 2 |
Exterior lights switch, status |
14E |
| 20 |
Rear fog light button, status |
15E |
| 20 |
Rear fog light button, status |
20F |
| 21 |
Light distribution actuator motor, actuation |
21C |
| 21 |
Light distribution actuator motor, actuation |
28C |
| 22 |
Automatic high beams, request |
12J |
| 23 |
Ambient brightness, signal |
13G |
| 24 |
High beams, status |
13J |
| 25 |
Automatic high beams, actuation |
19F |
| 25 |
Automatic high beams, actuation |
13H |
| 26 |
Headlamp range adjustment actuator motor, actuation |
28C |
| 26 |
Headlamp range adjustment actuator motor, actuation |
21C |
| 27 |
Automatic high beams, status |
9H |
| 3 |
Light sensor, status |
12D |
| 4 |
Engine running, signal |
14G |
| 4 |
Engine running, signal |
24F |
| 4 |
Engine running, signal |
15L |
| 5 |
Drivetrain operational, signal |
15G |
| 5 |
Drivetrain operational, signal |
23F |
| 5 |
Drivetrain operational, signal |
15L |
| 6 |
Wheel speed, signal |
11E |
| 6 |
Wheel speed, signal |
7J |
| 6 |
Wheel speed, signal |
23F |
| 6 |
Wheel speed, signal |
11K |
| 7 |
Vehicle speed, signal |
11F |
| 7 |
Vehicle speed, signal |
23F |
| 8 |
Low beams, actuation |
19D |
| 8 |
Low beams, actuation |
31D |
| 9 |
Xenon bulb with integrated ignition module, actuation |
22B |
| 9 |
Xenon bulb with integrated ignition module, actuation |
28B |
| A1 |
Instrument cluster |
8H |
| A1p13 |
Multifunction display |
10H |
| A1p7 |
Travel distance display |
7H |
| A40/11 |
Multifunction camera |
12K |
| B38/1 |
Light sensor |
10B |
| B38/2 |
Rain/light sensor |
10C |
| CAN B |
Interior CAN |
8G |
| CAN B |
Interior CAN |
13D |
| CAN C |
Drive train CAN |
26G |
| CAN E |
Chassis CAN |
9F |
| CAN E |
Chassis CAN |
22G |
| CAN E |
Chassis CAN |
9E |
| CAN E |
Chassis CAN |
6H |
| CAN E |
Chassis CAN |
4H |
| CAN E |
Chassis CAN |
2H |
| CAN E |
Chassis CAN |
13H |
| CAN E |
Chassis CAN |
10J |
| CAN E |
Chassis CAN |
22L |
| CAN G |
Front end CAN |
15F |
| CAN G |
Front end CAN |
20F |
| Code 423 |
5-speed automatic transmission |
27H |
| Code 427 |
7-speed automatic transmission |
27J |
| Code 442 |
Comfort multifunction steering wheel |
9G |
| Code 608 |
Adaptive Highbeam Assist |
12J |
| E1 |
Left front lamp unit |
26A |
| E1e10 |
Left xenon bulb with integrated ignition module |
27B |
| E1e9 |
Left cornering illumination |
27D |
| E1m1 |
Left headlamp range adjustment actuator motor |
27C |
| E1m2 |
Left active curve illumination actuator motor |
27C |
| E1m3 |
Left light distribution actuator motor |
27C |
| E1n4 |
Left xenon light power supply module |
30B |
| E2 |
Right front lamp unit |
23A |
| E2e10 |
Right xenon bulb with integrated ignition module |
22B |
| E2e9 |
Right cornering illumination |
22D |
| E2m1 |
Right headlamp range adjustment actuator motor |
22C |
| E2m2 |
Right active curve illumination actuator motor |
22C |
| E2m3 |
Right light distribution actuator motor |
22C |
| E2n4 |
Right xenon light power supply module |
19B |
| LIN 2 |
Wiper/inside rearview mirror LIN |
11C |
| LIN G1 |
Left headlamp LIN |
26E |
| LIN G2 |
Right headlamp LIN |
23E |
| N10/1 |
Front SAM control unit with fuse and relay module |
13E |
| N15/5 |
Electronic selector lever module control unit |
28J |
| N3/10 |
ME-SFI [ME] control unit |
25H |
| N3/9 |
CDI control unit |
22H |
| N30/4 |
Electronic Stability Program control unit |
5E |
| N49 |
Steering angle sensor |
5D |

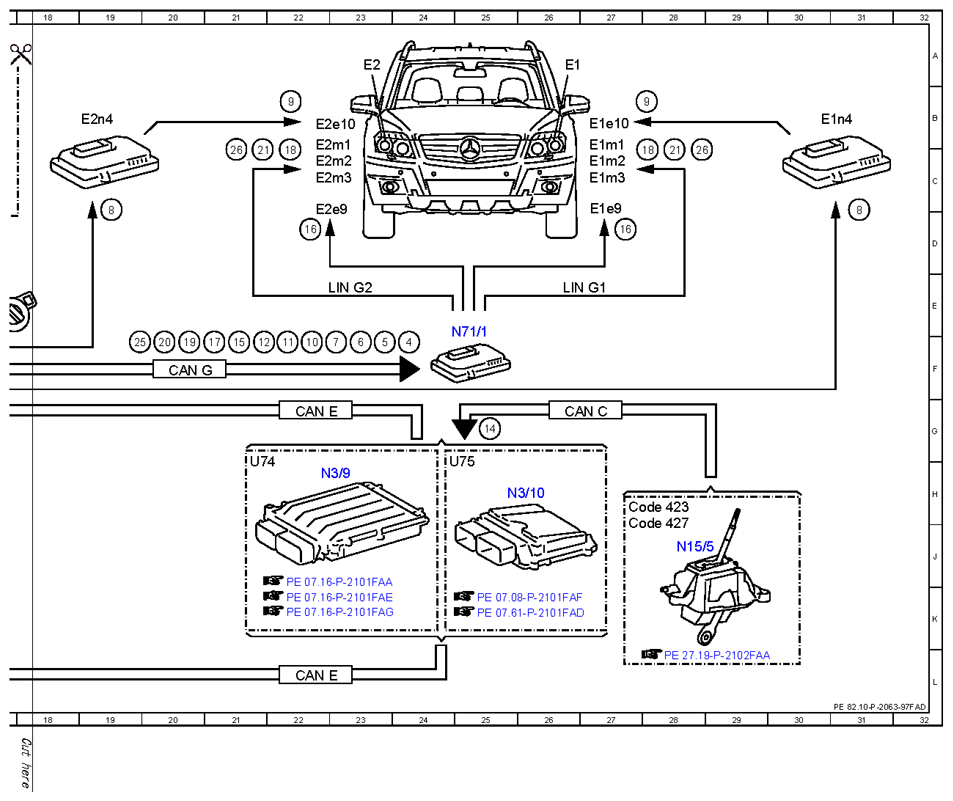

| N71/1 |
Headlamp control unit |
25E |
| N73 |
Electronic ignition switch control unit |
13A |
| N80 |
Steering column module control unit |
7B |
| S1 |
Exterior lights switch |
17E |
| S16/2 |
Backup lamp switch |
17B |
| S1s10 |
Rear fog light button |
16E |
| S4 |
Combination switch |
5B |
| U195 |
Valid for rain/light sensor |
9C |
| U224 |
Valid without rain sensor |
9B |
| U24 |
Valid for manual transmission |
15A |
| U361 |
Not valid for comfort multifunction steering wheel |
7G |
| U74 |
Valid for diesel engines |
21H |
| U75 |
Valid for gasoline engines |
24H |
