| 1 |
"Night", signal |
9D |
| 10 |
Vehicle speed, signal |
11D |
| 11 |
Door rotary tumbler switch, status |
6K |
| 11 |
Door rotary tumbler switch, status |
9F |
| 11 |
Door rotary tumbler switch, status |
12F |
| 11 |
Door rotary tumbler switch, status |
25K |
| 12 |
Exit and warning lamp, request |
5H |
| 12 |
Exit and warning lamp, request |
5D |
| 13 |
Exit and warning lamp, actuation |
3K |
| 13 |
Exit and warning lamp, actuation |
3B |
| 14 |
Trunk lid rotary tumbler switch, status |
21K |
| 14 |
Trunk lid rotary tumbler switch, status |
13F |
| 15 |
Tailgate rotary tumbler switch, status |
13F |
| 15 |
Tailgate rotary tumbler switch, status |
21K |
| 16 |
Trunk illumination, request |
23J |
| 17 |
Trunk illumination, actuation |
21H |
| 18 |
Ambient lamp, request |
23H |
| 19 |
Ambient lamp, actuation |
25H |
| 2 |
Central locking (CL[ZV]), status |
10G |
| 3 |
Circuit 15, status |
10H |
| 4 |
Crash, signal |
12G |
| 5 |
ATA [EDW] alarm, signal |
12F |
| 6 |
Interior lamp, request |
26E |
| 7 |
Interior lamp, actuation |
13D |
| 7 |
Interior lamp, actuation |
17H |
| 7 |
Interior lamp, actuation |
20C |
| 7 |
Interior lamp, actuation |
21C |
| 8 |
Automatic function switch, status |
12E |
| 9 |
OFF delay time, status |
11D |

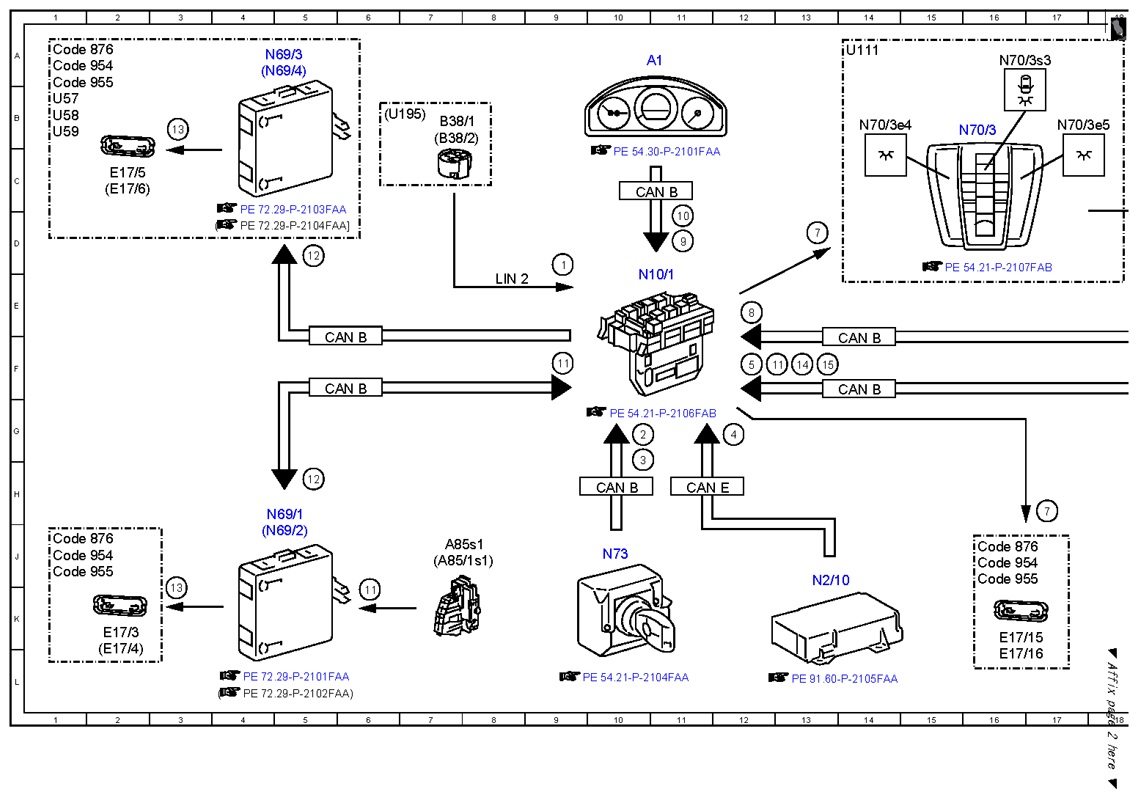

| A1 |
Instrument cluster |
10A |
| A85/1s1 |
Right front door rotary tumbler switch |
7J |
| A85/3 |
Left rear door lock |
27K |
| A85/3s1 |
Left rear door rotary tumbler switch |
27K |
| A85/4 |
Right rear door lock |
27K |
| A85/4s1 |
Right rear door rotary tumbler switch |
27K |
| A85s1 |
Left front door rotary tumbler switch |
7J |
| B38/1 |
Light sensor |
7B |
| B38/2 |
Rain/light sensor |
7B |
| CAN B |
Interior CAN |
6F |
| CAN B |
Interior CAN |
10H |
| CAN B |
Interior CAN |
14F |
| CAN B |
Interior CAN |
6F |
| CAN B |
Interior CAN |
10C |
| CAN B |
Interior CAN |
14F |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
20F |
| CAN E |
Chassis CAN |
11H |
| Code 414 |
Electric glass tilting/sliding roof |
23A |
| Code 876 |
Interior lights package |
16J |
| Code 876 |
Interior lights package |
1A |
| Code 876 |
Interior lights package |
1J |
| Code 954 |
AVANTGARDE |
16J |
| Code 954 |
AVANTGARDE |
1A |
| Code 954 |
AVANTGARDE |
1J |
| Code 955 |
ELEGANCE |
16J |
| Code 955 |
ELEGANCE |
1B |
| Code 955 |
ELEGANCE |
1J |

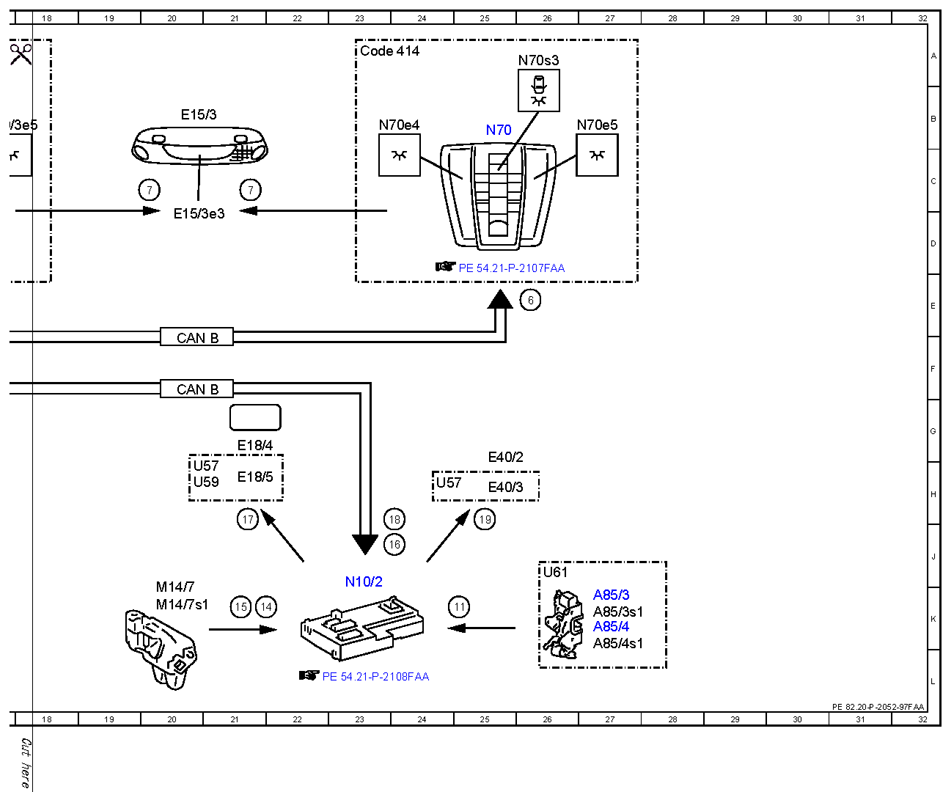

| E15/3 |
Rear dome lamp |
20B |
| E15/3e3 |
Rear interior lamp |
20D |
| E17/15 |
Right front footwell lamp |
16K |
| E17/16 |
Left front footwell lamp |
16L |
| E17/3 |
Left front door exit and warning lamp |
2K |
| E17/4 |
Right front door exit and warning lamp |
2L |
| E17/5 |
Left rear door exit and warning lamp |
2C |
| E17/6 |
Right rear door exit and warning lamp |
2C |
| E18/4 |
Right luggage compartment lamp |
21G |
| E18/5 |
Left luggage compartment lamp |
21H |
| E40/2 |
Umfeldleuchte und Warnleuchte Heckklappe links |
25H |
| E40/3 |
Umfeldleuchte und Warnleuchte Heckklappe rechts |
25H |
| LIN 2 |
Wiper/inside rearview mirror LIN |
8E |
| M14/7 |
Zentralverriegelungsmotor Heckklappe |
20K |
| M14/7s1 |
Schalter Drehfalle Heckklappe |
20K |
| N10/1 |
Front SAM control unit with fuse and relay module |
10E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
23J |
| N2/10 |
Supplemental restraint system control unit |
13J |
| N69/1 |
Left front door control unit |
5H |
| N69/2 |
Right front door control unit |
4J |
| N69/3 |
Left rear door control unit |
5A |
| N69/4 |
Right rear door control unit |
4A |
| N70 |
Overhead control panel control unit |
25B |
| N70/3 |
Overhead control panel electronics |
15B |
| N70/3e4 |
Left front interior lamp |
14B |
| N70/3e5 |
Right front interior lamp |
17B |
| N70/3s3 |
Interior lamp automatic function switch |
16A |
| N70e4 |
Left front interior lamp |
23B |
| N70e5 |
Right front interior lamp |
27B |
| N70s3 |
Interior lamp automatic function switch |
26A |
| N73 |
Electronic ignition switch control unit |
10J |
| U111 |
Valid for overhead control panel without CAN |
14A |
| U195 |
Valid for rain/light sensor |
6B |
| U57 |
Valid for model 204.2 |
24H |
| U57 |
Valid for model 204.2 |
20H |
| U57 |
Valid for model 204.2 |
1B |
| U58 |
Valid for model 204.0 |
1B |
| U59 |
Valid for model 204.9 |
20H |
| U59 |
Valid for model 204.9 |
1B |
| U61 |
Not valid for model 204.3 |
26J |
