Navigation 20 electrical connector, component description - GF82.60-P-5003AZ

MODEL 204 Navigation 20 retrofit (Universal Media Interface)

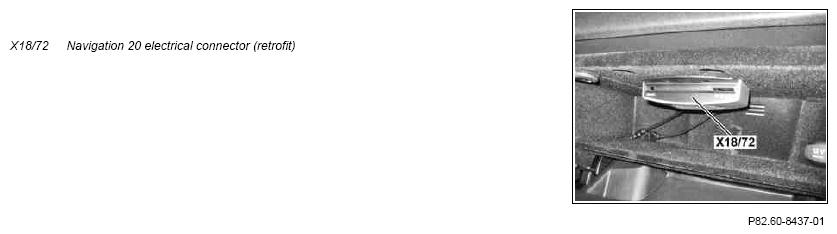

Shown with docking station

Fig 1: Identifying Navigation 20 Electrical Connectors - Shown On Docking Station

Courtesy of MERCEDES-BENZ USA

Location

The navigation 20 electrical connector is located in the glove compartment.

The navigation 20 electrical connector is installed in two variants: As a docking station (in generation 1) or as a connecting cable (in generation 2). In the docking station variant, the glove compartment lamp (E13/1) is integrated into the navigation 20 electrical connector.

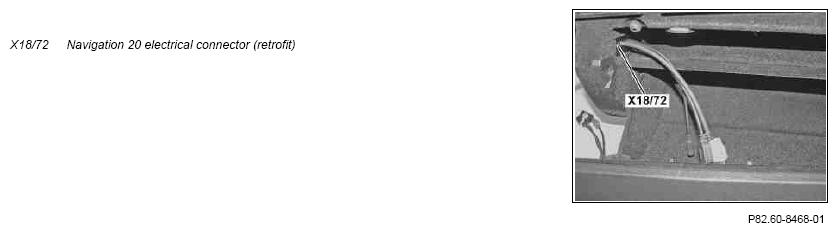

Shown with connecting cable

Fig 2: Identifying Navigation 20 Electrical Connectors - Shown On Connecting Cable

Courtesy of MERCEDES-BENZ USA

Task

Relaying signals

Power supply from navigation 20 control unit (retrofit) (N125/2) for connected iPods or Universal Serial Bus (USB) devices
Control and operating signals from the navigation 20 control unit for connected iPods or USB devices
Audio signals and data from the portable terminals (iPod, USB or AUX) that are connected in each case via a direct line to the navigation 20 control unit

The AUX jack electrical connector (X39/45) (except code (518) Media interface) is not operational in vehicles with navigation 20.

The media interface electrical connector (X18/70) (with code (518) Media interface) is not operational in vehicles with navigation 20 up to 28.2.2011.

In vehicles with navigation 20 and code (518) Media interface, as of 1.3.2011, the navigation 20 electrical connector is installed as a USB connector in the glove compartment, but it is exclusively used for service purposes (software and map data update).
