Media interface control unit, component description - GF82.60-P-5000CE
MODEL 204.0/2 with CODE (518) Media Interface as of model year 2009/YoM 08,/YoM 12
MODEL 204.3 with CODE (518) Media Interface up to model year 2013/YoM 12
MODEL 204.9 with CODE (518) Media Interface up to Model Year 2013/model refinement package 12

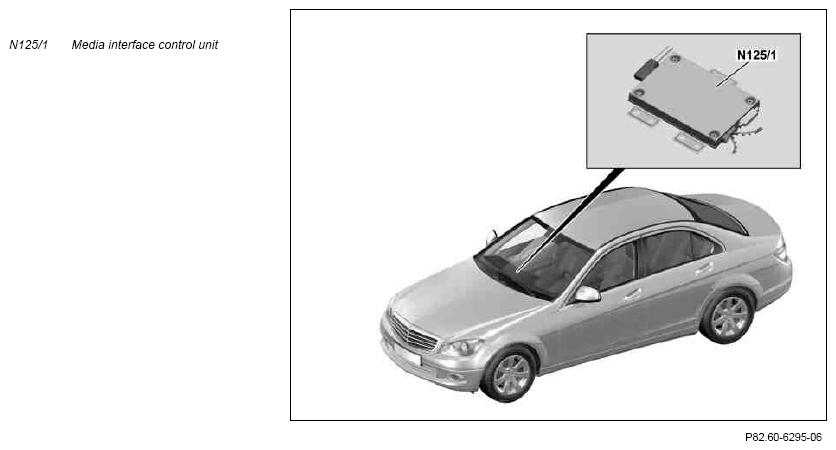

Shown on model 204.0 up to 28.2.2011
Location
The media interface control unit is located behind the glove compartment.

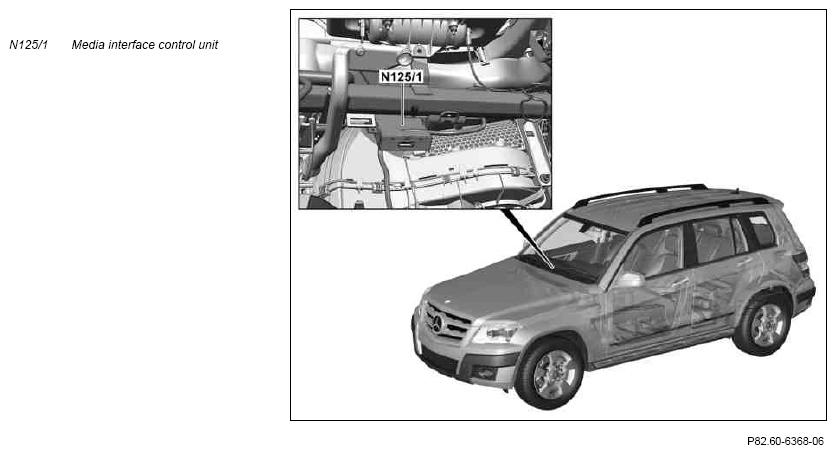

Shown on model 204.9 up to 31.5.2011
Location
The Media Interface control unit is located behind the glove compartment on the crossmember.
Task
- Receive signals
- Transmit signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply to terminal 31 and terminal 30g via connectors G+H
- Audio signals and data via the media interface electrical connector (X18/70) and Mitsumi CAM62 connector
- Electronic wake-up for MOST over G+H connector
MOST
- Control signals from the audio equipment via the Media Oriented System Transport (MOST) 2+0 connector
Transmit signals
- Direct lines
- MOST
Direct lines
- Power supply to the media interface electrical connector in general and via the Mitsumi CAM62 connector for USB
- Control signals to media interface electrical connector via the Mitsumi CAM62 connector
MOST
- Audio signals and data from the audio equipment over Media Oriented System Transport (MOST) 2+0 connector
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Media interface control unit | ||||
| Power supply | VV | 12 | Operating voltage (UB ) | |
| Voltage limits | VV VV |
>9 < 16 |
Minimum (UBmin
) Maximum (UBmax ) |
|
| Power consumption | mA mA A mA |
300 300 1.5 0.1 |
Ready (IB
) Action, typical (IAction ) Maximum (IAction ) Quiescent current |
|
| Reverse polarity protection | Yes, in range -9 V to -16 V | |||
| Flash capability/coding capability | No/DC-compatible |
| Wiring diagram for media interface control unit | N125/1 | PE82.60-P-2105-97FAA |
