Component description for sound system amplifier control unit - GF82.62-P-5010CE
MODEL 204.0/2 with CODE 810 (Sound system)/YoM 08
MODEL 204.3/9 with CODE 810 (Sound system)
Shown with model 204.0
Location

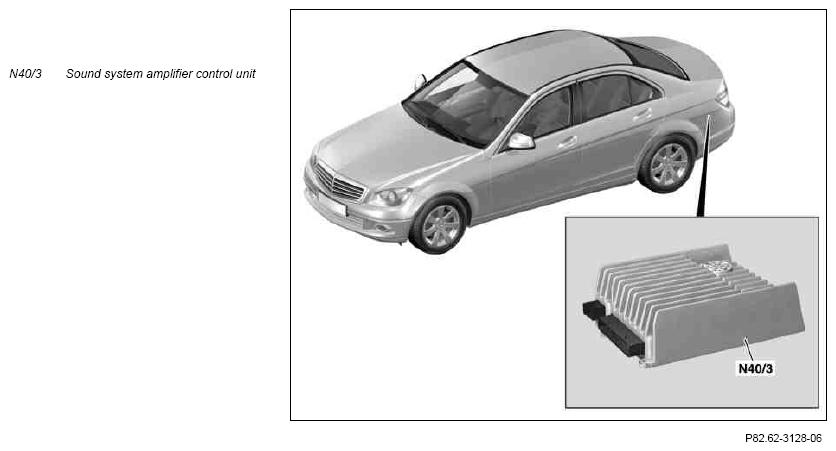

The sound system amplifier control unit is located on a bracket in the trunk on the left sidewall behind the paneling.
Tasks
- Receive signals
- Decoding signals
- Supporting and amplifying signals
- Transmitting signals
Receive signals
- Media Oriented System Transport (MOST)
- Direct lines
MOST
The sound system amplifier control unit is a MOST subscriber and receives audio signals from the following components:
- Audio unit
- Digital Audio Broadcasting control unit (N87/3) (with CODE 537 (Digital radio))
- Satellite Digital Audio Radio (SDAR) control unit (N87/5) (with CODE 536 (SIRIUS satellite radio) and CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer), with CODE 536 (SIRIUS satellite radio) and CODE 528 (COMAND incl. DVD changer) or CODE 512 (COMAND APS with DVD changer), up to 31.05.2009 and as of 01.06.2010 up to 30.11.2014) or CODE 527 (COMAND APS with single DVD drive (with navigation), as of 01.12.2014)
- SDAR/high definition tuner control unit (N87/8) (with CODE 536 (SIRIUS satellite radio) and CODE 528 (COMAND incl. DVD changer) or CODE 512 (COMAND APS with DVD changer), as of 01.06.2009 up to 31.05.2010)
- Media interface control unit (N125/1) (with CODE 518 (Media Interface))
Direct lines
- Telematic Alarm Identification on Demand (emergency call system) (TELE AID)-MUTE (with CODE 359 (TELEAID emergency call system) or with CODE 348 (Emergency call/assist system))
- Visual and electrical wake-up
Decoding signals
- Decoding of Digital Transmission Content Protection (DTCP) copy-protected audio signals based on the latest digital signal processing (DSP) technology
DSP means that for the audio range, audio tracks are processed using mathematical algorithms with the objective of improving the acoustic sound characteristics.
Supporting and amplifying signals
- Supporting surround sound (Logic 7)
- Supporting 2 stereo entertainment channels and 3 announcement channels (e.g. for voice output of navigation instructions, etc.)
- Amplification of decoded audio signals
Transmitting signals
Direct lines
- Line Out (+ and -) for rear bass speaker amplifier (N40/9) (model 204.9)
- Remote for rear woofer amplifier (model 204.9)
- Output of signal tones, digital multiple channel output and output of decoded, volume-adapted and amplified audio signals to the following speakers:
- Left front door speaker (H4/1)
- Right front door speaker (H4/2)
- Left rear door speaker (H4/3)
- Right rear door speaker (H4/4)
- Center instrument panel speaker (H4/27)
- Bass speaker (H4/29), model 204.0/2/3
- Left rear surround speaker (H4/54)
- Right rear surround speaker (H4/57)
Function
The sound system amplifier control unit is activated via the "audio equipment". The "Audio unit" provides all menus for user guidance. Moreover, the following subfunctions are available:
- Diagnosis
- Software download
Diagnosis
The diagnosis of the sound system amplifier control unit is performed using the Keyword 2000 protocol. All other control units in MOST are also diagnosed via this interface at the same time!
The sound system amplifier control unit can be configured via "Common Vehicle Information".
Software download
The update is carried out via the "Audio unit" drive using a CD or DVD.
| Sound amplifier control unit wiring diagram | PE82.62-P-2101-97FAA |
