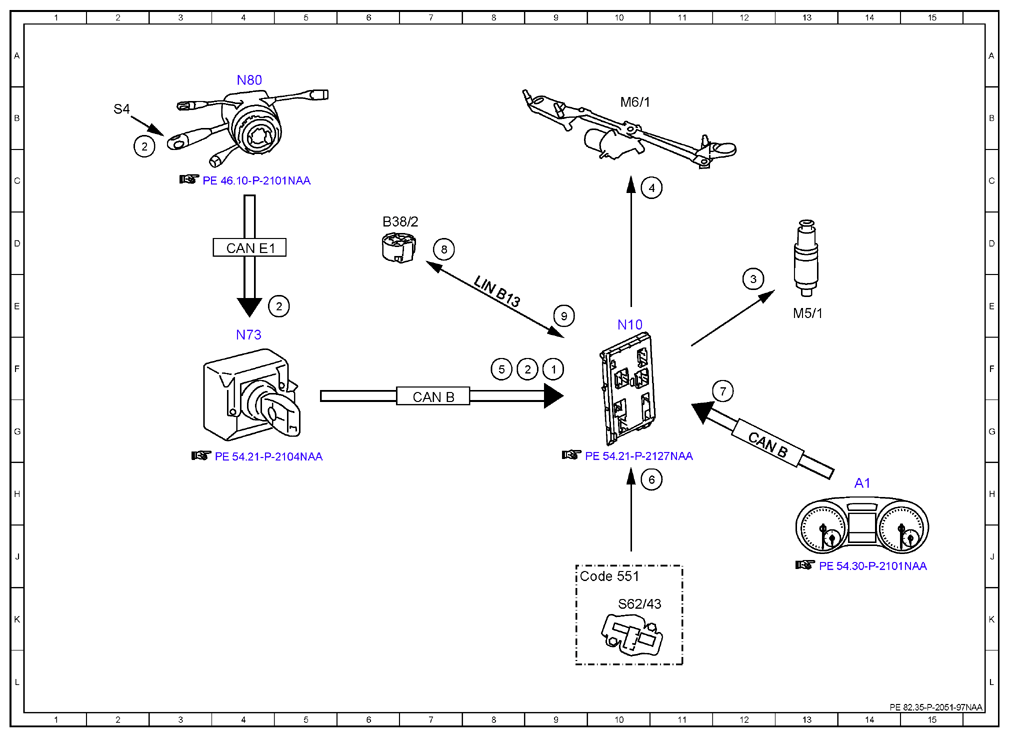

| 1 |
Circuit 15, status |
9F |
| 2 |
Combination switch, status |
5E |
| 2 |
Combination switch, status |
5E |
| 2 |
Combination switch, status |
5E |
| 3 |
Windshield washer system pump, actuation |
12E |
| 4 |
Wiper motor, actuation |
10C |
| 5 |
Circuit 50, status |
8F |
| 6 |
Engine hood contact switch, status |
10H |
| 7 |
Vehicle speed, signal |
12F |
| 8 |
Re-wipe, status |
7D |
| 9 |
Rain/light sensor, status |
9E |
| A1 |
Instrument cluster |
14H |
| B38/2 |
Rain/light sensor |
6D |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
12G |
| CAN E1 |
Chassis CAN 1 |
4D |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
9J |
| LIN B13 |
Roof LIN |
8E |
| M5/1 |
Windshield washer system pump |
13E |
| M6/1 |
Wiper motor |
10B |
| N10 |
SAM control unit |
10E |
| N73 |
Electronic ignition switch control unit |
4F |
| N80 |
Steering column module control unit |
4A |
| S4 |
Combination switch |
2B |
| S62/43 |
Left engine hood contact switch |
10K |
