| 1 |
Telephone, signal |
7H |
| 1 |
Telephone, signal |
11D |
| 1 |
Telephone, signal |
14H |
| 1 |
Telephone, signal |
18H |
| 1 |
Telephone, signal |
16F |
| 2 |
Audio/COMAND controller, request |
4C |
| 3 |
Audio/COMAND display, signal |
7C |
| 4 |
Sound system amplifier, actuation |
5H |
| 5 |
Multifunction steering wheel button group, signal |
8C |
| 5 |
Multifunction steering wheel button group, signal |
19G |
| 5 |
Multifunction steering wheel button group, signal |
15B |
| 5 |
Multifunction steering wheel button group, signal |
21D |
| 5 |
Multifunction steering wheel button group, signal |
21B |
| 6 |
Instrument cluster, message |
12B |
| 7 |
Voice input, signal |
2C |
| 8 |
Bluetooth®, signal |
9J |
| 9 |
Switch-on request, signal |
12L |
| 9 |
Switch-on request, signal |
10E |

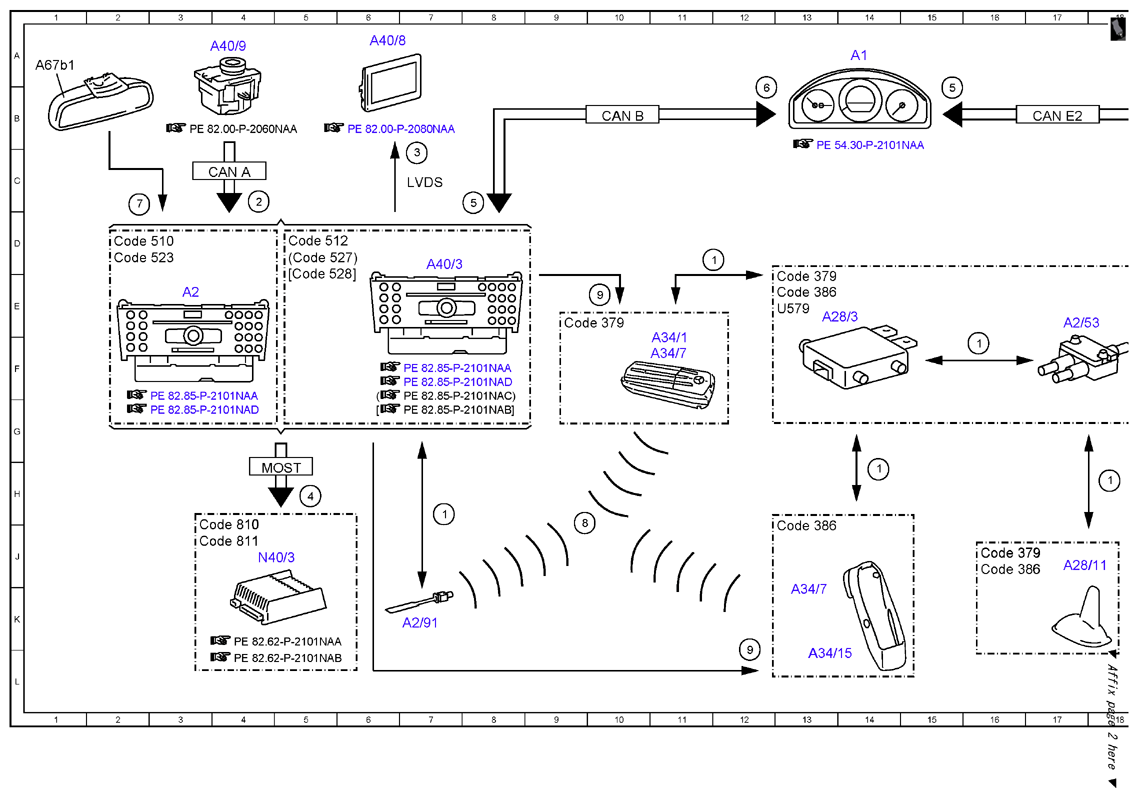

| A1 |
Instrument cluster |
14A |
| A2 |
Radio |
3E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
17E |
| A2/91 |
Bluetooth® antenna |
7K |
| A28/11 |
Multifunction antenna |
17J |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
13E |
| A34/1 |
Telephone module with Bluetooth® (SAP profile) |
11F |
| A34/15 |
Mobile phone holder |
13L |
| A34/7 |
Bluetooth® module |
11F |
| A34/7 |
Bluetooth® module |
13K |
| A40/3 |
COMAND control unit |
7D |
| A40/8 |
Audio/COMAND display |
6A |
| A40/9 |
Audio/COMAND control panel |
3A |
| A67b1 |
Hands-free system microphone group |
1A |
| CAN A |
Telematics CAN |
4C |
| CAN B |
Interior CAN |
10B |
| CAN E1 |
Chassis CAN 1 |
23C |
| CAN E2 |
Chassis CAN 2 |
17B |
| Code 379 |
Telephone module with Bluetooth SAP |
9E |
| Code 379 |
Telephone module with Bluetooth SAP |
16J |
| Code 379 |
Telephone module with Bluetooth SAP |
13E |
| Code 386 |
Comfort telephony |
16J |
| Code 386 |
Comfort telephony |
13J |
| Code 386 |
Comfort telephony |
13E |
| Code 510 |
Audio 20 with CD changer |
2D |
| Code 512 |
COMAND APS with DVD changer |
5D |
| Code 512 |
COMAND APS with DVD changer |
20J |
| Code 523 |
Audio 20 radio |
2D |
| Code 527 |
COMAND APS (with navigation) |
5D |
| Code 527 |
COMAND APS (with navigation) |
20K |
| Code 528 |
COMAND with DVD changer |
5E |
| Code 810 |
Sound system |
3J |
| Code 811 |
Extended sound system |
3J |
| LIN E1 |
Steering LIN |
19E |
| LVDS |
Low voltage differential signal |
7C |
| MOST |
Media Oriented System Transport |
5H |

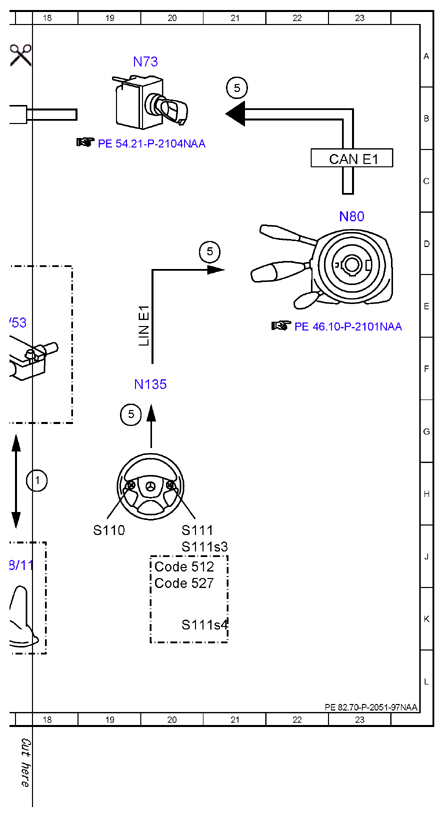

| N135 |
Steering wheel electronics |
19F |
| N40/3 |
Sound system amplifier control unit |
4J |
| N73 |
Electronic ignition switch control unit |
19A |
| N80 |
Steering column module control unit |
23D |
| S110 |
Left multifunction steering wheel button group |
19J |
| S111 |
Right multifunction steering wheel button group |
20J |
| S111s3 |
Accept/terminate phone call button |
20J |
| S111s4 |
Voice control system ON button |
20K |
| U579 |
Valid for stationary heater |
13E |
