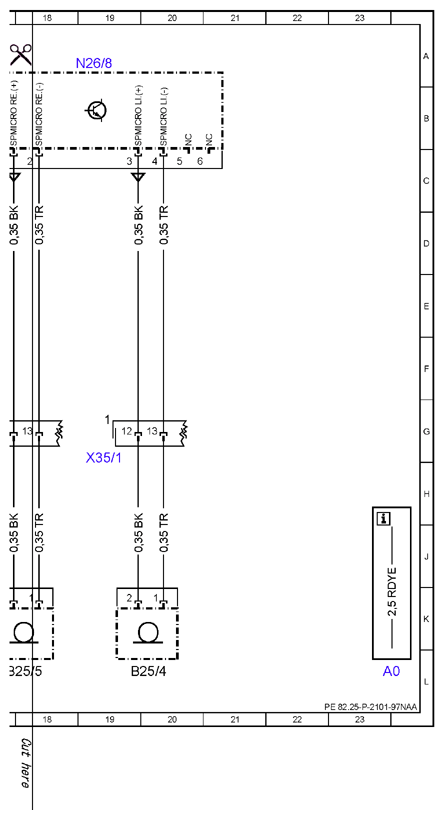

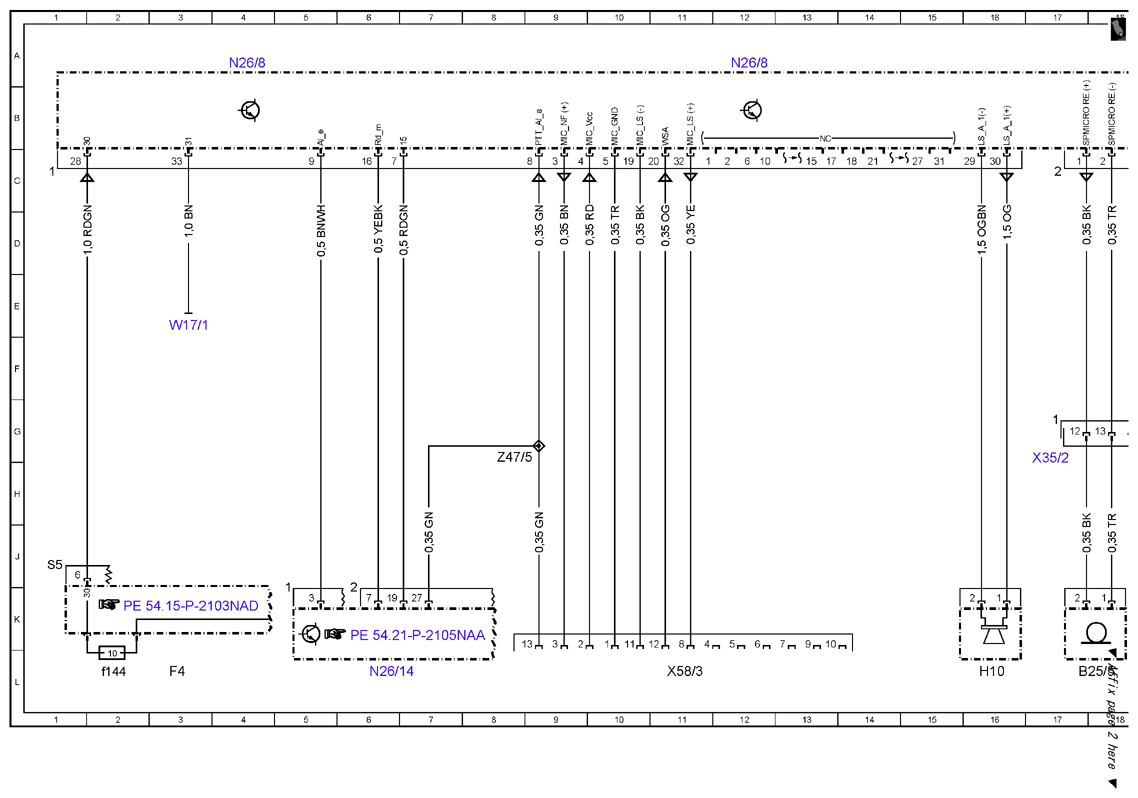

| A0 |
Color code key |
23L |
| B25/4 |
Left outside mirror PAS [GAS] microphone |
19L |
| B25/5 |
Right outside mirror PAS [GAS] microphone |
17L |
| F4 |
Rear fuse box |
3L |
| F4f144 |
Fuse 144 |
2L |
| H10 |
Outside PAS [GAS] speaker |
16L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
6L |
| N26/8 |
PAS (GAS) control unit |
12A |
| N26/8 |
PAS (GAS) control unit |
4A |
| N26/8 |
PAS (GAS) control unit |
19A |
| W17/1 |
Left rear seat ground point |
3E |
| X35/1 |
Left front door electrical connector |
19H |
| X35/2 |
Right front door electrical connector |
17H |
| X58/3 |
Microphone electrical connector |
11L |
| Z47/5 |
Alarm off connector sleeve |
8G |
