| 1 |
Circuit 15, status |
14G |
| 2 |
Door rotary tumbler switch, status |
12E |
| 2 |
Door rotary tumbler switch, status |
14E |
| 2 |
Door rotary tumbler switch, status |
14F |
| 2 |
Door rotary tumbler switch, status |
12D |
| 3 |
Central locking, status |
14G |
| 4 |
Ambiance illumination brightness, status |
12F |
| 5 |
Ambience illumination, request |
3E |
| 5 |
Ambience illumination, request |
11B |
| 5 |
Ambience illumination, request |
20H |
| 5 |
Ambience illumination, request |
21E |
| 5 |
Ambience illumination, request |
16B |
| 6 |
Ambience illumination, actuation |
7B |
| 6 |
Ambience illumination, actuation |
18H |
| 6 |
Ambience illumination, actuation |
19B |
| 6 |
Ambience illumination, actuation |
23C |
| 6 |
Ambience illumination, actuation |
3C |
| 7 |
Footwell lamp request |
7G |
| 7 |
Footwell lamp request |
9G |
| 8 |
Footwell lamp, actuation |
11H |
| 8 |
Footwell lamp, actuation |
9K |
| 8 |
Footwell lamp, actuation |
7K |
| A1 |
Instrument cluster |
3G |
| CAN B |
Interior CAN |
13H |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
12C |
| CAN B |
Interior CAN |
18E |
| CAN B |
Interior CAN |
18F |
| CAN B |
Interior CAN |
14C |
| E17/15 |
Right front footwell lamp |
11J |
| E17/16 |
Left front footwell lamp |
11J |
| E17/17 |
Left rear footwell lamp |
9L |
| E17/18 |
Right rear footwell lamp |
6L |
| E17/43 |
Left front door ambiance illumination |
16H |
| E17/44 |
Right front door ambiance illumination |
4C |
| E17/45 |
Left rear door ambiance illumination |
7C |
| E17/46 |
Right rear door ambiance illumination |
22B |

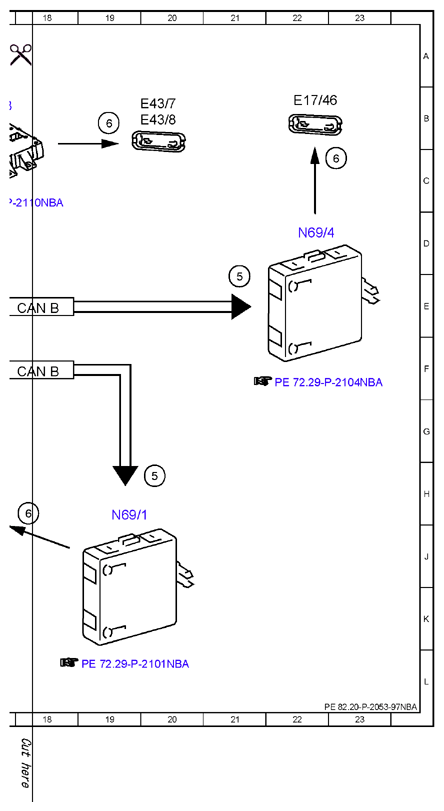

| E43/7 |
Driver-side instrument panel ambiance illumination |
19B |
| E43/8 |
Passenger-side instrument panel ambiance illumination |
19B |

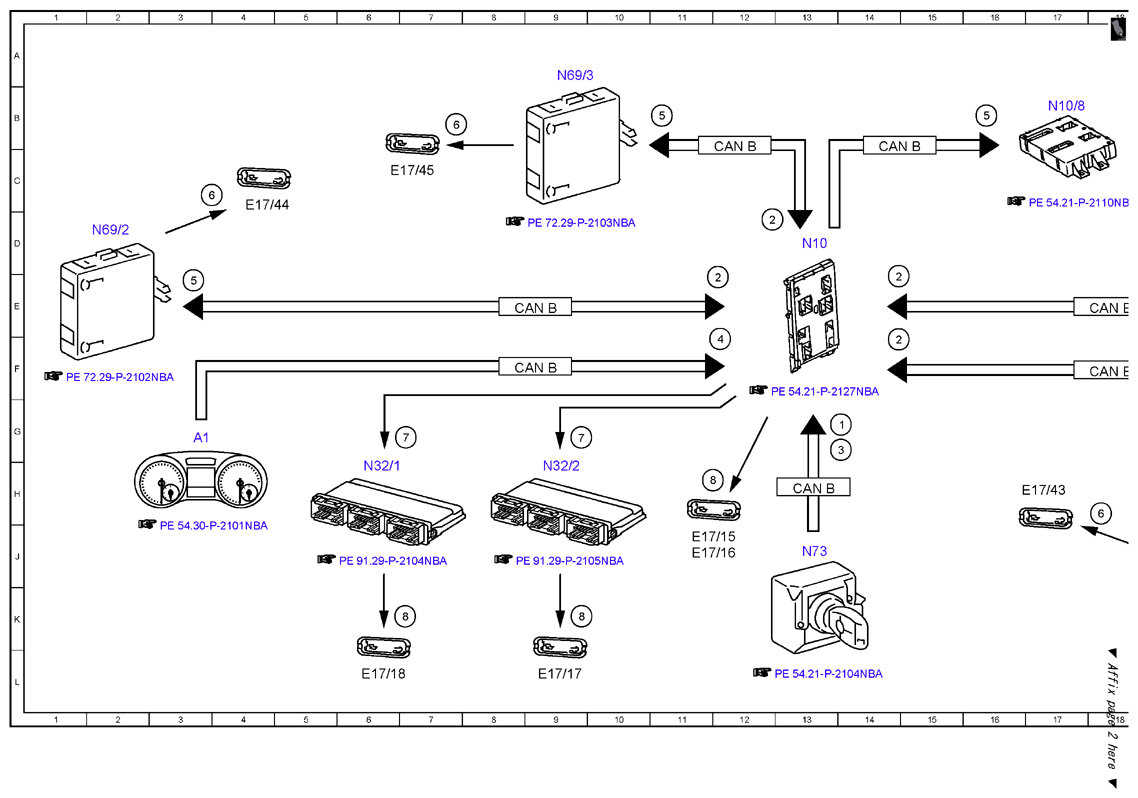

| N10 |
SAM control unit |
13D |
| N10/8 |
Rear control unit |
17B |
| N32/1 |
Driver seat control unit |
6H |
| N32/2 |
Front passenger seat control unit |
9H |
| N69/1 |
Left front door control unit |
19H |
| N69/2 |
Right front door control unit |
2D |
| N69/3 |
Left rear door control unit |
9A |
| N69/4 |
Right rear door control unit |
22D |
| N73 |
Electronic ignition switch control unit |
13J |
