Retrofit Rear Entertainment System - AN82.60-P-0013GQX

MODEL 166.### 1# with CODE 866 (Pre-installation for rear entertainment system) without CODE 498 (Japanese version) without CODE 830 (China version)

Shown on model 166.024

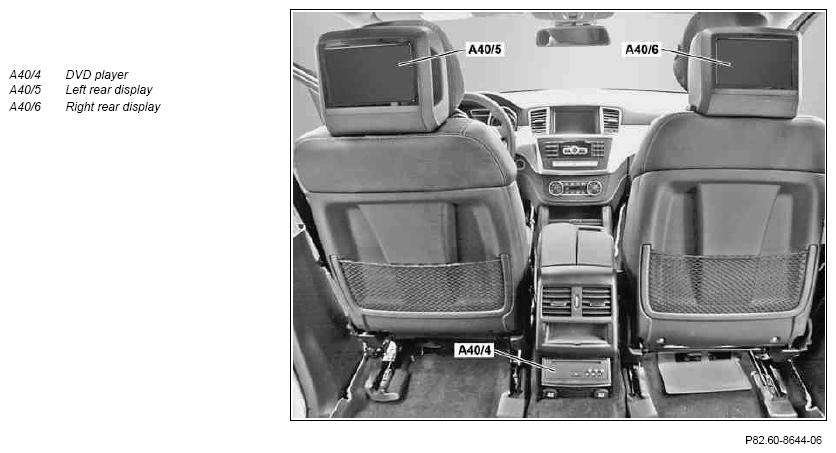

Fig 1: Identifying Retrofit Rear Entertainment System Components - Shown On Model 166.024

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Cut out template and draw on cutout at backrest covers of front seats		AN82.60-P-0013-02GQ
2	Remove head restraint at both front seats
			AR91.16-P-0040GQ
		Head restraints are no longer required.
3	Remove left head restraint guide at both front seats
			AR91.16-P-0050GQ
		Head restraint guides are no longer required.
4	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
5	Remove rear center console
			AR68.20-P-2020GQ
6	Remove center console
			AR68.20-P-2000GQ
7	Remove cover on center console
			AR68.20-P-2350GQ
8	Disassemble cover on center console
			AR68.20-P-2150-01GQ
		Pliers	Fig 3
	Install
9	Install new head restraint guides
			AR91.16-P-0050GQ
10	Install wiring harness for socket for 2nd seat row at right into center console		AN82.00-P-0010-01GQX
		Mounting wedge	Fig 2
11	Assemble cover at center console with parts included in scope of supply
			AR68.20-P-2150-01GQ
12	Install cover on center console
			AR68.20-P-2350GQ
13	Install center console
			AR68.20-P-2000GQ
14	Install rear center console
			AR68.20-P-2020GQ
15	Install left rear display (A40/5) and right rear display (A40/6)		AN82.60-P-0013-02GQ
16	Retrofit DVD player (A40/4)		AN82.60-P-0013-01GQ
17	Delete and enter special equipment in online vehicle data card via VeDoc	Delete:  CODE 866 (Rear entertainment pre-installation) Add:  CODE 864 (Rear entertainment system)
18	Document retrofitted equipment in VeDoc	Attach note "Rear entertainment system retrofitted as per AN82.60-P-0013GQX " under field organization texts to design group 68, 82 and 91.
19	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
20	Carry out variant coding using software calibration number (SCN)	Menu items Audio/COMAND controller/Adaptations/Control unit programming
21	Enter corresponding country code	Menu item Rear audio/video unit/Left and right display
22	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
	Check
23	Check rear entertainment system	Insert DVD into DVD player (A40/4) and check operation of rear entertainment system using remote control included in scope of supply.

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
