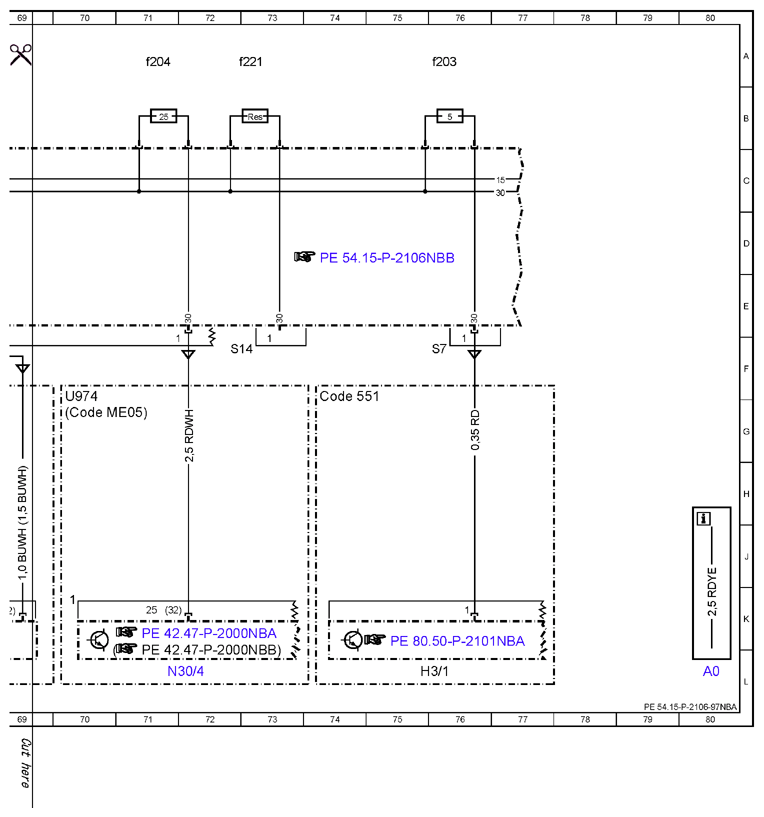

| A0 |
Color code key |
80L |

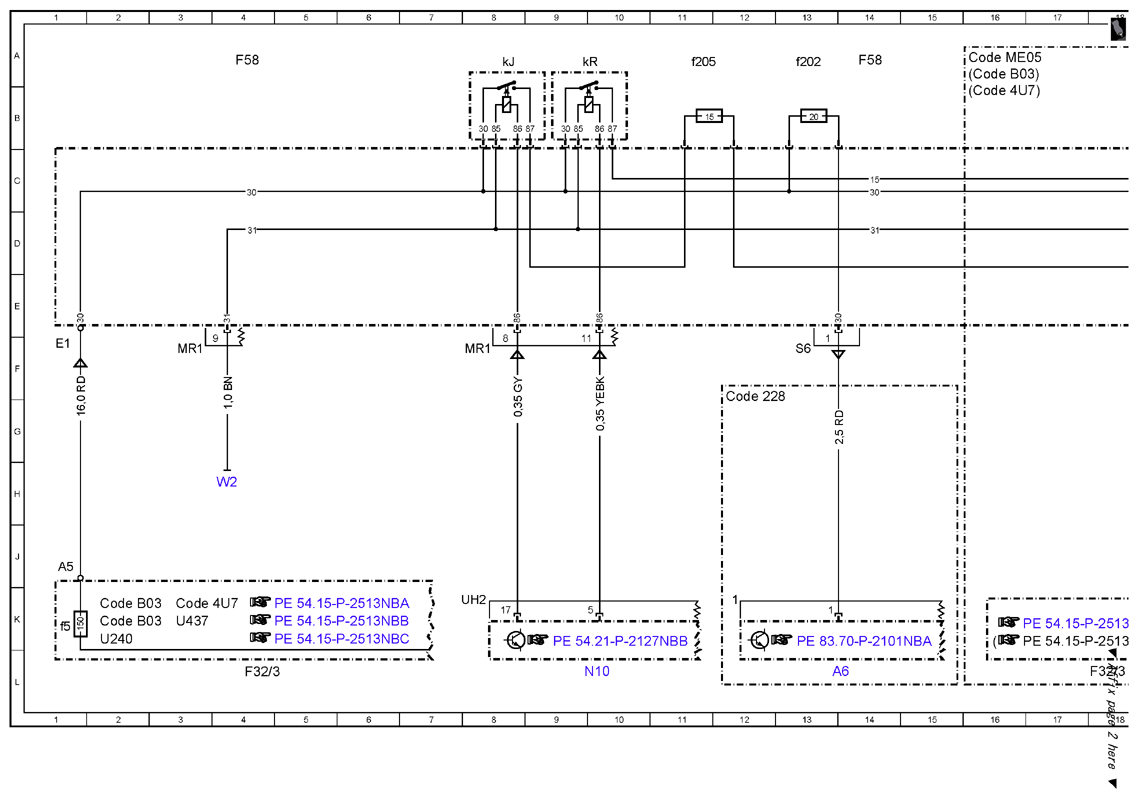

| A6 |
Stationary heater unit |
13L |

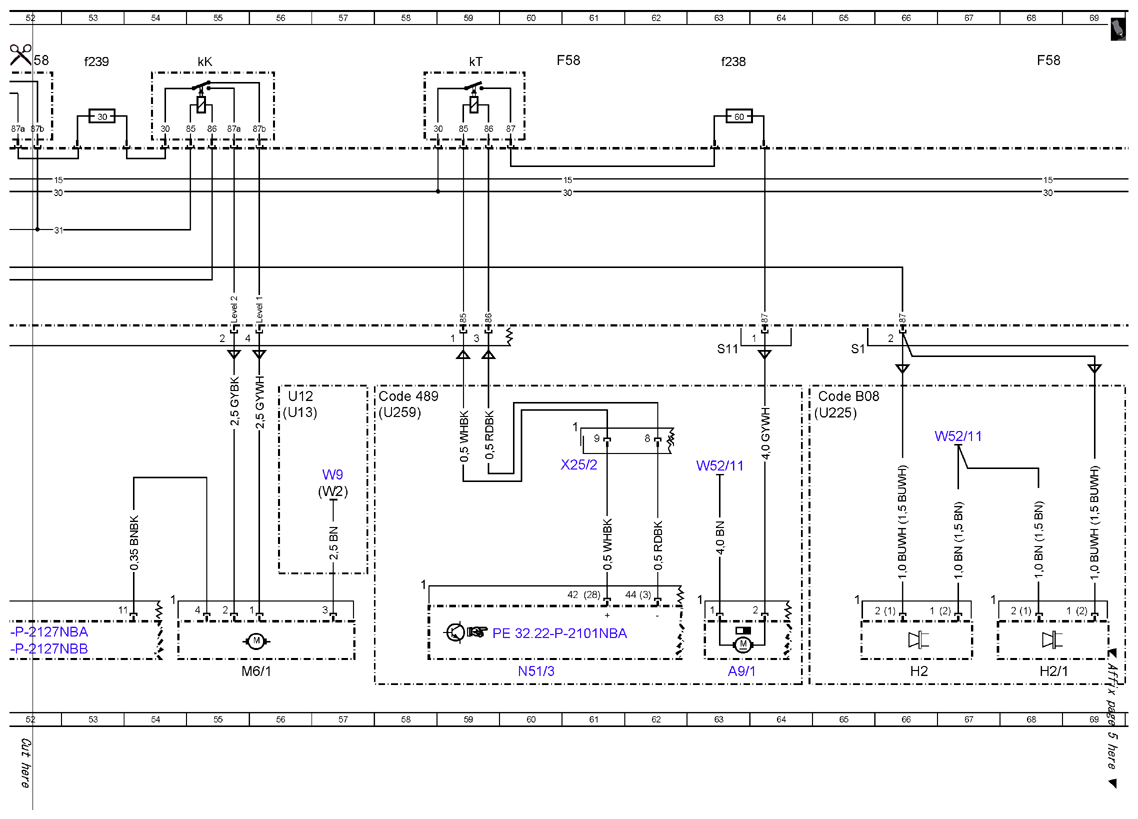

| A9/1 |
AIRMATIC compressor |
63L |
| Code 228 |
Stationary heater |
12G |
| Code 489 |
AIRMATIC |
58G |
| Code 4U7 |
Start/stop voltage dip protection |
3K |
| Code 4U7 |
Start/stop voltage dip protection |
35G |
| Code 4U7 |
Start/stop voltage dip protection |
16B |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
74G |
| Code 580 |
Automatic air conditioning |
44G |
| Code 581 |
Comfort automatic air conditioning |
44G |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
35G |
| Code B03 |
ECO start/stop function |
16A |
| Code B08 |
Horn (Asia) |
65G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
38G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
16A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
70G |
| F32/3 |
Engine compartment prefuse box |
4L |
| F32/3 |
Engine compartment prefuse box |
18L |
| F32/3f3 |
Fuse 3 |
19K |
| F32/3f5 |
Fuse 5 |
1K |
| F58 |
Engine compartment fuse and relay module |
4A |
| F58 |
Engine compartment fuse and relay module |
14A |
| F58 |
Engine compartment fuse and relay module |
21A |
| F58 |
Engine compartment fuse and relay module |
28A |
| F58 |
Engine compartment fuse and relay module |
36A |
| F58 |
Engine compartment fuse and relay module |
44A |
| F58 |
Engine compartment fuse and relay module |
52A |
| F58 |
Engine compartment fuse and relay module |
61A |
| F58 |
Engine compartment fuse and relay module |
68A |
| F58f202 |
Fuse 202 |
13A |
| F58f203 |
Fuse 203 |
76A |
| F58f204 |
Fuse 204 |
71A |
| F58f205 |
Fuse 205 |
11A |
| F58f212 |
Fuse 212 |
27A |
| F58f221 |
Fuse 221 |
73A |
| F58f232 |
Fuse 232 |
42A |
| F58f235 |
Fuse 235 |
48A |

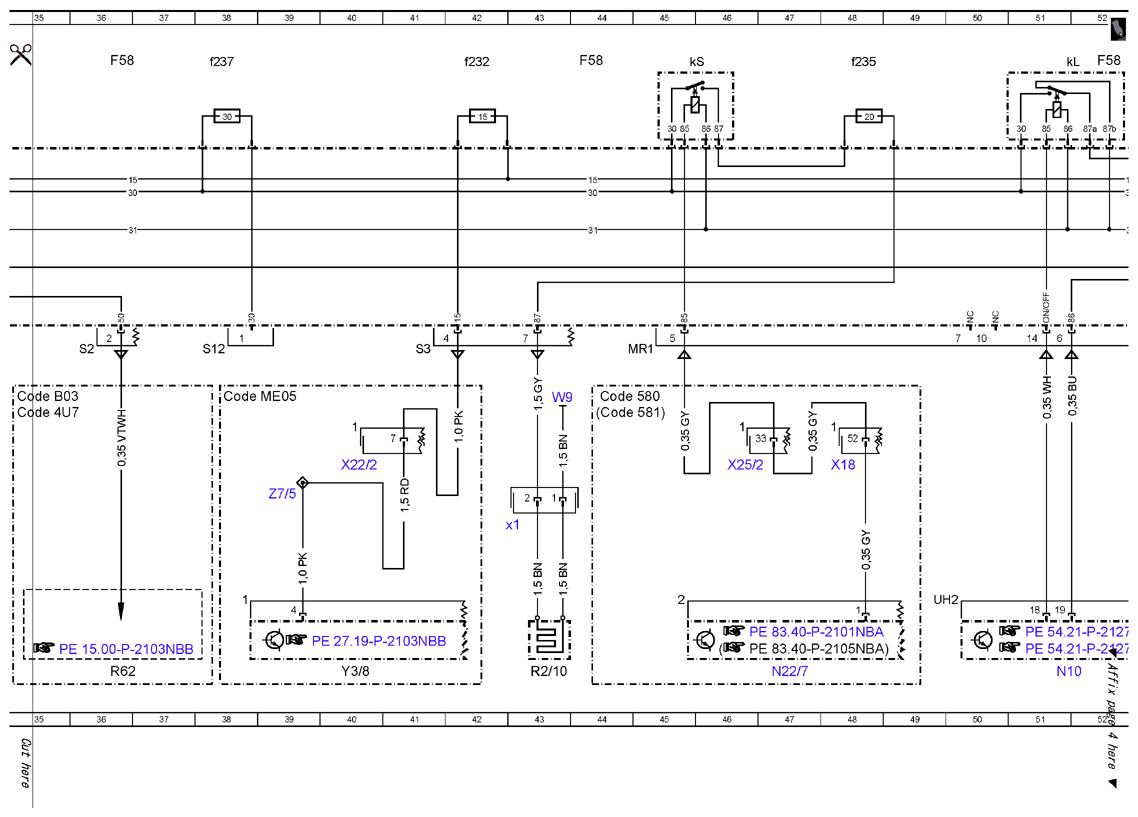

| F58f237 |
Fuse 237 |
38A |
| F58f238 |
Fuse 238 |
63A |
| F58f239 |
Fuse 239 |
53A |

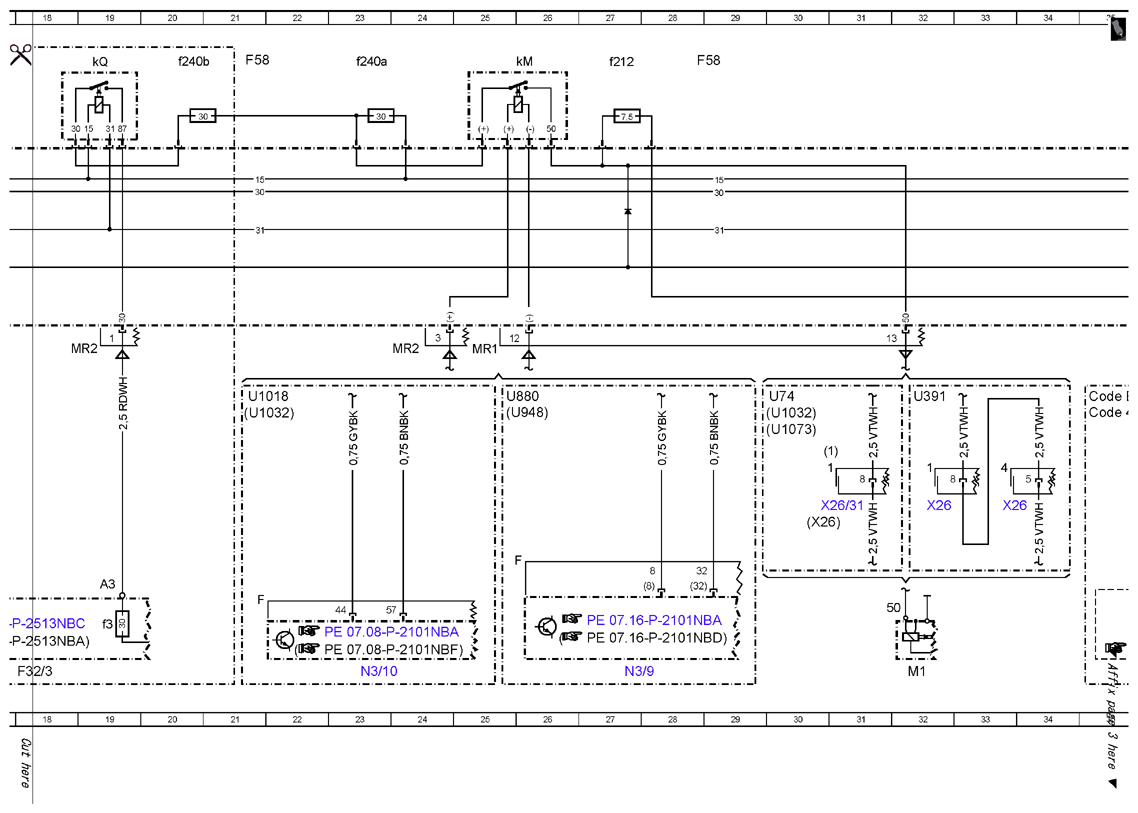

| F58f240a |
Fuse 240a |
23A |
| F58f240b |
Fuse 240b |
20A |
| F58kJ |
Fanfare horn relay |
8A |
| F58kK |
Wiper level 1/2 relay |
55A |
| F58kL |
Windshield wiper ON/OFF relay |
51A |
| F58kM |
Starter circuit 50 relay |
26A |
| F58kQ |
Circuit 15 relay (unlatched) |
19A |
| F58kR |
Circuit 15 relay |
9A |
| F58kS |
Wiper park position heater relay |
45A |
| F58kT |
AIRMATIC relay |
59A |
| H2 |
Left fanfare horn |
66L |
| H2/1 |
Right fanfare horn |
68L |
| H3/1 |
Alarm siren |
75L |
| M1 |
Starter |
32L |
| M6/1 |
Wiper motor |
55L |
| N10 |
SAM control unit |
10L |
| N10 |
SAM control unit |
51L |
| N22/7 |
Automatic air conditioning control and operating unit |
47L |
| N3/10 |
ME-SFI [ME] control unit |
23L |
| N3/9 |
CDI control unit |
27L |
| N30/4 |
Electronic Stability Program control unit |
71L |
| N51/3 |
AIRMATIC control unit |
60L |
| R2/10 |
Wiper park heater |
43L |
| R2/10x1 |
Wiper park position heater electrical connector |
43J |
| R62 |
Voltage dip limiter |
36L |
| U1018 |
Valid for gasoline engine 276 |
21G |
| U1032 |
Valid for engine 278 and 157 |
21G |
| U1032 |
Valid for engine 278 and 157 |
29G |
| U1073 |
Valid for gasoline engine 276.9 |
29G |
| U12 |
Valid for left-hand drive vehicles |
56G |
| U13 |
Valid for right-hand drive vehicles |
56G |
| U225 |
Valid for all except China |
65G |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U259 |
Valid for ADS+ |
58G |
| U391 |
Valid for gasoline engine 276.8 |
32G |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
3K |
| U74 |
Valid for diesel engines |
30G |
| U880 |
Valid for engine 642 |
25G |
| U948 |
Valid for diesel engine 651 |
25G |
| U974 |
Not valid for hybrid drive |
70G |
| W2 |
Right front ground point at lamp unit |
4H |
| W2 |
Right front ground point at lamp unit |
57H |
| W52/11 |
Upper right front longitudinal member ground point |
63H |
| W52/11 |
Upper right front longitudinal member ground point |
67G |
| W9 |
Left front ground point (at lamp unit) |
43G |
| W9 |
Left front ground point (at lamp unit) |
57H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
48H |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
40H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
46H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
61H |
| X26 |
Interior and engine wiring harness electrical connector |
30J |
| X26 |
Interior and engine wiring harness electrical connector |
32H |
| X26 |
Interior and engine wiring harness electrical connector |
33H |
| X26/31 |
Engine/engine compartment electrical connector |
31H |
| Y3/8 |
Fully integrated transmission control unit |
40L |
| Z7/5 |
Circuit 87 connector sleeve |
39H |
