| A0 |
Color code key |
121L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
64L |
| A32 |
AC housing |
100L |
| A76 |
Left front reversible emergency tensioning retractor |
108L |
| A76/1 |
Right front reversible emergency tensioning retractor |
116L |
| A98 |
Panoramic sliding roof control module |
15L |
| A98/1 |
Sliding roof control module |
15L |
| Code 348 |
Emergency call/assistance system |
67K |
| Code 350 |
Ecall Europe emergency call system |
68K |
| Code 413 |
Panoramic sliding sunroof |
13E |
| Code 413 |
Panoramic sliding sunroof |
13B |
| Code 413 |
Panoramic sliding sunroof |
13C |
| Code 414 |
Glass electric sliding roof |
13F |
| Code 414 |
Glass electric sliding roof |
13B |
| Code 430 |
On-road/off-road package |
42E |
| Code 489 |
AIRMATIC |
9E |
| Code 489 |
AIRMATIC |
42F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
73E |
| Code 810 |
Sound system |
77B |
| Code 811 |
Extended sound system |
77B |
| Code 872 |
Left and right rear seat heaters |
34E |
| Code 889 |
KEYLESS-GO |
38E |
| Code 9U1 |
|
67K |
| Code B54 |
Live Traffic Information |
67K |
| Code B63 |
AMG eSound |
50F |
| Code E64 |
|
68K |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
50E |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
81E |
| F3/2 |
Cockpit circuit 30 fuse box |
57L |
| F3/3 |
Cockpit circuit 30g fuse box |
23L |
| F32/4 |
Interior prefuse box |
3L |

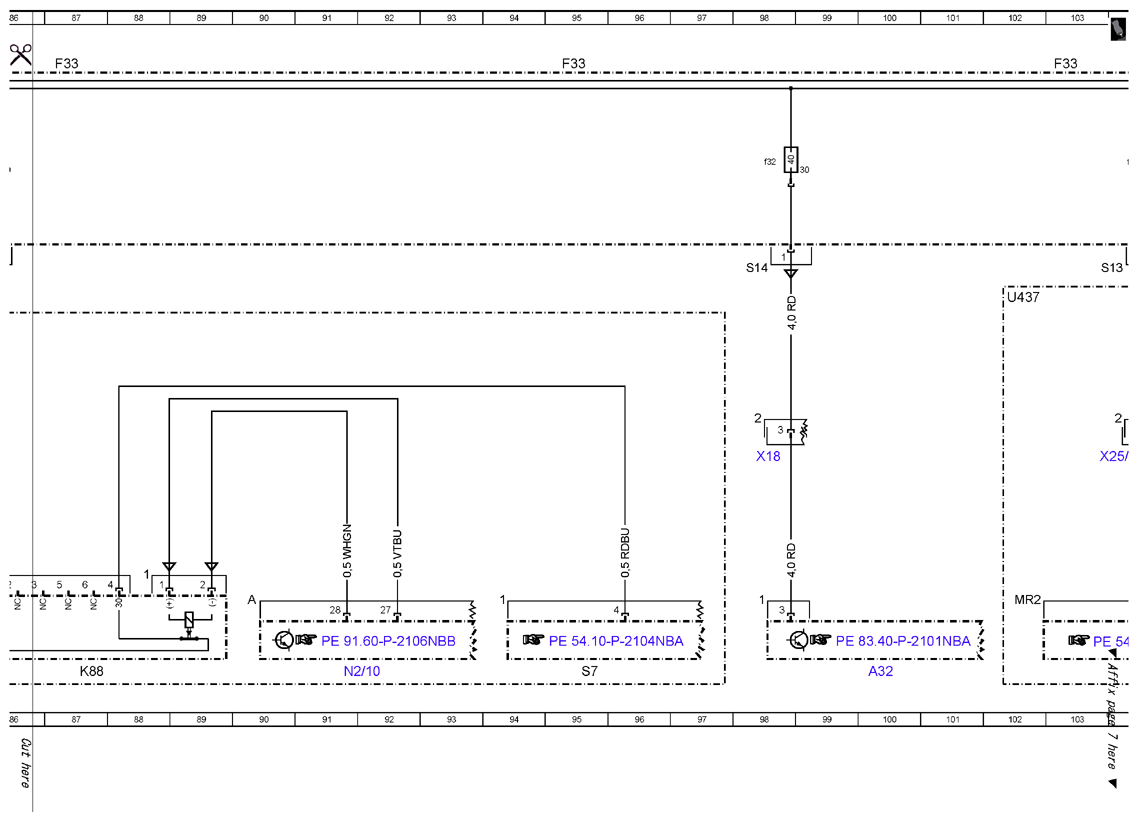

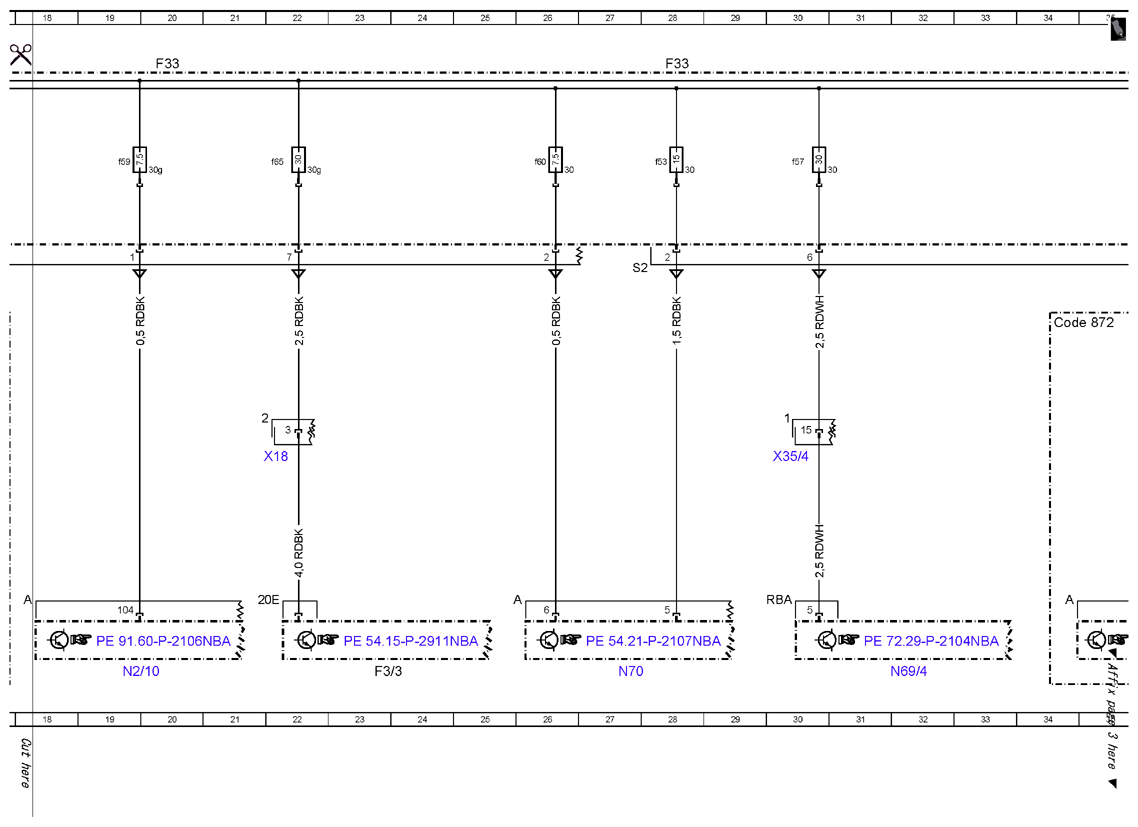

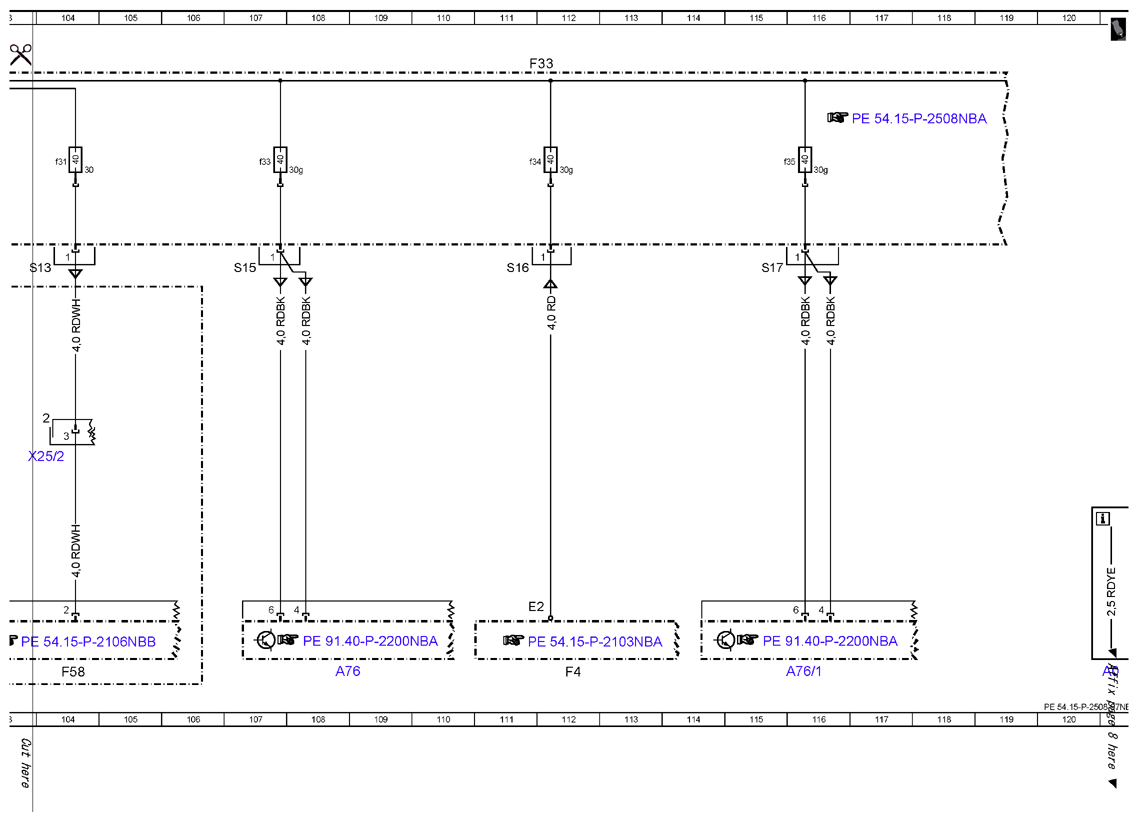

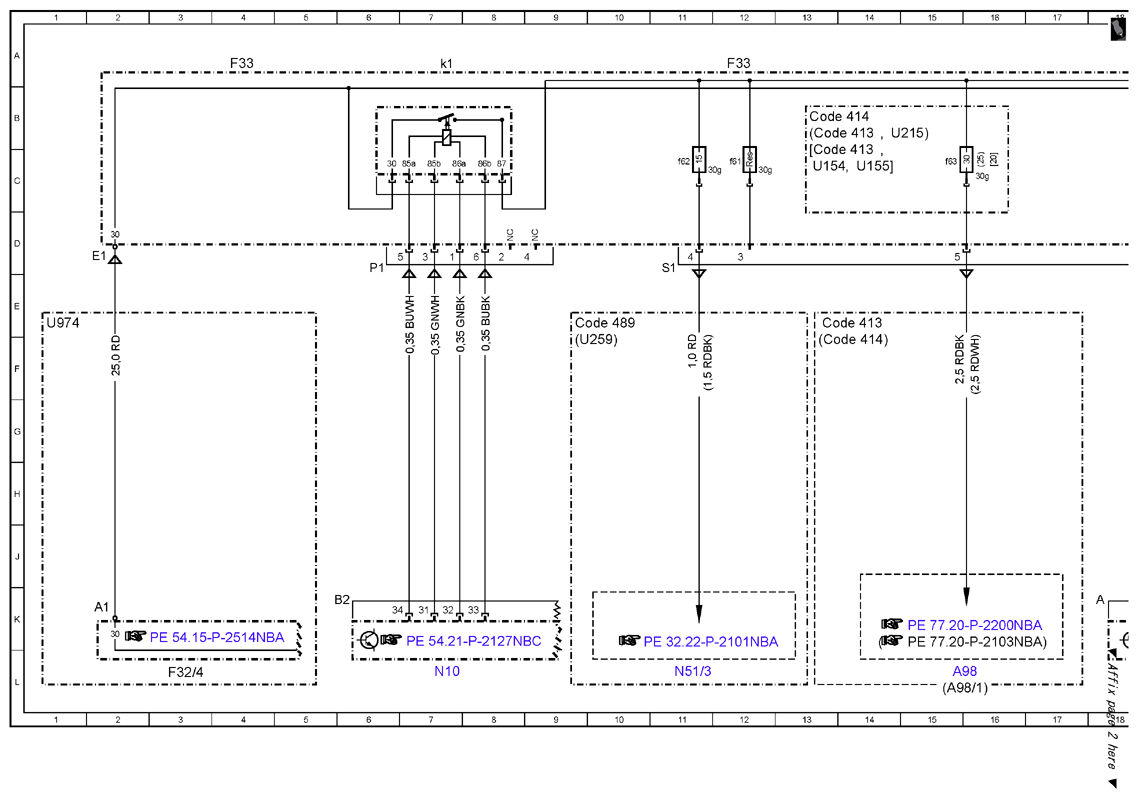

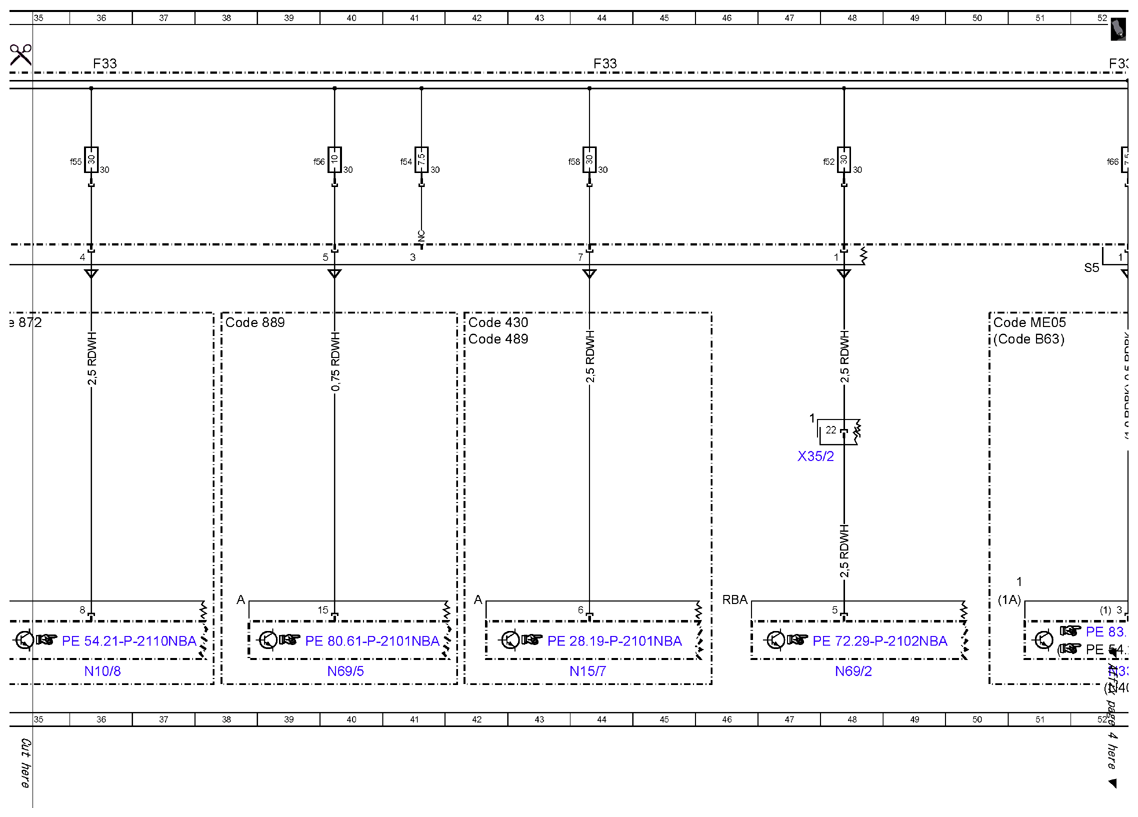

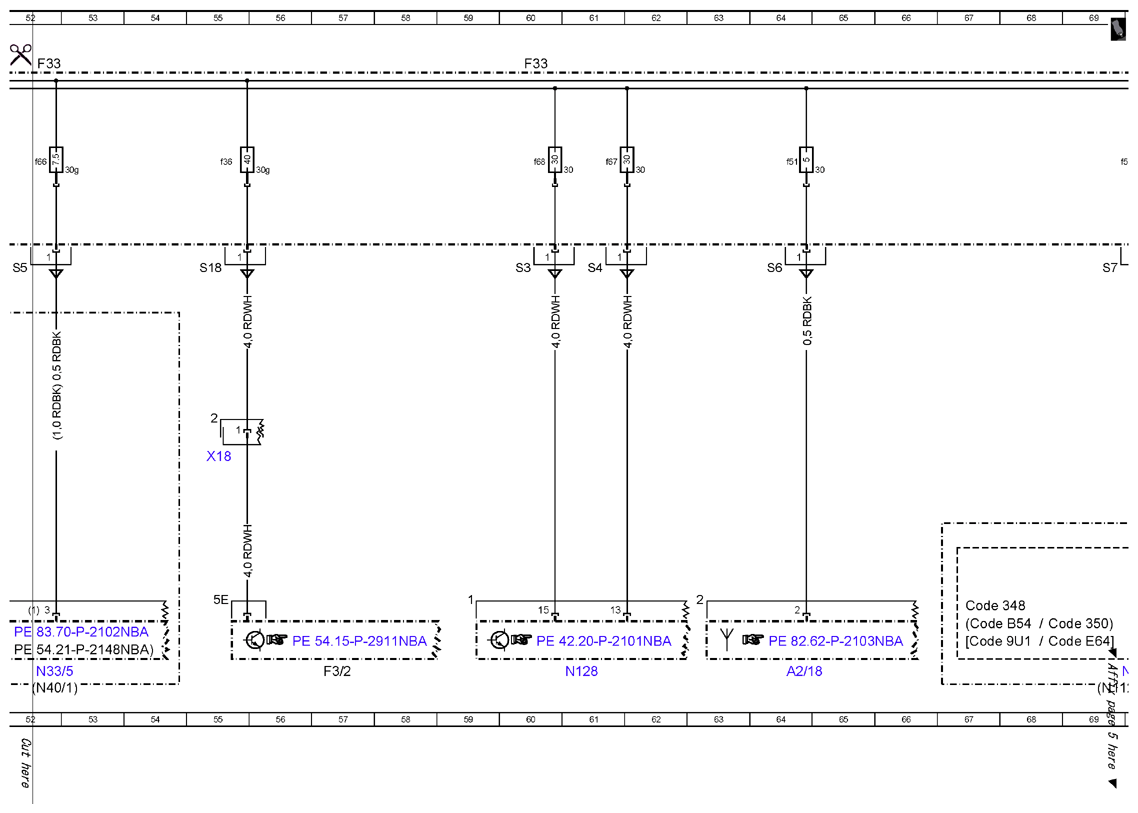

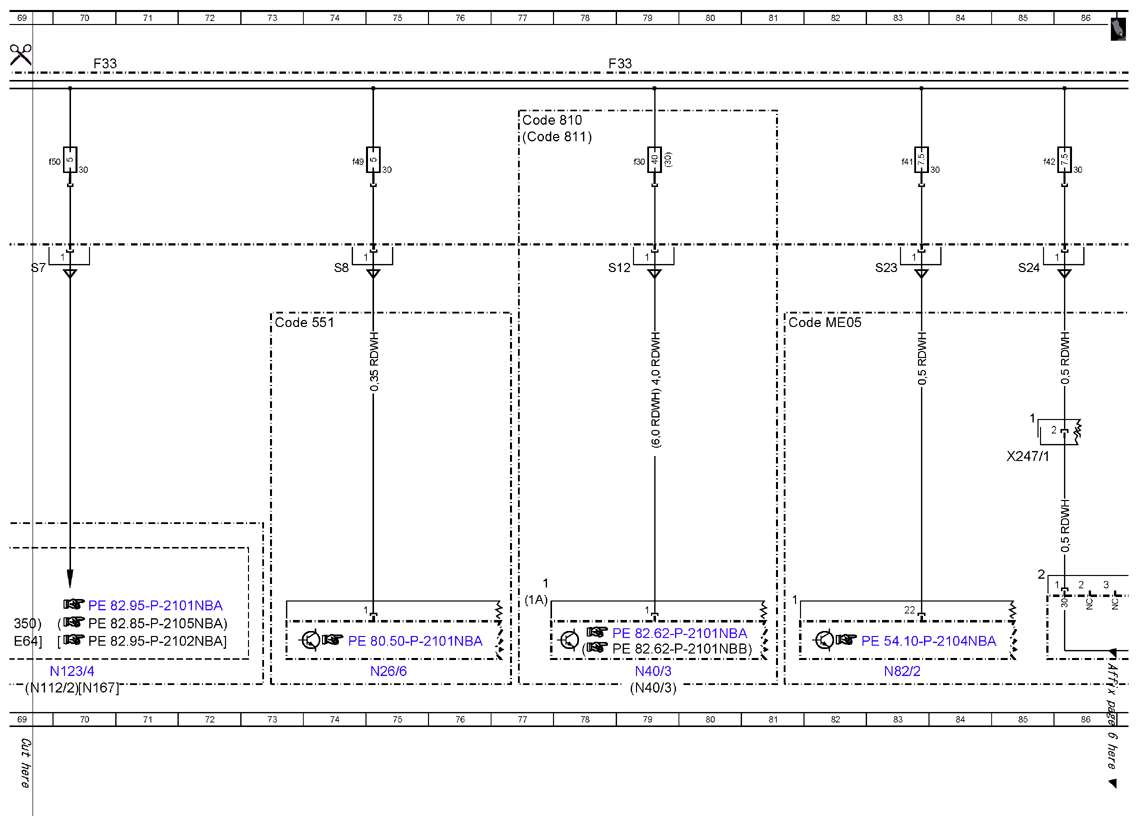

| F33 |
Battery compartment prefuse box |
4A |
| F33 |
Battery compartment prefuse box |
12A |
| F33 |
Battery compartment prefuse box |
20A |
| F33 |
Battery compartment prefuse box |
28A |
| F33 |
Battery compartment prefuse box |
36A |
| F33 |
Battery compartment prefuse box |
44A |
| F33 |
Battery compartment prefuse box |
52A |
| F33 |
Battery compartment prefuse box |
60A |
| F33 |
Battery compartment prefuse box |
70A |
| F33 |
Battery compartment prefuse box |
79A |
| F33 |
Battery compartment prefuse box |
87A |
| F33 |
Battery compartment prefuse box |
95A |
| F33 |
Battery compartment prefuse box |
103A |
| F33 |
Battery compartment prefuse box |
112A |
| F33f30 |
Fuse 30 |
79C |
| F33f31 |
Fuse 31 |
104C |
| F33f32 |
Fuse 32 |
98C |
| F33f33 |
Fuse 33 |
107C |
| F33f34 |
Fuse 34 |
111C |
| F33f35 |
Fuse 35 |
115C |
| F33f36 |
Fuse 36 |
55C |
| F33f41 |
Fuse 41 |
83C |
| F33f42 |
Fuse 42 |
85C |
| F33f49 |
Fuse 49 |
74C |
| F33f50 |
Fuse 50 |
69C |
| F33f51 |
Fuse 51 |
64C |
| F33f52 |
Fuse 52 |
48C |
| F33f53 |
Fuse 53 |
28C |
| F33f54 |
Fuse 54 |
41C |
| F33f55 |
Fuse 55 |
36C |
| F33f56 |
Fuse 56 |
39C |
| F33f57 |
Fuse 57 |
30C |
| F33f58 |
Fuse 58 |
43C |
| F33f59 |
Fuse 59 |
19C |
| F33f60 |
Fuse 60 |
26C |
| F33f61 |
Fuse 61 |
12C |
| F33f62 |
Fuse 62 |
11C |
| F33f63 |
Fuse 63 |
15C |
| F33f65 |
Fuse 65 |
22C |
| F33f66 |
Fuse 66 |
52C |
| F33f67 |
Fuse 67 |
61C |
| F33f68 |
Fuse 68 |
60C |
| F33k1 |
Circuit 30g relay |
7A |
| F4 |
Rear fuse box |
112L |
| F58 |
Engine compartment fuse and relay module |
104L |
| K88 |
Pyrotechnical separator |
87L |
| N10 |
SAM control unit |
7L |
| N10/8 |
Rear control unit |
36L |
| N112/2 |
Telematics services communication module |
69L |
| N123/4 |
Emergency call system control unit |
70L |
| N128 |
Electric parking brake control unit |
61L |
| N15/7 |
Transfer case control unit |
44L |
| N167 |
E-Call Russia (GLONASS) control unit |
70L |
| N2/10 |
Supplemental restraint system control unit |
19L |
| N2/10 |
Supplemental restraint system control unit |
91L |
| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
75L |
| N33/5 |
High-voltage PTC heater |
52L |
| N40/1 |
Engine sound control unit |
52L |
| N40/3 |
Sound system amplifier control unit |
79L |
| N40/3 |
Sound system amplifier control unit |
79L |
| N51/3 |
AIRMATIC control unit |
11L |
| N69/2 |
Right front door control unit |
48L |
| N69/4 |
Right rear door control unit |
32L |
| N69/5 |
KEYLESS-GO control unit |
40L |
| N70 |
Overhead control panel control unit |
27L |
| N82/2 |
Battery management system control unit |
83L |
| S7 |
High-voltage disconnect device |
95L |
| U154 |
Valid for 166.0 |
13C |
| U155 |
Valid for 166.8 |
14C |
| U215 |
Valid for model series 292 |
14B |
| U259 |
Valid for ADS+ |
9F |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
102E |
| U974 |
Not valid for hybrid drive |
1E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
22G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
98G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
55G |
| X247/1 |
Front passenger A-pillar electrical connector, rescue |
85G |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
104G |
| X35/2 |
Right front door electrical connector |
47G |
| X35/4 |
Right rear door electrical connector |
30G |
