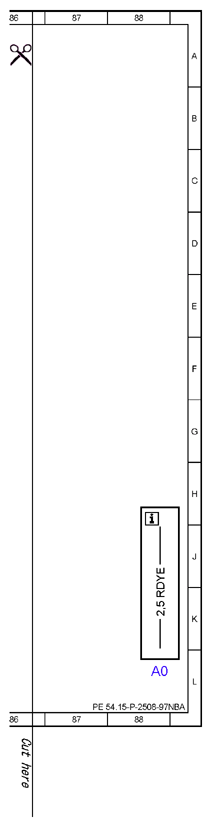

| A0 |
Color code key |
88L |
| A105 |
Touchpad |
11L |
| A40/11 |
Multifunction camera |
53L |
| A40/13 |
Stereo multifunction camera |
53L |
| A40/4 |
DVD player |
73L |
| A40/5 |
Left rear display |
68L |
| A40/6 |
Right rear display |
70L |
| A40/9 |
Audio/COMAND control panel |
8L |
| A90/4 |
Tuner unit |
48L |
| A90/5 |
Multimedia connection unit |
57L |
| B84/3 |
Backup camera |
65L |
| Code 218 |
Backup camera |
63E |
| Code 220 |
PARKTRONIC |
22H |
| Code 23P |
Driver assistance package |
79E |
| Code 430 |
On-road/off-road package |
13H |
| Code 430 |
On-road/off-road package |
18H |
| Code 475 |
Tire pressure monitor |
42E |
| Code 489 |
AIRMATIC |
13H |
| Code 501 |
360 degree camera |
59E |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
6H |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
55F |
| Code 522 |
Audio 20 radio |
6H |
| Code 522 |
Audio 20 radio |
55F |
| Code 531 |
COMAND APS |
6H |
| Code 531 |
COMAND APS |
10H |
| Code 531 |
COMAND APS |
55E |
| Code 536 |
SIRIUS satellite radio |
46E |
| Code 537 |
Digital radio |
46F |
| Code 810 |
Sound system |
34E |
| Code 864 |
Rear compartment entertainment |
67E |
| Code 865 |
TV tuner |
46F |
| Code 866 |
Rear entertainment pre-installation |
67F |
| Code 872 |
Left and right rear seat heaters |
38E |

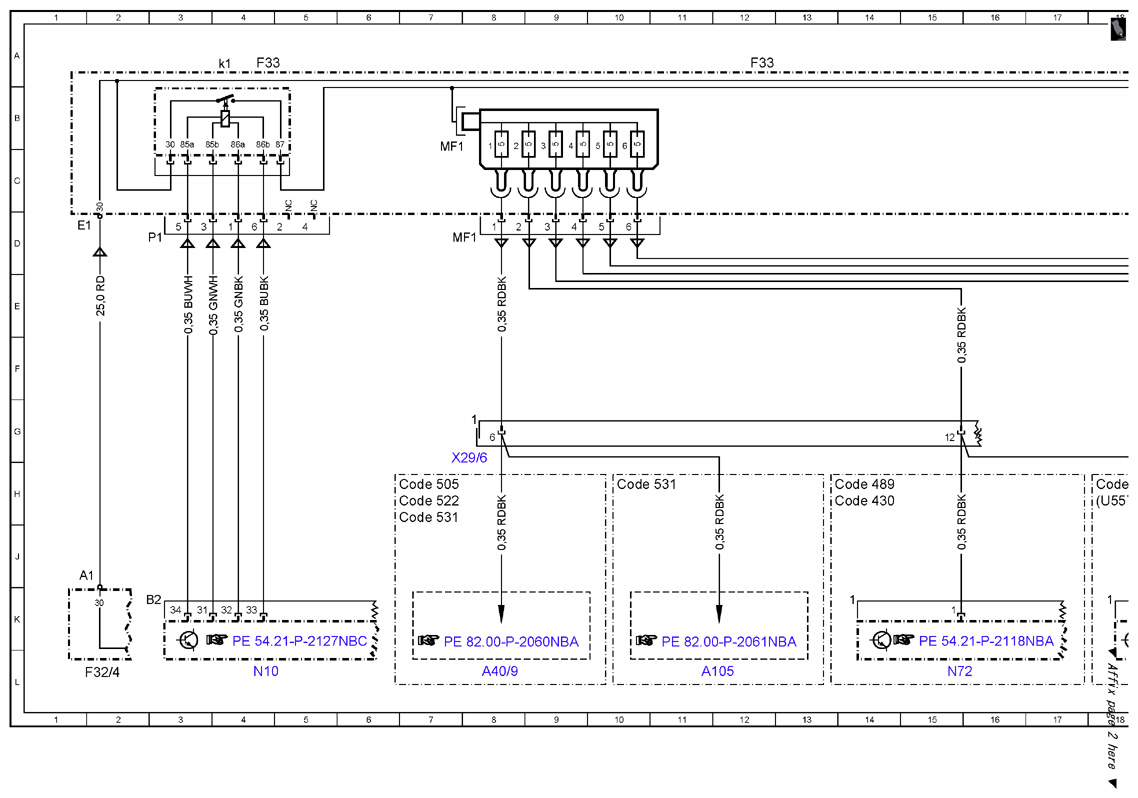

| F32/4 |
Interior prefuse box |
2L |

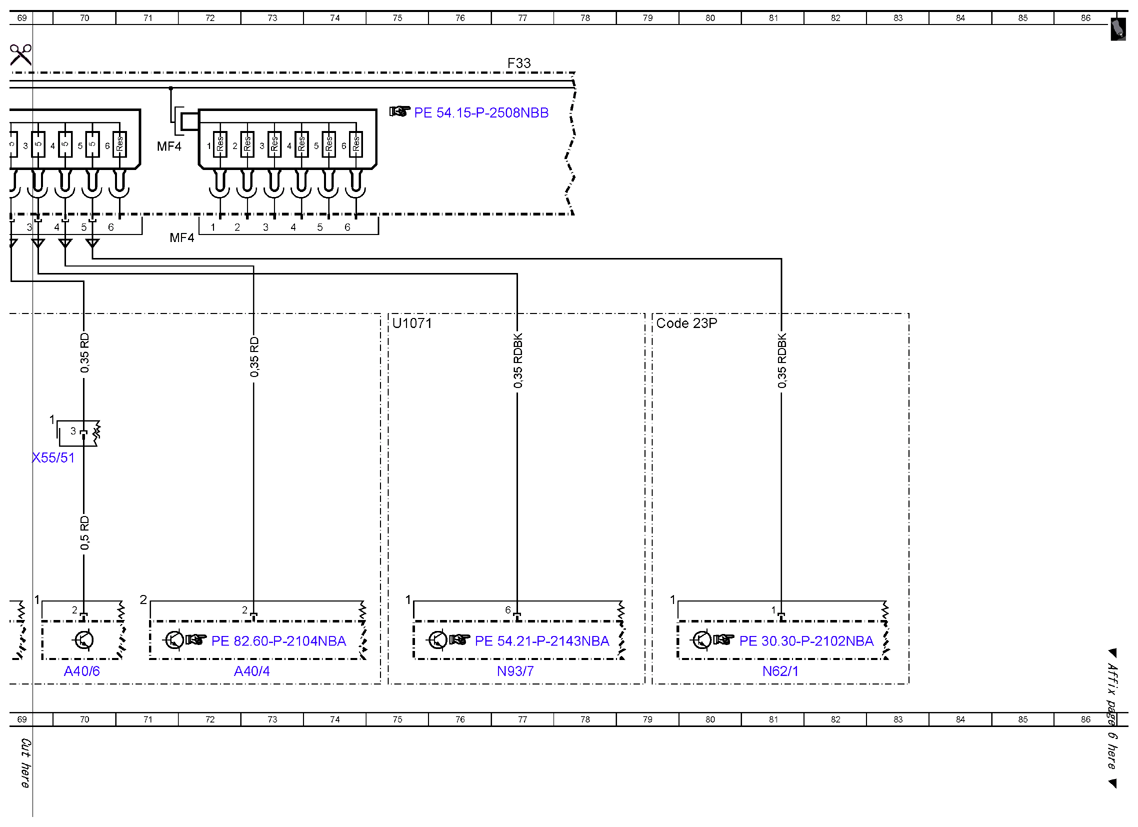

| F33 |
Battery compartment prefuse box |
4A |
| F33 |
Battery compartment prefuse box |
12A |
| F33 |
Battery compartment prefuse box |
20A |
| F33 |
Battery compartment prefuse box |
28A |
| F33 |
Battery compartment prefuse box |
36A |
| F33 |
Battery compartment prefuse box |
44A |
| F33 |
Battery compartment prefuse box |
52A |
| F33 |
Battery compartment prefuse box |
60A |
| F33 |
Battery compartment prefuse box |
68A |
| F33 |
Battery compartment prefuse box |
77A |
| F33MF1 |
Multiple fuse 1 |
7C |

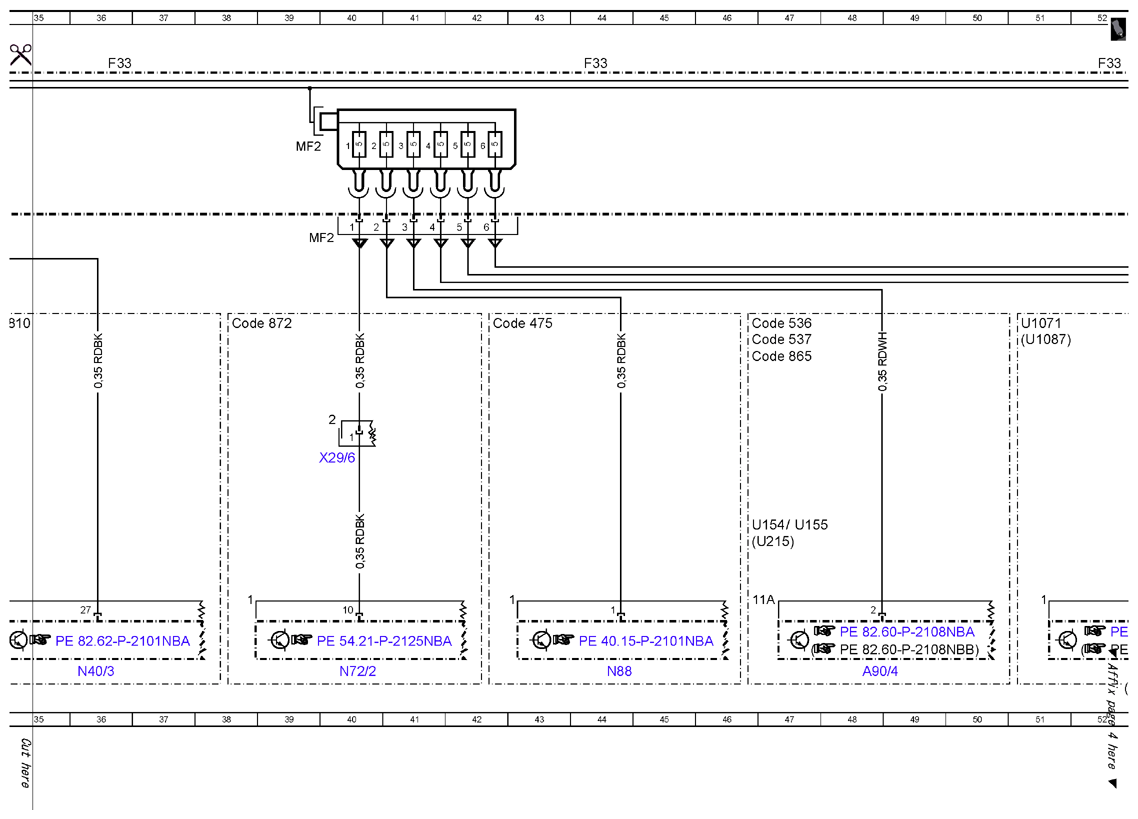

| F33MF2 |
Multiple fuse 2 |
39C |

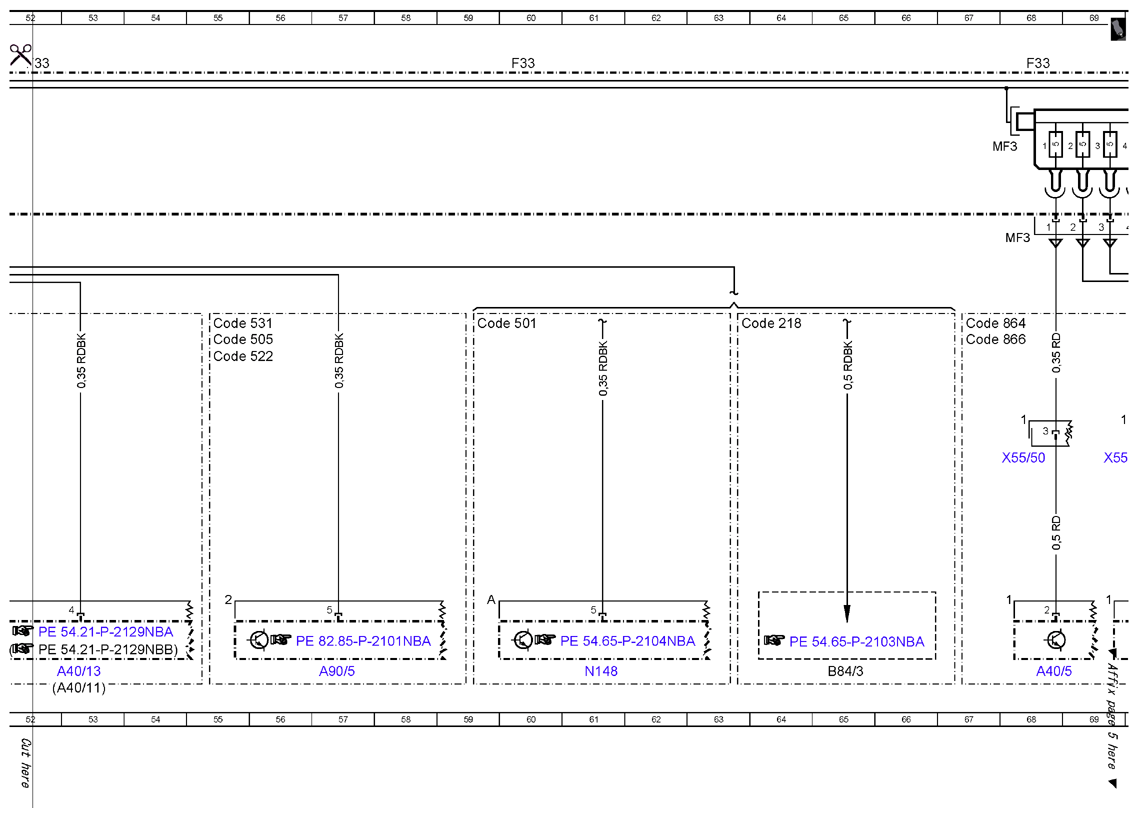

| F33MF3 |
Multiple fuse 3 |
68C |
| F33MF4 |
Multiple fuse 4 |
71C |
| F33k1 |
Circuit 30g relay |
4A |
| N10 |
SAM control unit |
4L |
| N10 |
SAM control unit |
32L |
| N148 |
360° camera control unit |
61L |
| N30/4 |
Electronic Stability Program control unit |
28L |
| N40/3 |
Sound system amplifier control unit |
36L |
| N62 |
Parking system control unit |
24L |
| N62/1 |
Radar sensors control unit |
81L |
| N72 |
Lower control panel control unit |
15L |
| N72/2 |
RCP [HBF] control unit |
40L |

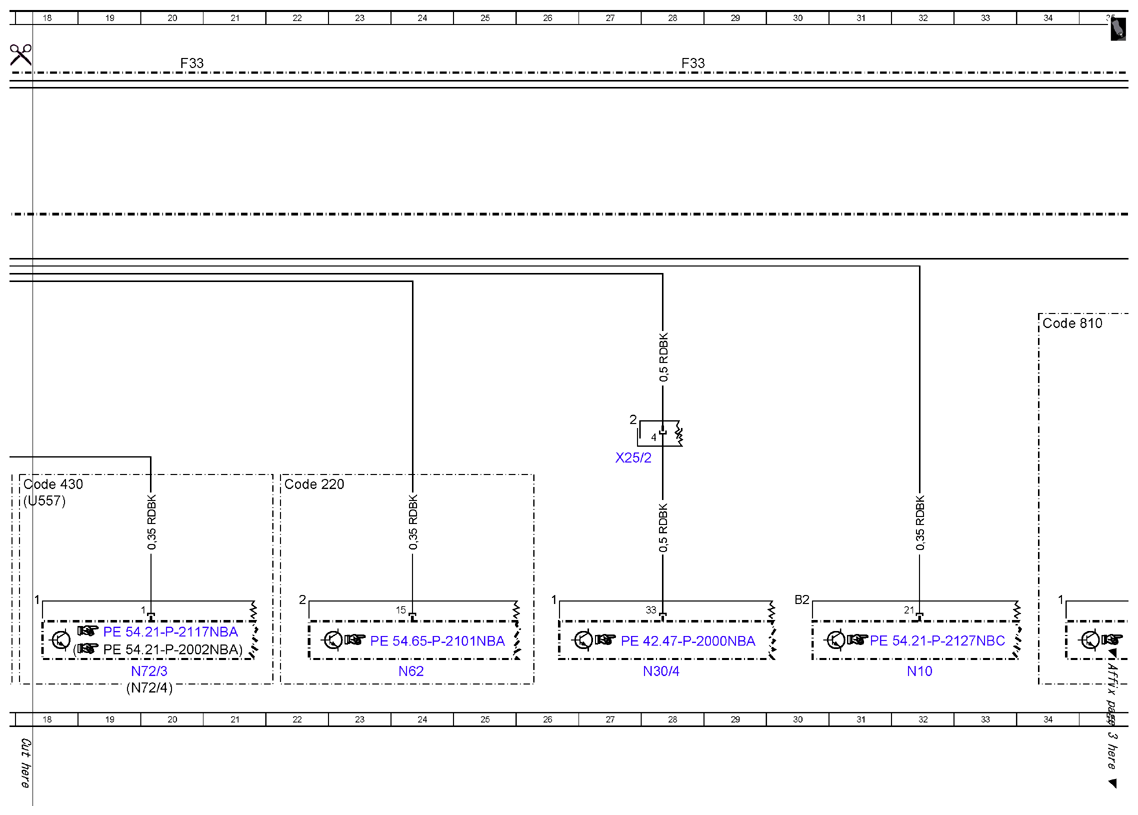

| N72/3 |
Off-Road operating panel control unit |
20L |
| N72/4 |
Transmission modes control panel |
19L |
| N88 |
Tire pressure monitor control unit |
44L |
| N93/7 |
Chassis gateway control unit |
77L |
| U1071 |
Valid for stereo multifunction camera |
51E |
| U1071 |
Valid for stereo multifunction camera |
75E |
| U1087 |
Valid for mono multifunction camera |
51F |
| U154 |
Valid for 166.0 |
46J |
| U155 |
Valid for 166.8 |
47J |
| U215 |
Valid for model series 292 |
46J |
| U557 |
Not valid for on-road/off-road package |
18H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
27H |
| X29/6 |
Center console electrical connector |
8H |
| X29/6 |
Center console electrical connector |
40H |
| X55/50 |
Left rear display electrical connector |
68H |
| X55/51 |
Right rear display electrical connector |
69H |
