| A0 |
Color code key |
80L |
| A40/11 |
Multifunction camera |
46L |

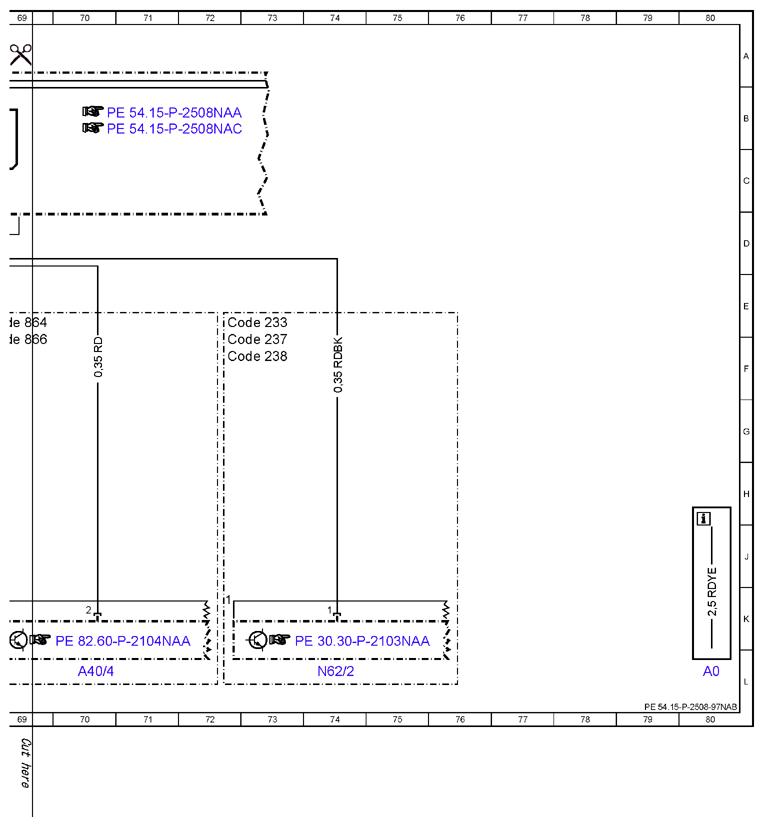

| A40/4 |
DVD player |
70L |
| A40/5 |
Left rear display |
62L |
| A40/6 |
Right rear display |
63L |
| A40/9 |
Audio/COMAND control panel |
6L |
| A90/1 |
TV tuner (analog/digital) |
66L |
| A90/3 |
TV digital tuner |
66L |
| B84/3 |
Backup camera |
58L |
| B84/3x1 |
Backup camera electrical connector |
58H |
| Code 218 |
Backup camera |
52E |
| Code 218 |
Backup camera |
56F |
| Code 220 |
PARKTRONIC |
16E |
| Code 233 |
DISTRONIC PLUS |
72E |
| Code 237 |
Active Blind Spot Assist |
72F |
| Code 238 |
Active Lane Keeping Assist |
72F |
| Code 430 |
On-road/off-road package |
12H |
| Code 430 |
On-road/off-road package |
8J |
| Code 475 |
Tire pressure monitor |
36E |
| Code 476 |
Automatic lane detection |
44F |
| Code 489 |
AIRMATIC |
8H |
| Code 498 |
Japan version |
52F |
| Code 501 |
360 degree camera |
52F |
| Code 513 |
Speed Limit Assist |
44F |
| Code 518 |
Media Interface |
48E |
| Code 518 |
Media Interface |
48F |
| Code 536 |
SIRIUS satellite radio |
40E |
| Code 537 |
Digital radio |
40F |
| Code 810 |
Sound system |
28E |
| Code 863 |
Digital/analog TV tuner |
64F |
| Code 864 |
Rear compartment entertainment |
60E |
| Code 864 |
Rear compartment entertainment |
68E |
| Code 865 |
TV tuner (digital) |
66G |
| Code 865 |
TV tuner (digital) |
66F |
| Code 865 |
TV tuner (digital) |
64G |
| Code 866 |
Rear entertainment pre-installation |
60F |
| Code 866 |
Rear entertainment pre-installation |
68F |
| Code 872 |
Left and right rear seat heaters |
32E |
| F32/4 |
Interior prefuse box |
1L |
| F33 |
Battery compartment prefuse box |
20A |
| F33 |
Battery compartment prefuse box |
28A |
| F33 |
Battery compartment prefuse box |
36A |
| F33 |
Battery compartment prefuse box |
44A |
| F33 |
Battery compartment prefuse box |
60A |
| F33 |
Battery compartment prefuse box |
52A |
| F33 |
Battery compartment prefuse box |
4A |
| F33 |
Battery compartment prefuse box |
12A |
| F33 |
Battery compartment prefuse box |
68A |

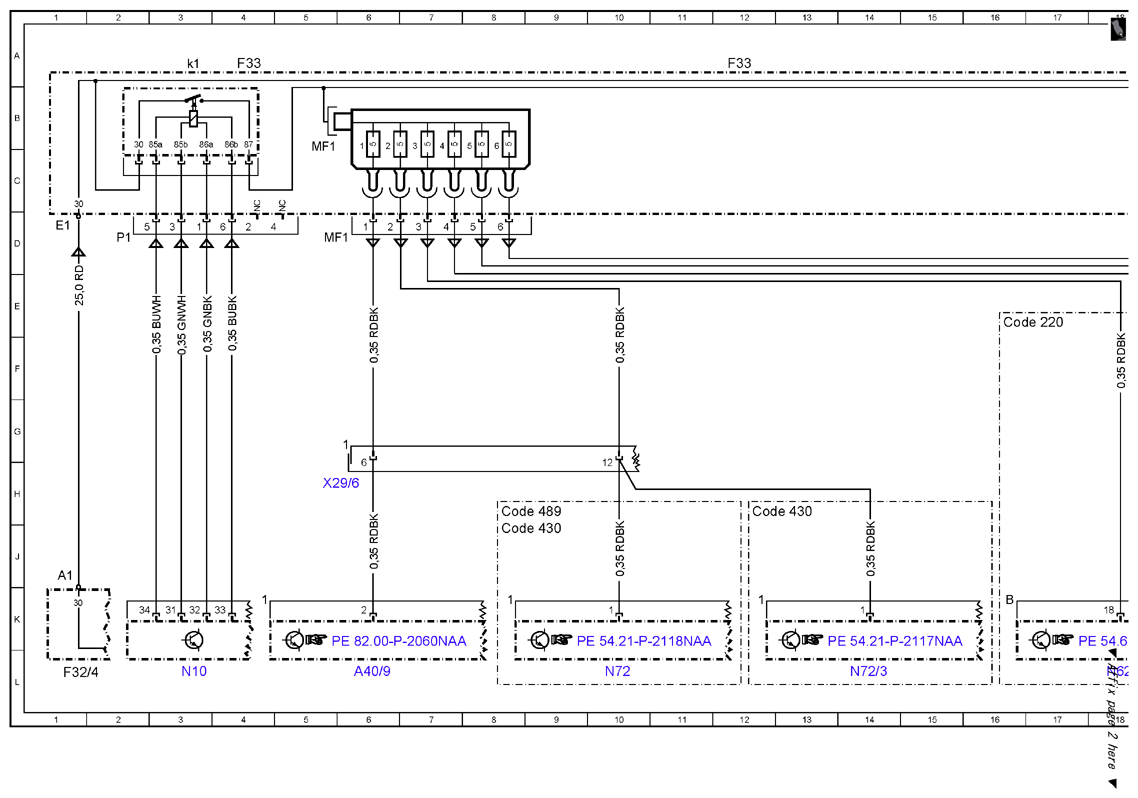

| F33MF1 |
Multiple fuse 1 |
5C |

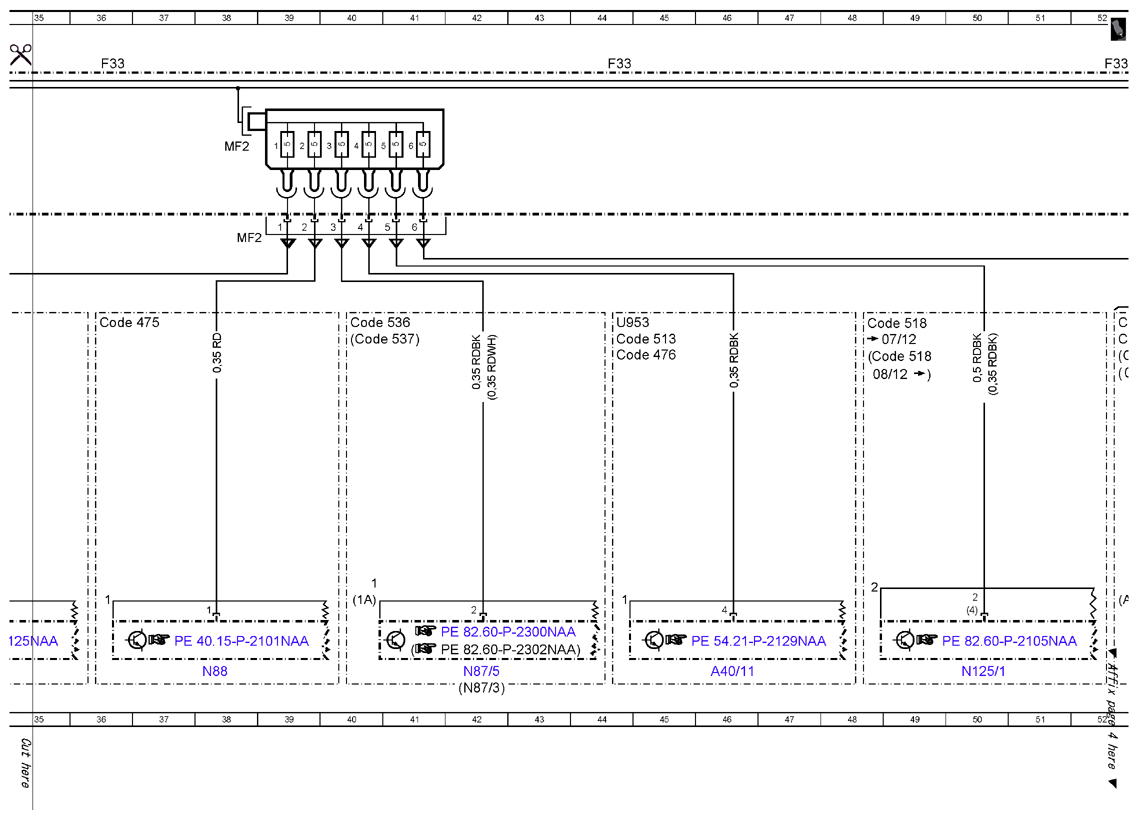

| F33MF2 |
Multiple fuse 2 |
38C |

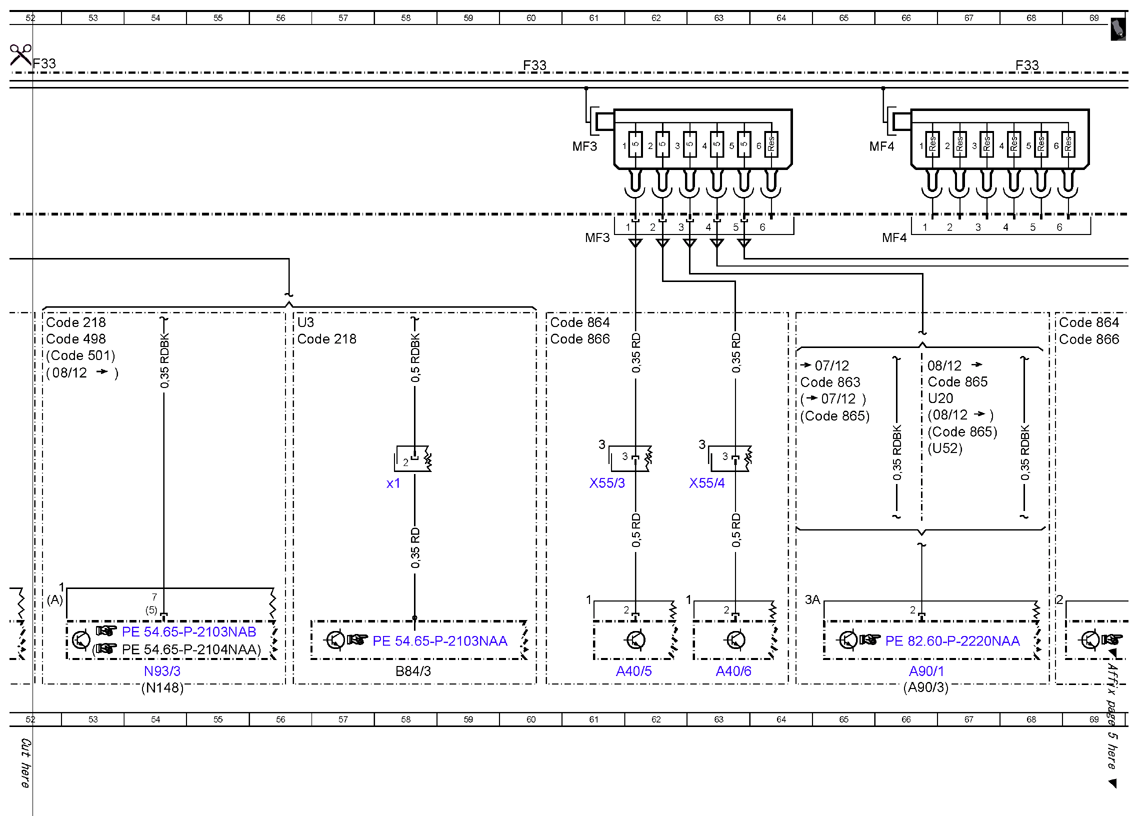

| F33MF3 |
Multiple fuse 3 |
61C |
| F33MF4 |
Multiple fuse 4 |
66C |
| F33k1 |
Circuit 30g relay |
3A |
| N10 |
SAM control unit |
3L |
| N10 |
SAM control unit |
26L |
| N125/1 |
Media interface control unit |
50L |
| N148 |
360° camera control unit |
54L |

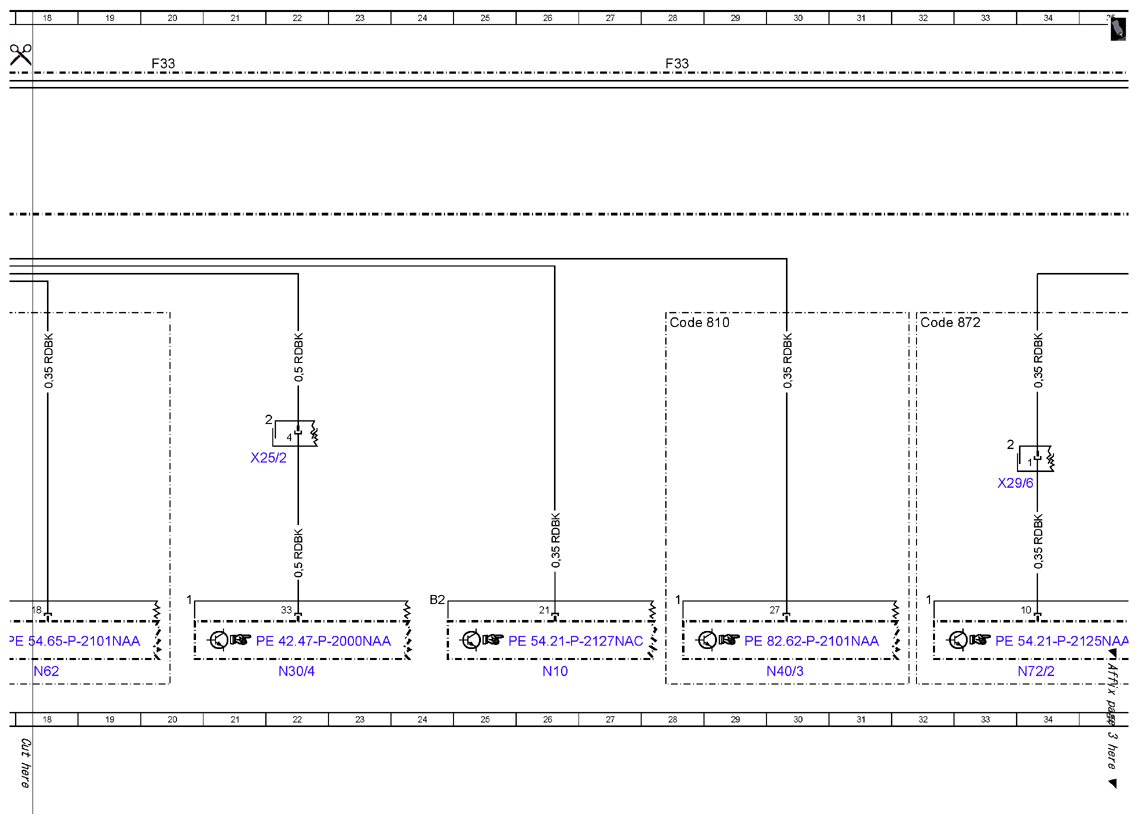

| N30/4 |
Electronic Stability Program control unit |
22L |
| N40/3 |
Sound system amplifier control unit |
30L |
| N62 |
Parking system control unit |
18L |
| N62/2 |
Video and radar sensor system control unit |
74L |
| N72 |
Lower control panel control unit |
10L |
| N72/2 |
RCP [HBF] control unit |
34L |
| N72/3 |
Off-Road operating panel control unit |
14L |
| N87/3 |
Digital Audio Broadcasting control unit |
42L |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
42L |
| N88 |
Tire pressure monitor control unit |
38L |
| N93/3 |
Reversing camera electronics |
54L |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
66G |
| U3 |
Valid for all except Japan |
56E |
| U52 |
Valid for Japan |
66G |
| U953 |
Valid for multifunction camera for automatic lane recognition |
44E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
22H |
| X29/6 |
Center console electrical connector |
6H |
| X29/6 |
Center console electrical connector |
33H |
| X55/3 |
Driver seat connector block |
61H |
| X55/4 |
Front passenger seat connector block |
63H |
