| A0 |
Color code key |
80L |
| A2 |
Radio |
67L |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
58L |
| A34/7 |
BluetoothA® module |
62L |
| A40/3 |
COMAND control unit |
71L |
| A40/3 |
COMAND control unit |
66L |
| C5 |
Rear window wave trap |
23L |
| C5x1 |
Rear window wave trap electrical connector |
22H |
| Code 355 |
Pre-installation for navigation retrofit |
73G |
| Code 386 |
Comfort telephony |
57G |
| Code 494 |
USA version |
43G |
| Code 494 |
USA version |
69G |
| Code 498 |
Japan version |
69H |
| Code 550 |
Trailer hitch |
43G |
| Code 580 |
Automatic air conditioning |
18H |
| Code 581 |
Comfort automatic air conditioning |
18J |
| Code B03 |
ECO start/stop function |
8G |
| Code U42 |
BlueTECA® diesel exhaust treatment |
25G |
| Code U80 |
115 V socket |
76G |
| F32/4 |
Interior prefuse box |
6L |
| F33 |
Battery compartment prefuse box |
3L |
| F4 |
Rear fuse box |
4A |
| F4 |
Rear fuse box |
12A |
| F4 |
Rear fuse box |
18A |
| F4 |
Rear fuse box |
21A |
| F4 |
Rear fuse box |
28A |
| F4 |
Rear fuse box |
36A |
| F4 |
Rear fuse box |
44A |
| F4 |
Rear fuse box |
51A |
| F4 |
Rear fuse box |
60A |
| F4 |
Rear fuse box |
68A |
| F4 |
Rear fuse box |
76A |

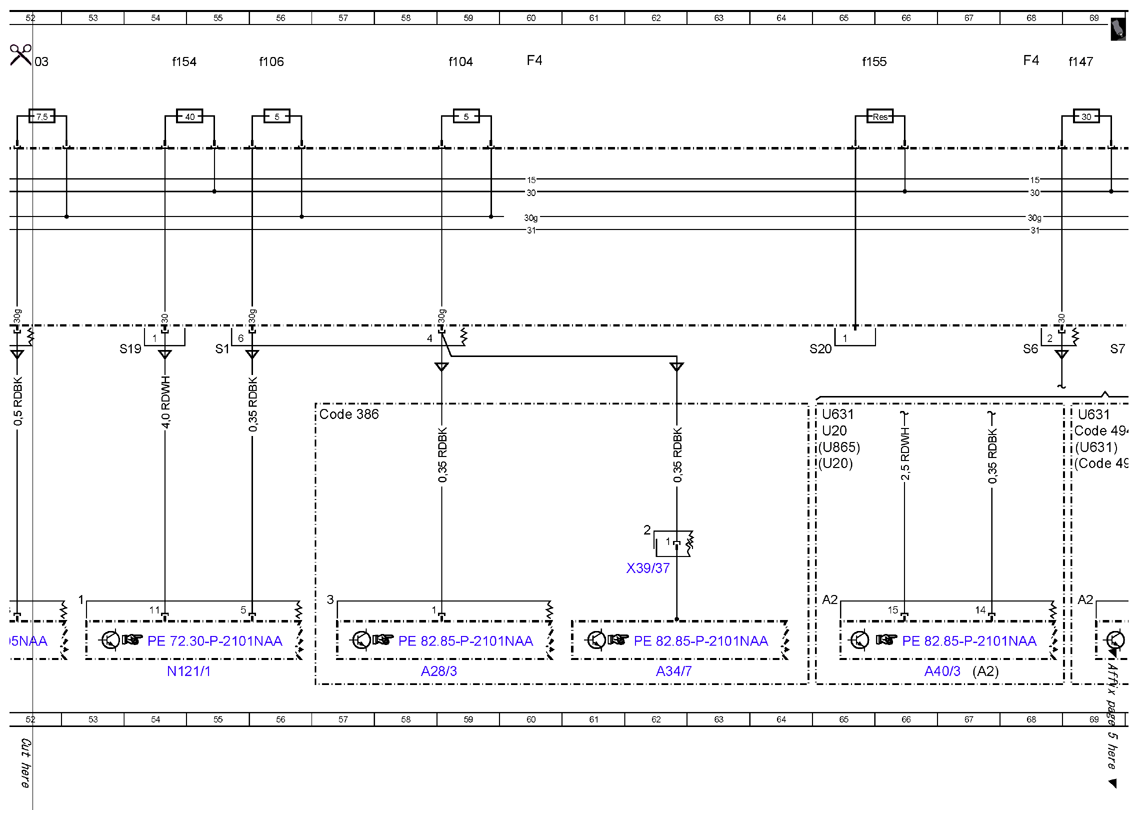

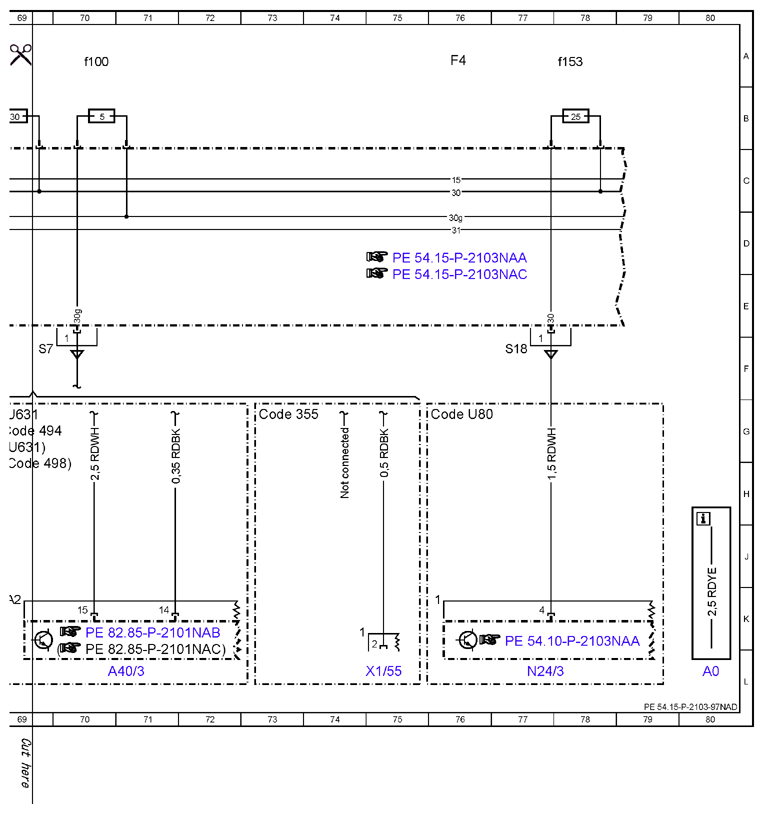

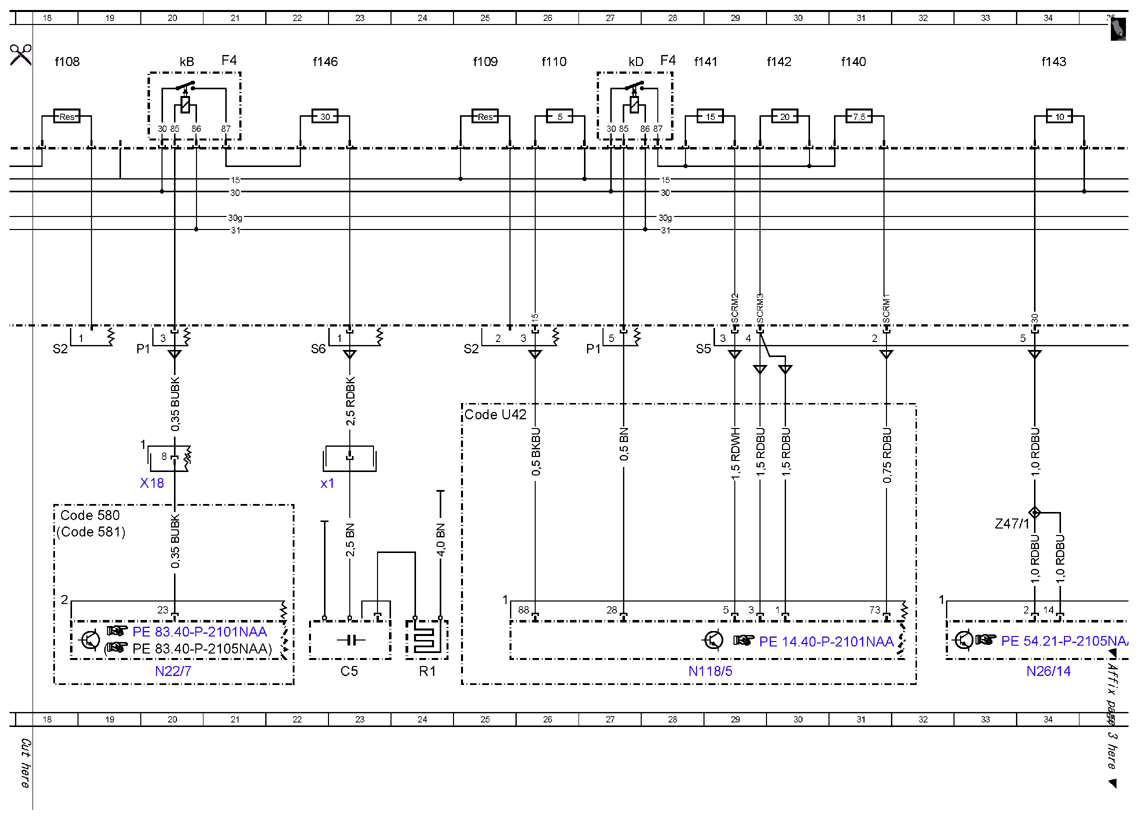

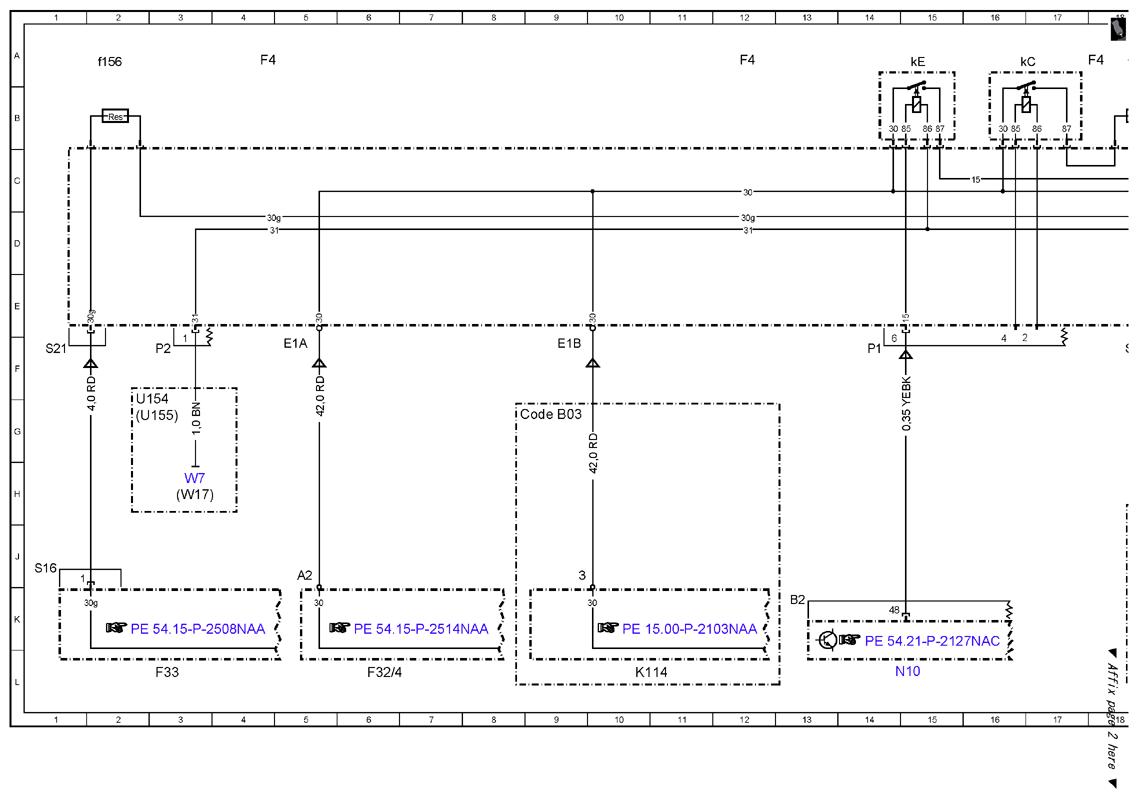

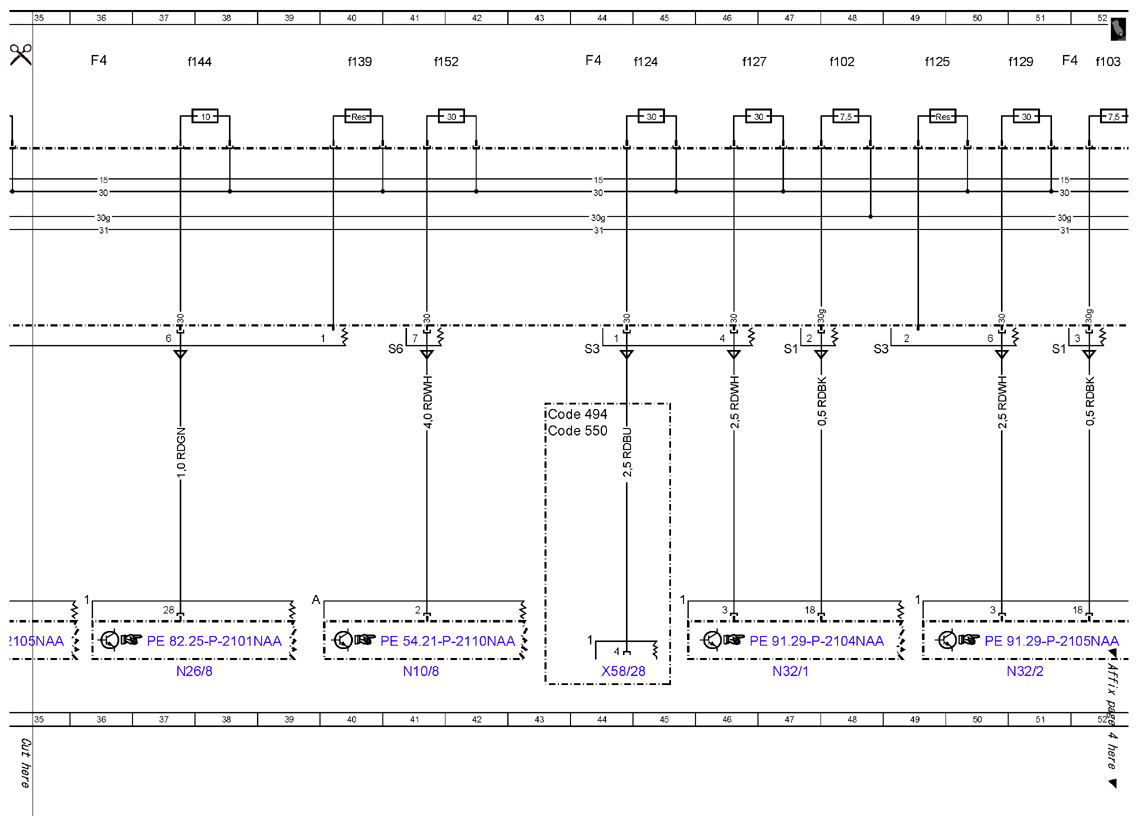

| F4f100 |
Fuse 100 |
70A |
| F4f102 |
Fuse 102 |
48A |
| F4f103 |
Fuse 103 |
52A |
| F4f104 |
Fuse 104 |
59A |
| F4f106 |
Fuse 106 |
56A |
| F4f108 |
Fuse 108 |
18A |
| F4f109 |
Fuse 109 |
25A |
| F4f110 |
Fuse 110 |
26A |
| F4f124 |
Fuse 124 |
45A |
| F4f125 |
Fuse 125 |
49A |
| F4f127 |
Fuse 127 |
46A |
| F4f129 |
Fuse 129 |
51A |
| F4f139 |
Fuse 139 |
40A |
| F4f140 |
Fuse 140 |
31A |
| F4f141 |
Fuse 141 |
28A |
| F4f142 |
Fuse 142 |
30A |
| F4f143 |
Fuse 143 |
34A |
| F4f144 |
Fuse 144 |
38A |
| F4f146 |
Fuse 146 |
22A |
| F4f147 |
Fuse 147 |
69A |
| F4f152 |
Fuse 152 |
41A |
| F4f153 |
Fuse 153 |
78A |
| F4f154 |
Fuse 154 |
54A |
| F4f155 |
Fuse 155 |
65A |
| F4f156 |
Fuse 156 |
2A |
| F4kB |
Heated rear window relay |
20A |
| F4kC |
Backup relay |
16A |
| F4kD |
AdBlueA® relay |
27A |
| F4kE |
Circuit 15 relay |
15A |
| K114 |
ECO start/stop function additional battery relay |
11L |
| N10 |
SAM control unit |
15L |
| N10/8 |
Rear control unit |
41L |
| N118/5 |
AdBlueA® control unit |
28L |
| N121/1 |
Tailgate control control unit |
54L |
| N22/7 |
Automatic air conditioning control and operating unit |
20L |
| N24/3 |
DC/AC converter control unit |
77L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
34L |
| N26/8 |
PAS (GAS) control unit |
37L |
| N32/1 |
Driver seat control unit |
47L |
| N32/2 |
Front passenger seat control unit |
51L |
| R1 |
Rear window heater |
24L |
| U154 |
Valid for 166.0 |
2G |
| U155 |
Valid for 166.8 |
2G |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
65G |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
65H |
| U631 |
Valid for COMAND |
65G |
| U631 |
Valid for COMAND |
69G |
| U631 |
Valid for COMAND |
69G |
| U865 |
Valid for Audio 20 |
65G |
| W17 |
Right rear seat ground point |
3H |
| W7 |
Right rear center section ground point |
3H |
| X1/55 |
External navigation electrical connector |
75L |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
20H |
| X39/37 |
Mobile phone electrical connector |
62J |
| X58/28 |
Electric-Brake-Control electrical connector |
44L |
| Z47/1 |
Special vehicle multifunction control unit (SVMCU) circuit 30 connector sleeve |
33J |
