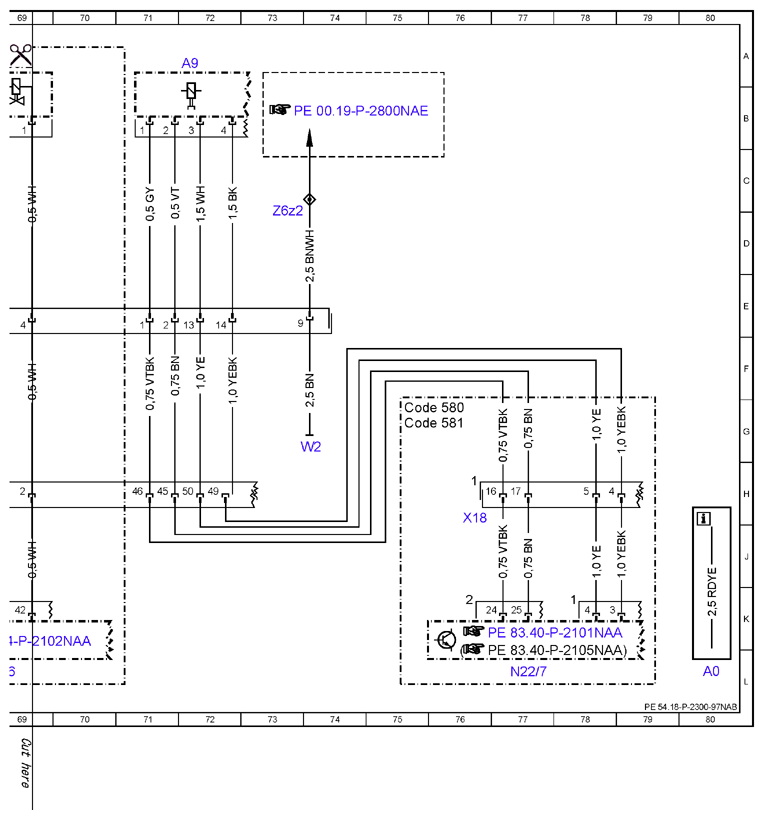

| A0 |
Color code key |
80L |

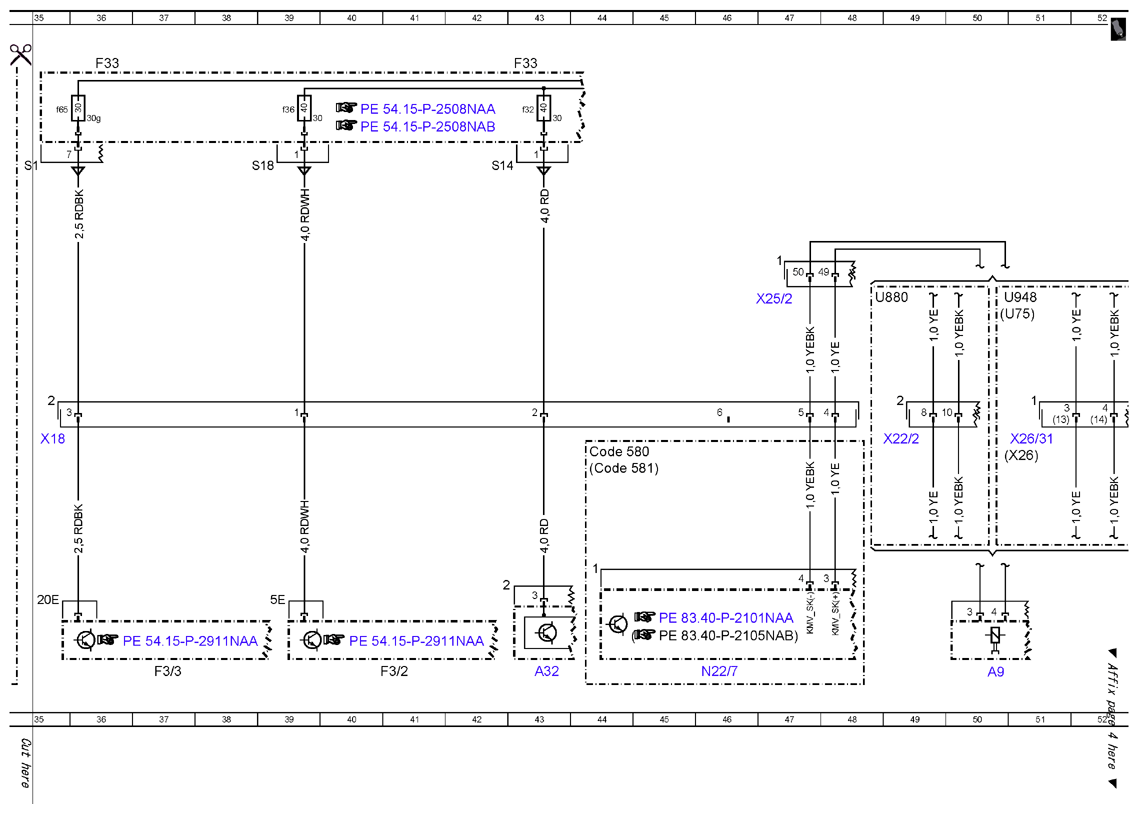

| A32 |
AC housing |
43L |

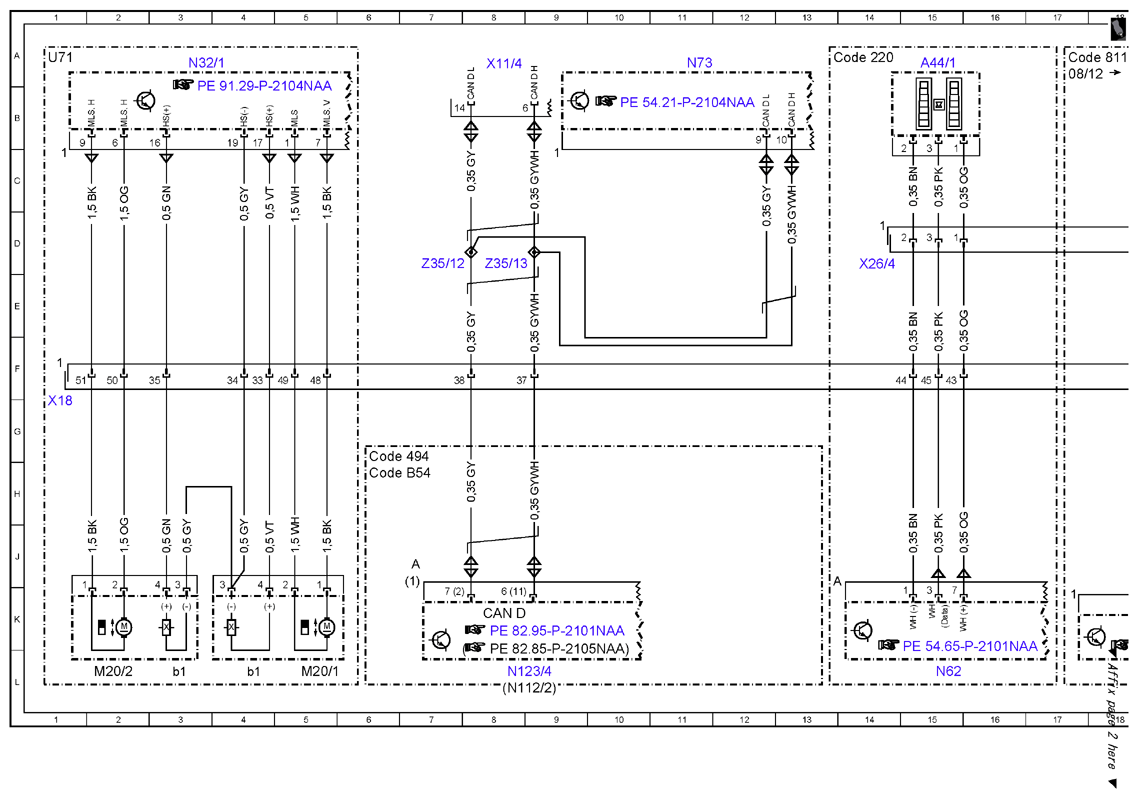

| A44/1 |
Front parking system warning indicator |
15A |
| A9 |
Refrigerant compressor |
50L |
| A9 |
Refrigerant compressor |
72A |

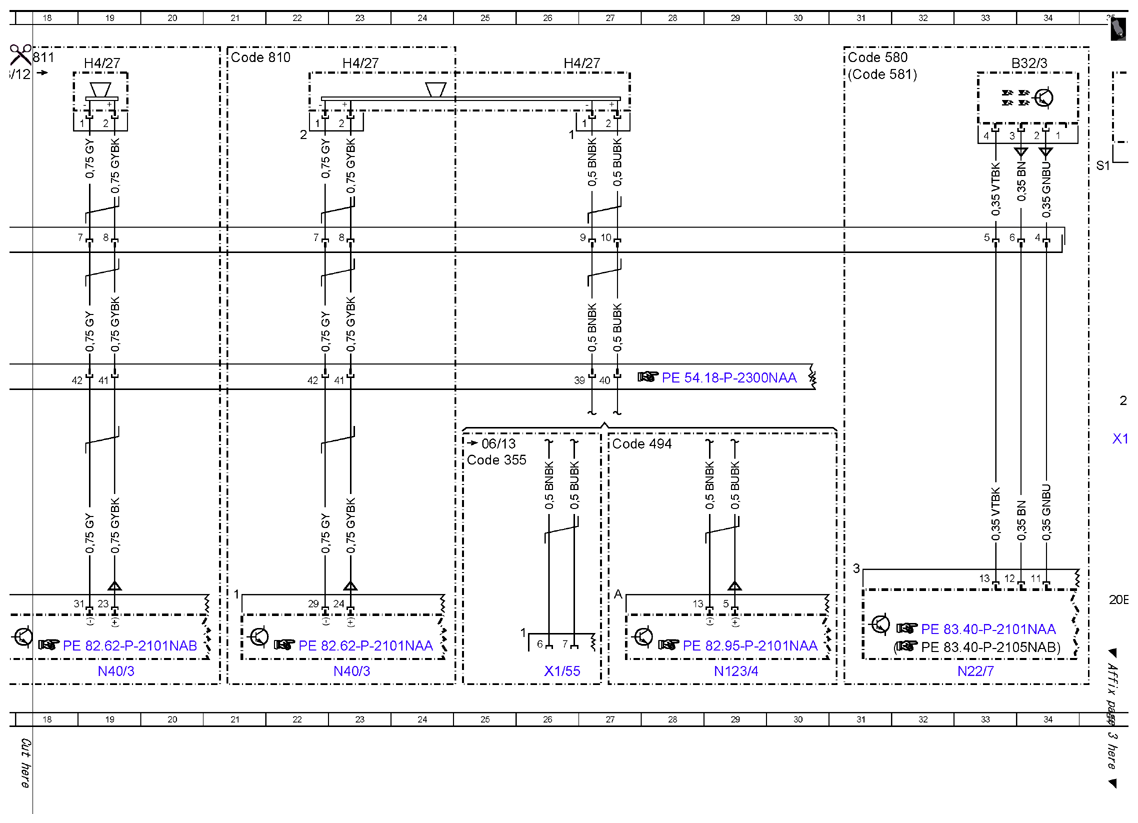

| B32/3 |
Sun sensor |
34A |

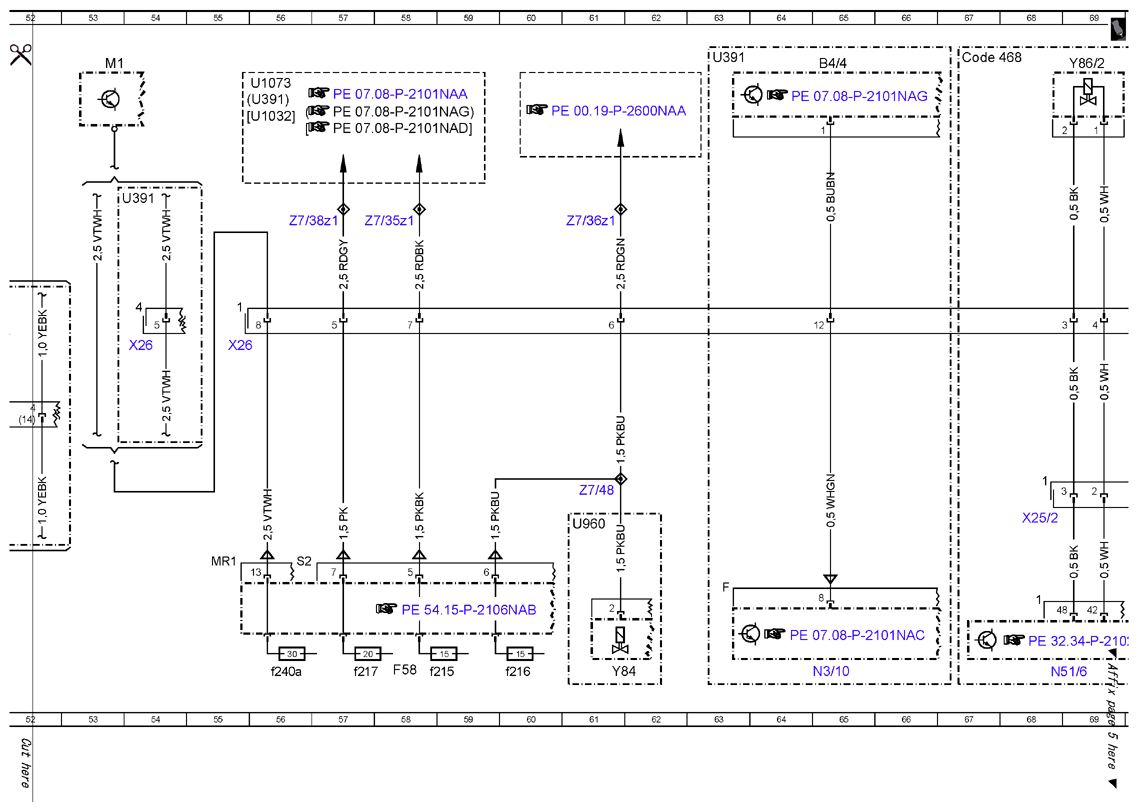

| B4/4 |
Purging pressure sensor |
65A |
| CAN D |
Diagnostic CAN |
8K |
| Code 220 |
PARKTRONIC |
13A |
| Code 355 |
Pre-installation for navigation retrofit |
25H |
| Code 468 |
Active roll stabilization |
67A |
| Code 494 |
USA version |
6G |
| Code 494 |
USA version |
27G |
| Code 580 |
Automatic air conditioning |
31A |
| Code 580 |
Automatic air conditioning |
44G |
| Code 580 |
Automatic air conditioning |
75G |
| Code 581 |
Comfort automatic air conditioning |
31A |
| Code 581 |
Comfort automatic air conditioning |
44H |
| Code 581 |
Comfort automatic air conditioning |
75G |
| Code 810 |
Sound system |
21A |
| Code 811 |
Extended sound system |
17A |
| Code B54 |
COM module |
6H |
| F3/2 |
Cockpit circuit 30 fuse box |
41L |
| F3/3 |
Cockpit circuit 30g fuse box |
37L |
| F33 |
Battery compartment prefuse box |
36A |
| F33 |
Battery compartment prefuse box |
43A |
| F33f32 |
Fuse 32 |
43B |
| F33f36 |
Fuse 36 |
39B |
| F33f65 |
Fuse 65 |
35B |
| F58 |
Engine compartment fuse and relay module |
58L |
| F58f215 |
Fuse 215 |
59L |
| F58f216 |
Fuse 216 |
60L |
| F58f217 |
Fuse 217 |
57L |
| F58f240a |
Fuse 240a |
56L |
| H4/27 |
Center instrument panel speaker |
19A |
| H4/27 |
Center instrument panel speaker |
23A |
| H4/27 |
Center instrument panel speaker |
26A |
| M1 |
Starter |
53A |
| M20/1 |
Steering column in/out adjustment motor |
5L |
| M20/1b1 |
Steering column in/out Hall sensor |
3L |
| M20/2 |
Steering column up/down adjustment motor |
2L |
| M20/2b1 |
Steering column up/down Hall sensor |
4L |
| N112/2 |
Telematics services communication module |
8L |
| N123/4 |
Emergency call system control unit |
8L |
| N123/4 |
Emergency call system control unit |
29L |
| N22/7 |
Automatic air conditioning control and operating unit |
33L |
| N22/7 |
Automatic air conditioning control and operating unit |
46L |
| N22/7 |
Automatic air conditioning control and operating unit |
77L |
| N3/10 |
ME-SFI [ME] control unit |
65L |
| N32/1 |
Driver seat control unit |
3A |
| N40/3 |
Sound system amplifier control unit |
19L |
| N40/3 |
Sound system amplifier control unit |
23L |
| N51/6 |
Active roll stabilization control unit |
68L |
| N62 |
Parking system control unit |
15L |
| N73 |
Electronic ignition switch control unit |
11A |
| U1032 |
Valid for engine 278 and 157 |
55B |
| U1073 |
Valid for gasoline engine 276.9 |
56B |
| U391 |
Valid for gasoline engine 276.8 |
53C |
| U391 |
Valid for gasoline engine 276.8 |
55B |
| U391 |
Valid for gasoline engine 276.8 |
63A |
| U71 |
Valid for fully electric seat adjustment with memory function |
1A |
| U75 |
Valid for gasoline engines |
50E |
| U880 |
Valid for engine 642 |
48E |
| U948 |
Valid for diesel engine 651 |
50E |
| U960 |
Valid for radiator shutters |
61J |
| W2 |
Right front ground point at lamp unit |
74G |
| X1/55 |
External navigation electrical connector |
26L |
| X11/4 |
Diagnostic connector |
8A |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
1G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
35G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
76H |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
49G |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
68H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
47E |
| X26 |
Interior and engine wiring harness electrical connector |
51G |
| X26 |
Interior and engine wiring harness electrical connector |
54F |
| X26 |
Interior and engine wiring harness electrical connector |
55F |
| X26/31 |
Engine/engine compartment electrical connector |
51G |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
14D |
| Y84 |
Radiator shutters actuator |
61L |
| Y86/2 |
Active roll stabilization intake throttle valve |
69A |
| Z35/12 |
Diagnostic CAN low connector sleeve |
7D |
| Z35/13 |
Diagnostic CAN high connector sleeve |
8D |
| Z6z2 |
Circuit 31 connector sleeve |
73D |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
58D |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
61D |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
57D |
| Z7/48 |
Circuit 87D2 connector sleeve |
61H |
