| A0 |
Color code key |
40L |
| F4 |
Rear fuse box |
4L |
| F4 |
Rear fuse box |
24L |
| F4f102 |
Fuse 102 |
2L |
| F4f103 |
Fuse 103 |
21L |
| F4f127 |
Fuse 127 |
3L |
| F4f129 |
Fuse 129 |
23L |

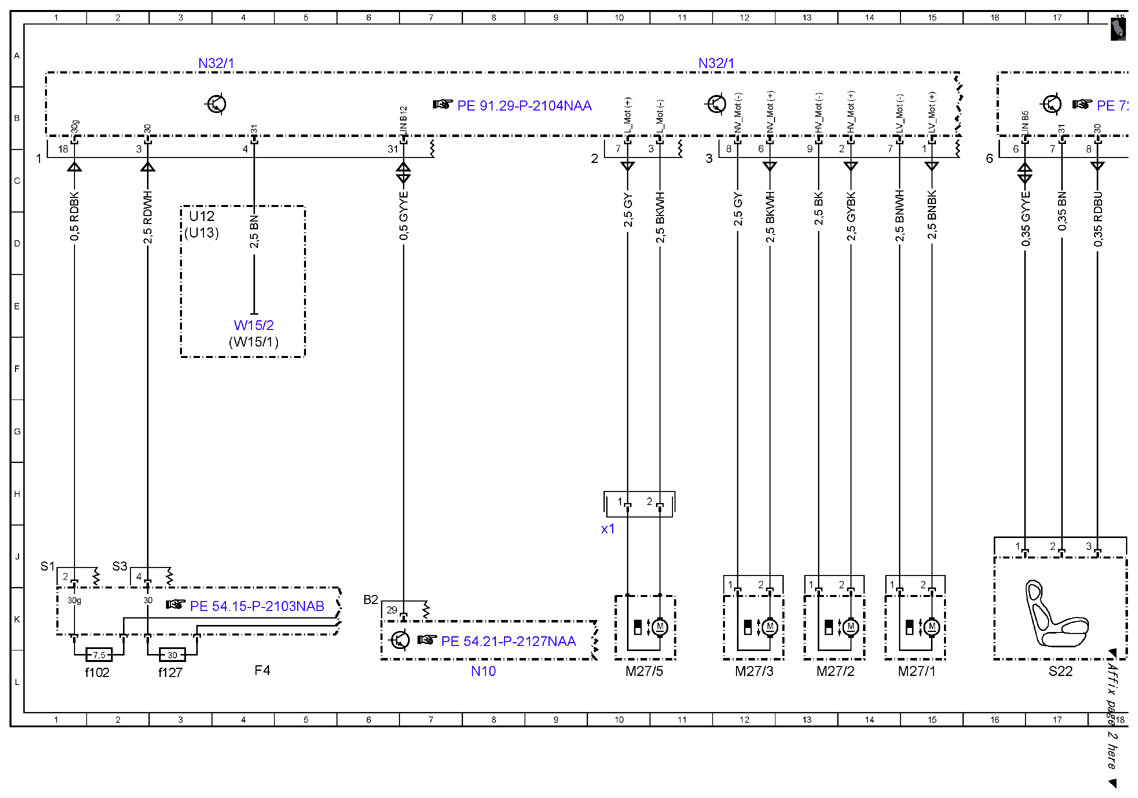

| M27/1 |
Driver seat fore/aft adjustment motor |
15L |
| M27/2 |
Driver seat height adjustment motor |
13L |
| M27/3 |
Driver seat inclination adjustment motor |
12L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
10L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
10J |
| M28/1 |
Front passenger seat fore/aft adjustment motor |
34L |
| M28/2 |
Front passenger seat height adjustment motor |
33L |
| M28/3 |
Front passenger seat inclination adjustment motor |
32L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
30L |
| M28/5x1 |
Seat backrest inclination adjustment motor electrical connector, front passenger seat |
30J |
| N10 |
SAM control unit |
8L |
| N10 |
SAM control unit |
28L |

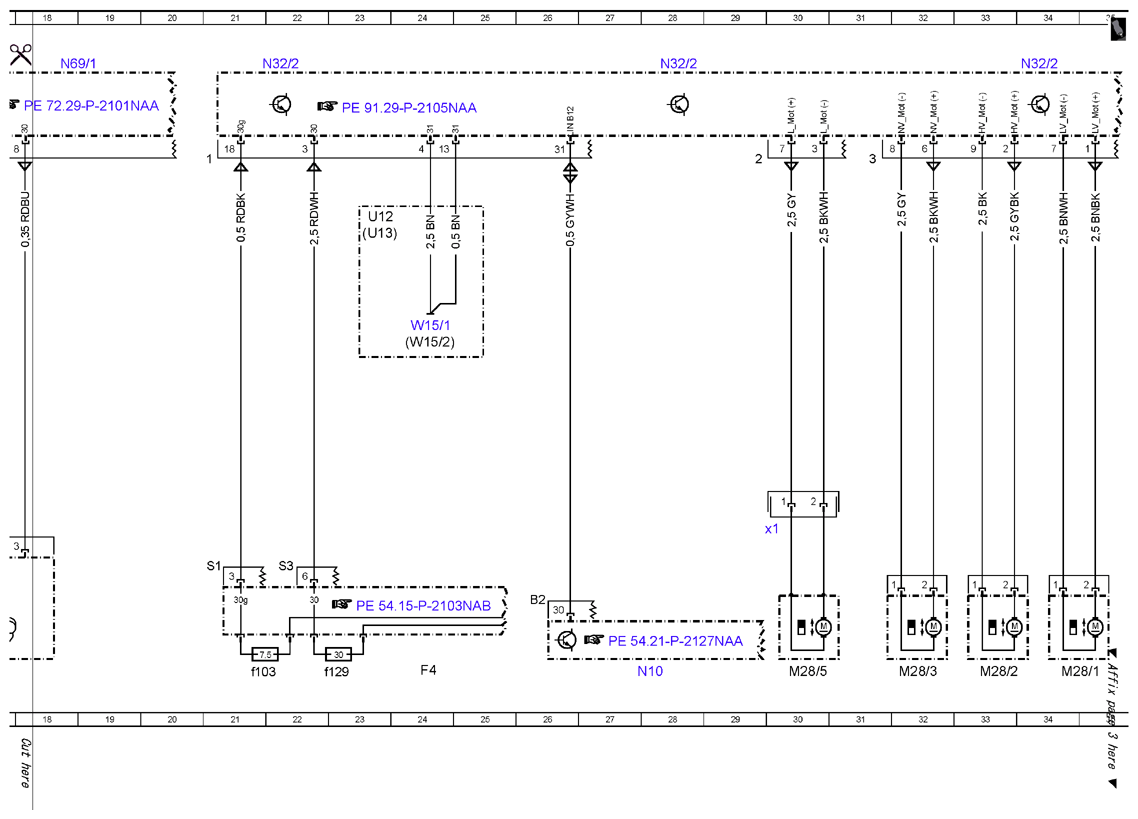

| N32/1 |
Driver seat control unit |
3A |
| N32/1 |
Driver seat control unit |
11A |
| N32/2 |
Front passenger seat control unit |
28A |
| N32/2 |
Front passenger seat control unit |
34A |
| N32/2 |
Front passenger seat control unit |
22A |

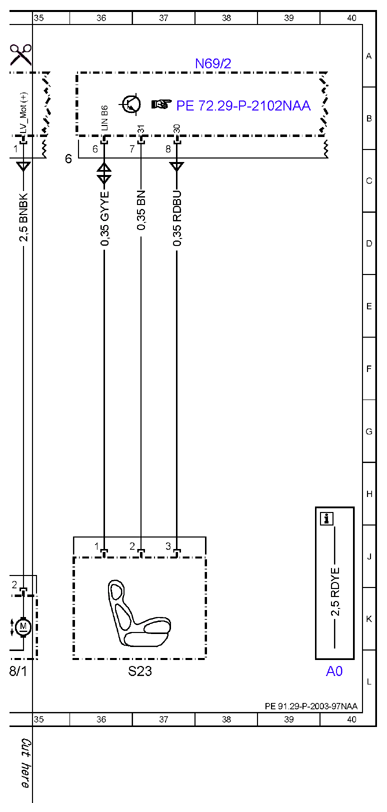

| N69/1 |
Left front door control unit |
18A |
| N69/2 |
Right front door control unit |
38A |
| S22 |
Left front seat adjustment switch group |
17L |
| S23 |
Right front seat adjustment switch group |
37L |
| U12 |
Valid for left-hand drive vehicles |
3D |
| U12 |
Valid for left-hand drive vehicles |
23D |
| U13 |
Valid for right-hand drive vehicles |
3D |
| U13 |
Valid for right-hand drive vehicles |
23D |
| W15/1 |
Right footwell ground point |
4F |
| W15/1 |
Right footwell ground point |
24E |
| W15/2 |
Left footwell ground point |
4E |
| W15/2 |
Left footwell ground point |
24F |
