Remove/install gas-operated strut on engine hood - AR88.40-P-3010GQ

MODEL 166

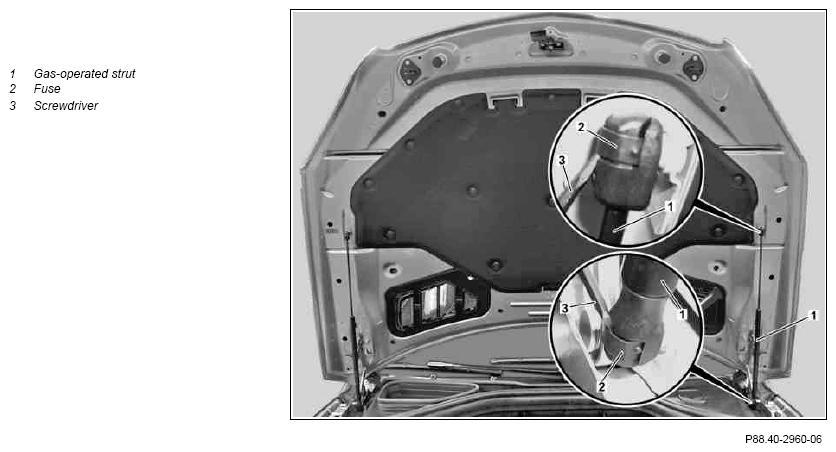

Fig 1: Identifying Gas-Operated Strut On Engine Hood Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from fingers being pinched or jammed when working on gas struts under pressure	Only remove and install pneumatic springs when they are not under tension and when the components are properly secured.	AS00.00-Z-0012-01A
1	Open engine hood and move to vertical position		AR88.40-P-1000GQ
2	Lift upper retainer (2) and lower retainer (2) with suitable screwdriver (3) and unclip gas pressure strut (1) from mounts	Do not remove retainers (2). Otherwise tension is lost. Do not remove both gas-filled struts (1) simultaneously. If, however, both gas pressure struts (1) are removed simultaneously, secure engine hood against falling down. Clip gas pressure strut (1) into mounts with retainers (2) installed. When replacing gas_filled struts (1) dispose of old part.
3	Install in the reverse order
