| A0 |
Color code key |
23L |
| A40/3 |
COMAND control unit |
15L |

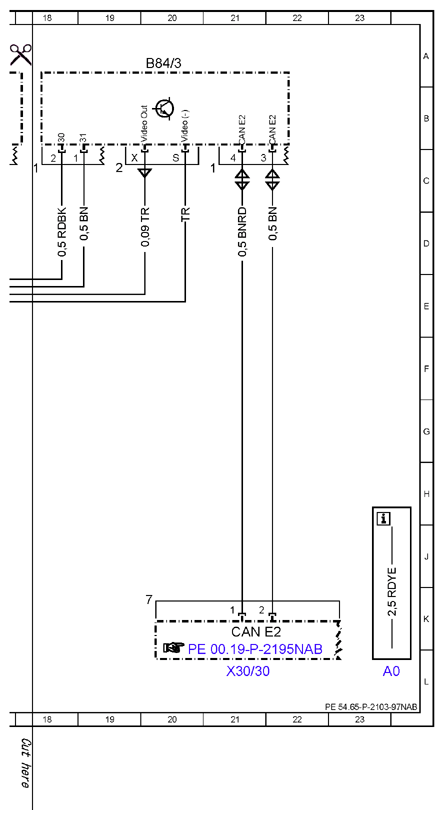

| B84/3 |
Backup camera |
20A |
| B84/6 |
Passenger-side outside mirror backup camera |
11L |
| CAN E2 |
Chassis CAN 2 |
21K |
| F33 |
Battery compartment prefuse box |
3L |
| F33MF2 |
Multiple fuse 2 |
1K |
| F4 |
Rear fuse box |
7L |
| F4f137 |
Fuse 137 |
6L |

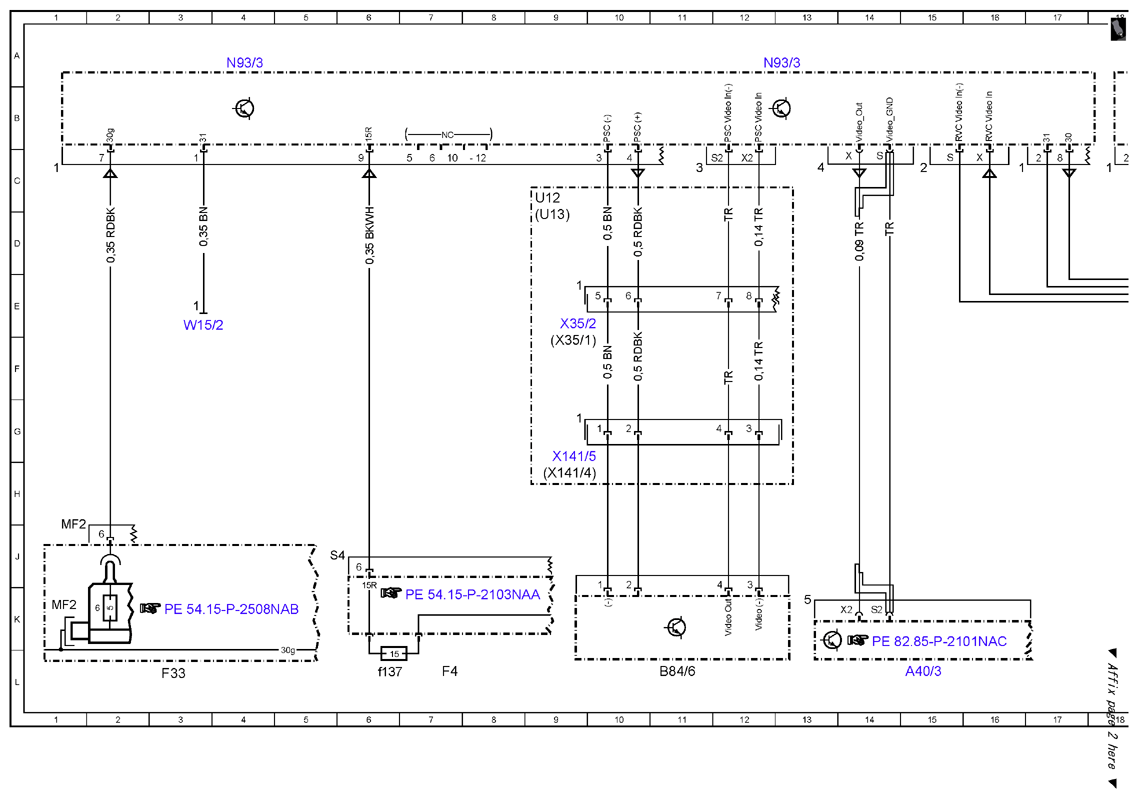

| N93/3 |
Reversing camera electronics |
4A |
| N93/3 |
Reversing camera electronics |
12A |
| U12 |
Valid for left-hand drive vehicles |
9C |
| U13 |
Valid for right-hand drive vehicles |
9D |
| W15/2 |
Left footwell ground point |
3E |
| X141/4 |
Left outside mirror camera electrical connector |
9H |
| X141/5 |
Right outside mirror camera electrical connector |
9G |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
21L |
| X35/1 |
Left front door electrical connector |
9F |
| X35/2 |
Right front door electrical connector |
9E |
