Remove/install outer rear wheel well - AR63.10-P-0665GQX

MODEL 166.8

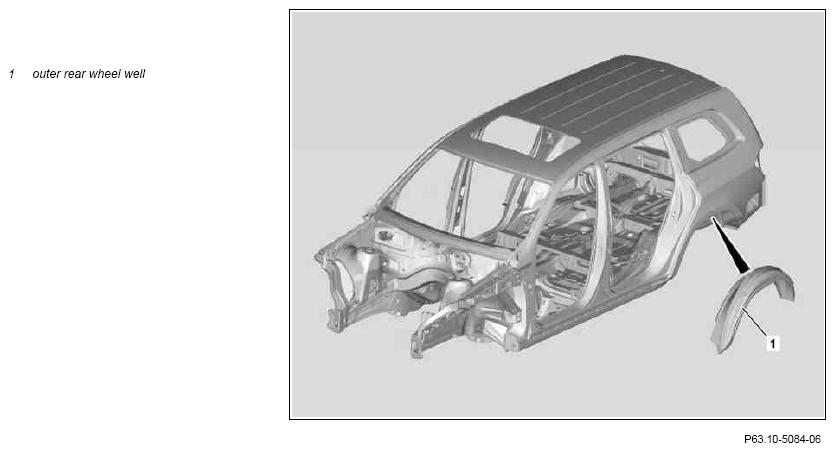

Fig 1: Identifying Outer Rear Wheel Well Remove/Install Components
G09980741Courtesy of MERCEDES-BENZ USA
REMOVING Remove
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
NOTES General information on body repair   AH60.00-N-0001-01A
NOTES Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
1 Remove all detachable parts in repair area IMPORTANT The fuel tank must be removed when replacing outer rear right wheel well (1).
2 Cover all detachable parts remaining in vehicle with welding protection blankets Welding protective blanket
3 Remove rear fender   AR63.50-P-1400GQX
4 Separate outer rear wheel well (1)   AR63.10-P-0660-01GQX
Wet and dry vacuum cleaner
Round wire brush
Weld-spot milling machine
Body keyhole saw
5 Prepare outer rear wheel well (1) for installation   AR63.10-P-0670-05GQX
Round wire brush
Body keyhole saw
INSTALLING Install
6 Install rear outer wheel well (1)   AR63.10-P-0670-06GQX
IMPORTANT General information on riveting AH60.00-P-0003-01 N
Gap dimension *BE60.00-P-1003-01Z
Gap dimension *BE60.00-P-1001-01Z
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
Blind rivet, 6.5 x 14.5
Multifunction device (spot welding)
Blind/self-piercing riveting
Tools for disassembly/assembly
*BR00.45-Z-1016-13A
7 Adjust gap dimensions on hoods, doors and lids   AR60.00-P-0700-01GQ
Gap dimension *BE60.00-P-1003-01Z
Gap dimension *BE60.00-P-1001-01Z
SPECIAL TOOL Feeler gauge Figure
8 Install rear fender   AR63.50-P-1400GQX
9 Clean weld joints and sheet metal flanges with rotary wire brush Round wire brush
10 Remove welding protection blankets IMPORTANT On all covered parts remaining in vehicle.
11 Clean repair areas Wet and dry vacuum cleaner
DANGER Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. AS98.00-Z-0002-01A
12 Prime repair area using primer filler IMPORTANT Use only primer filler approved by Daimler AG.
13 Carry out seam sealing after repairs   AR97.10-P-4000GQ
IMPORTANT Supplement standard sealant with sealant
DANGER Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. AS98.00-Z-0002-01A
14 Paint repair areas and adjacent surfaces IMPORTANT Use only paints approved by Daimler AG.
15 Apply additional cavity preservation Cavity preservation following repair work AR97.20-P-1500GQ
16 Install all detachable body components in area to be repaired
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 166
BE60.00-P-1003-01Z Gap dimension Liftgate to bumper at bottom Dimension "L" mm 5, 5 (±1, 5)
Liftgate to rear fender Dimension "J" mm 4, 8 (±1)
Liftgate to bumper at side Dimension "K" mm 4, 9 (±1, 3)
Liftgate to roof Dimension "W" mm 5, 5 (±1, 5)
Rear fender to lamp unit Dimension "M" mm 1, 4 (±0, 7)
  AR60.00-P-0700-01G Q
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 166
BE60.00-P-1001-01Z Gap dimension Engine hood to fender Dimension "A" mm 3, 8 (±1)
Engine hood to headlamp Dimension "B" mm 3, 9 (±1)
Engine hood to bumper Dimension "C" mm 5, 4 (±1, 5)
Fender to A-pillar Dimension "D" mm 3, 5 (±1)
Front door to fender Dimension "E" mm 4, 3 (±0, 7)
Front door to rear door Dimension "F" mm 4, 8 (±0, 7)
Rear door to rear fender Dimension "I" mm 4, 3 (±0, 7)
  AR60.00-P-0700-01G
Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
G07699374Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1016-13A Blind rivet, 6.5 x 14.5 A 004 990 17 97
