Remove/Install Fanfare Horns - AR54.35-P-1555GQ
MODEL 166
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift. | AR00.60-P-1000GZ | |
| 2 | Remove right front section of fender liner | AR88.10-P-1310GQ | |

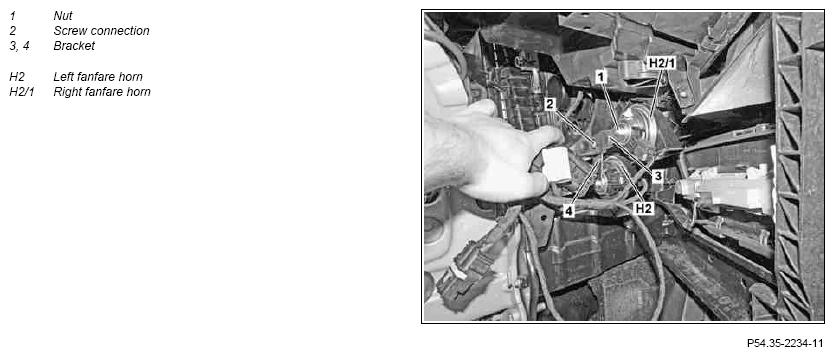

| 3 | Release and disconnect electrical connection from horns (H2 or H2/1) | ||
| 4 | Unscrew nut (1) and remove horn (H2/1) from brackets (3) | *BA54.35-P-1004-01E | |
| 5 | Remove threaded connection (2) and remove brackets (3, 4) along with horn (H2) | ||
| *BA54.35-P-1005-01E | |||
| 6 | Install in the reverse order |
SIGNALING SYSTEM
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA54.35-P-1004-01E | Nut, fanfare horn to bracket | Nm | 6 |
| BA54.35-P-1005-01E | Nut, horn bracket to crossmember | Nm | 6 |
