Remove/Install 360° Camera In Outside Mirror - AR54.30-P-3002GQ

MODEL 166 with CODE 501 (360 degree camera)

Shown on model 166.873

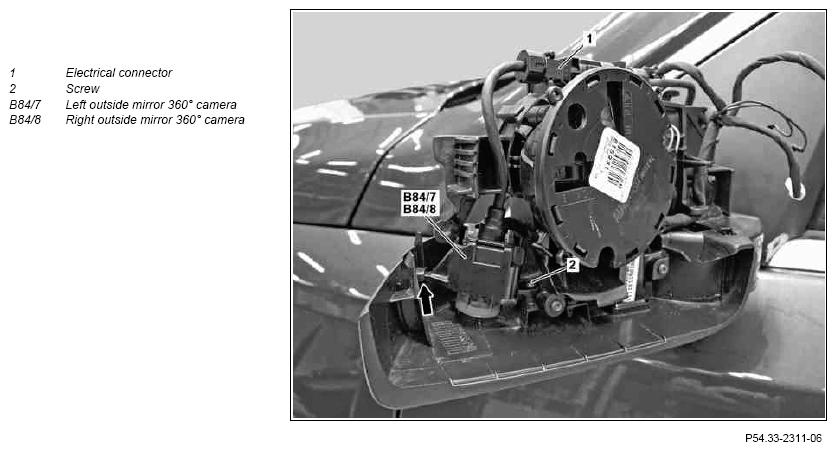

Fig 1: Identifying 360° Camera In Outside Mirror Remove/Install Components - Shown On Model 166.873

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition
2	Remove upper cover of corresponding outside mirror		AR88.70-P-9040RTA
3	Release and disconnect electrical connector (1)	Check electrical feed line is correctly routed and attached.
4	Remove screw/bolt (2)
5	Carefully disengage camera, 360° camera for left outside mirror (B84/7) or camera 360° camera for right outside mirror (B84/8) from lower cover (arrow) of outside mirror and then remove	Exercise caution when handling camera, 360° camera for left outside mirror (B84/7) or camera 360° camera for right outside mirror (B84/8). The lens will otherwise be damaged. Check electrical feed line is correctly routed and attached.
6	Install in the reverse order
7	Calibrate 360° camera for left outside mirror (B84/7) or 360° camera for right outside mirror (B84/8) using Star Diagnosis
			AD00.00-P-2000-04A
