Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001A

MODEL 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242

MODEL 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013

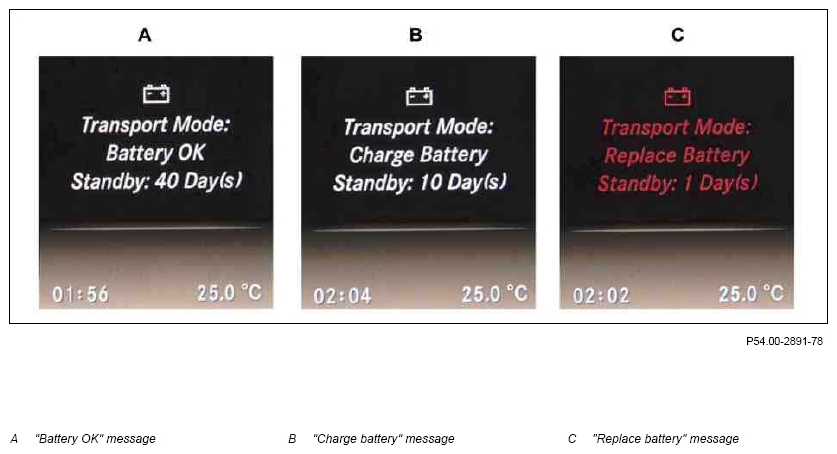

Fig 1: Display - Deactivate Transport Mode Screen
G09976881Courtesy of MERCEDES-BENZ USA

Shown here are the different system states in the instrument cluster with an active transport mode (Display always in English)

INSPECT Check
1 Turn transmitter key to stage 2 (circuit 15) and check whether the "Transport mode" message is shown on the instrument cluster IMPORTANT The transport mode is to be deactivated as part of the delivery inspection procedure before vehicle handover to the customer. It must be ensured that the "Battery OK" (A) message is shown on the instrument cluster before deactivation.
IMPORTANT Activation is only possible for a total vehicle distance of 350 km.
If transport mode is no longer active:
↓
Activate transport mode again in rear SAM control unit using diagnostic system at "Actuation" menu item.
REFER TO SELF-DIAGNOSTIC SYSTEMS MODEL 117, 156, 166.8, 176, 218.9, 231, 242
MODEL 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246
as of model year 2013		 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS MODEL 190, 205, 217, 222 AD00.00-P-2000-04B
2 Charge battery If "Charge battery" (B) message is shown on the instrument cluster.
MODEL 190 AR54.10-P-1130RG
MODEL 197
as of model year 2013
MODEL 204, 207.3/4, 212, 218.3 as of model year 2013
MODEL 218.9		 AR54.10-P-1130CW
MODEL 166.0
as of model year 2013
MODEL 166.8		 AR54.10-P-1130GZ
MODEL 117, 156, 176, 242
MODEL 246
as of model year 2013		 AR54.10-P-1130NKB
MODEL 172
as of model year 2013		 AR54.10-P-1130V
MODEL 205 AR54.10-P-1130LW
MODEL 217, 222 AR54.10-P-1130LF
MODEL 231 AR54.10-P-1130RK
3 Replace battery MODEL 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242
MODEL 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246
as of model year 2013
If "Replace battery" (C) message is shown on the instrument cluster.
MODEL 190 AR54.10-P-0005RG
MODEL 217 AR54.10-P-0005LC
MODEL 197
as of model year 2013		 AR54.10-P-0005RQ
MODEL 172
as of model year 2013		 AR54.10-P-0005W
MODEL 117, 156, 176, 242
MODEL 246
as of model year 2013		 AR54.10-P-0005NKB
MODEL 166.0
as of model year 2013		 AR54.10-P-0005GZ
MODEL 166.8
MODEL 204
as of model year 2013		 AR54.10-P-0005CW
MODEL 205 (except 205.08/28/38)
without CODE ME04 (Hybrid drive, 20KW variant)
without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))		 AR54.10-P-0005LW
MODEL 207.3/4, 212, 218.3 as of model year 2013
MODEL 218.9		 AR54.10-P-0005EW
MODEL 222 (except 222.07/17)
without CODE ME04 (Mild hybrid drive)
MODEL 222.176
with CODE Z07 (Top protection)		 AR54.10-P-0005LF
MODEL 222 (except 222.07/17)
with CODE ME04 (Mild hybrid drive)
MODEL 222.07/177/178/179
MODEL 222.176
without CODE Z07 (Top protection)		 AR54.10-P-0005LFA
MODEL 231 AR54.10-P-0005RK
4 Document the residual service life shown on the instrument cluster * Only for Germany and if "Battery OK" (A) message shown on instrument cluster.
↓
Perform delivery and hand-over inspection
REFER TO MAINTENANCE   MODEL 117, 156, 166.8, 176, 205, 217, 218.9, 222, 231, 242
MODEL 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246
as of model year 2013		 AP00.20-P-1100B
  Deactivation
5 Deactivate transport mode using button combination   AR54.00-P-0001-01A
6 Document deactivation of transport mode * For Germany only
↓
Perform delivery and hand-over inspection
REFER TO MAINTENANCE   MODEL 117, 156, 166.8, 176, 205, 217, 218.9, 222, 231, 242
MODEL 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246
as of model year 2013		 AP00.20-P-1100B
