Check Condition Of Additional Battery - AR54.10-P-1128W
MODEL 166, 172 with CODE B03 (ECO start/stop function)
MODIFICATION NOTES
| 6.3.13 | Battery Capacity 12 Ah | BE54.10-P-1001-01A |
| Remove | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||

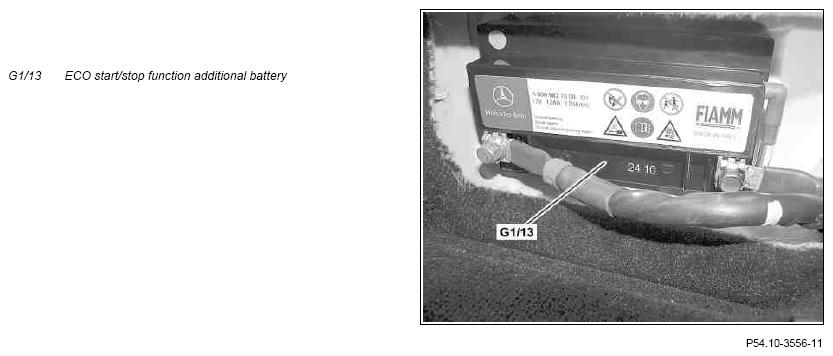

| 1 | Expose ECO start/stop function additional battery (G1/13) | MODEL 172 | AR54.10-P-0007W |
| MODEL 166.8 | AR54.10-P-0007GQX | ||
| MODEL 166.0 | AR54.10-P-0007GQA | ||
| Check | |||
| 2 | Check ECO start/stop function additional battery (G1/13) for external leakage | If leaks found, replace additional battery for ECO start/stop function (G1/13). ↓ Remove/install additional battery |
|
| MODEL 172 | AR54.10-P-0007W | ||
| MODEL 166.8 | AR54.10-P-0007GQX | ||
| MODEL 166.0 | AR54.10-P-0007GQA | ||
| 3 | Check additional battery for ECO start/stop function (G1/13) | AR54.10-P-1129-01A | |
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| 4 | Reduce increased voltage after charging process | For an ECO start/stop function additional battery (G1/13) that is disconnected from the on-board electrical system and if the message "Surface voltage" is in the display of the Midtronics battery tester. | |
| Check battery |
AR54.10-P-1129-01A | ||
| 5 | Charge additional battery for ECO start/stop function (G1/13) | With the test code "Charge and check" on the Midtronics battery tester. | |
| MODEL 172 | AR54.10-P-1130V | ||
| MODEL 166 | AR54.10-P-1130GZ | ||
| Install | |||
| 6 | Install remaining parts | MODEL 172 | AR54.10-P-0007W |
| MODEL 166.8 | AR54.10-P-0007GQX | ||
| MODEL 166.0 | AR54.10-P-0007GQA |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | MODEL ALL | |||
|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity 12 Ah | Cold cranking amps | As per EN | A | 170 |
