Charge Battery - AR54.10-P-1130GZ
MODEL 164, 166, 292
Shown on model 166.873 with installed on-board electrical system battery

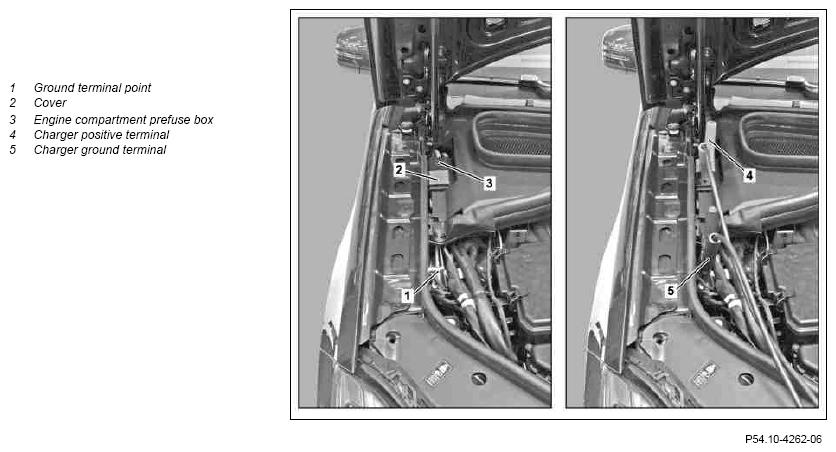

Fig 1: Identifying Engine Compartment Pre-Fuse Box, Cover And Ground Terminal Point - Shown On Model 166.873
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Check | |||
| 1 | Check condition of on-board electrical system battery | Not with active transport mode. | |
| AR54.10-P-1129GZ | |||
| Charging | |||
| 2 | Connect charger to on-board electrical system battery | With on-board electrical system battery removed. There is a risk of short circuit otherwise. |
|
| 3 | Open engine compartment prefuse box (3) by moving cover (2) | With on-board electrical system battery installed. | |
| 4 | Connect positive terminal of charger (4) to charging terminal point of engine compartment prefuse box (3) and ground terminal of charger (5) to ground terminal point (1) | With on-board electrical system battery installed. There is a risk of short circuit otherwise. |
|
| 5 | Charge on-board electrical system battery | ||
| WS54.00-P-0037B | |||
The battery is sufficiently charged when the charging current reading is < 25 A. |
|||
| 6 | Disconnect battery charger | There is otherwise a risk of spark formation. |
|
| Check | |||
| 7 | Check condition of on-board electrical system battery | AR54.10-P-1129GZ |
