Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997GN

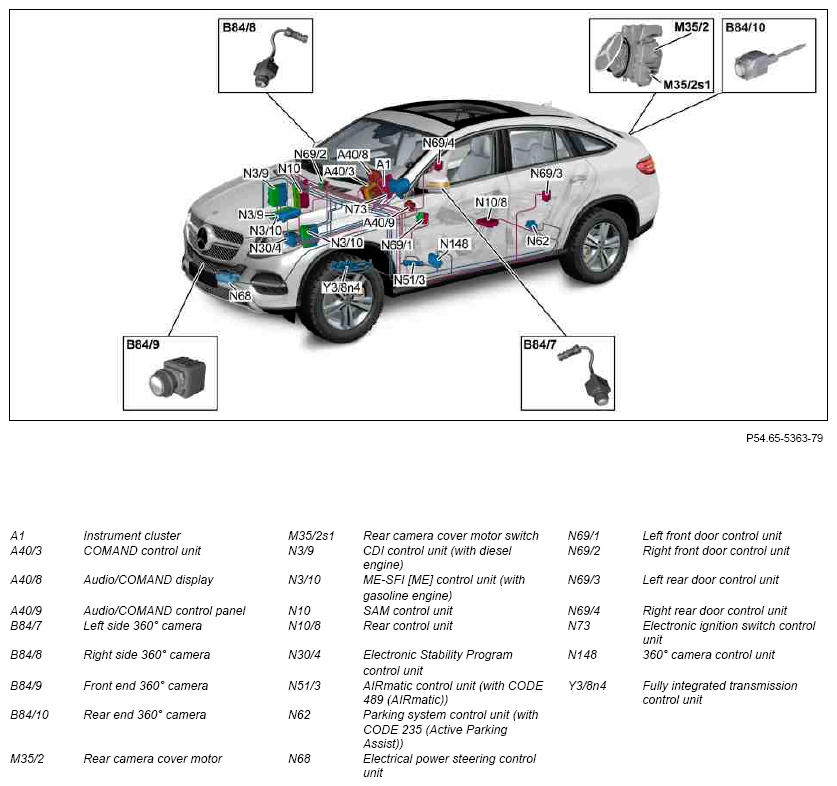

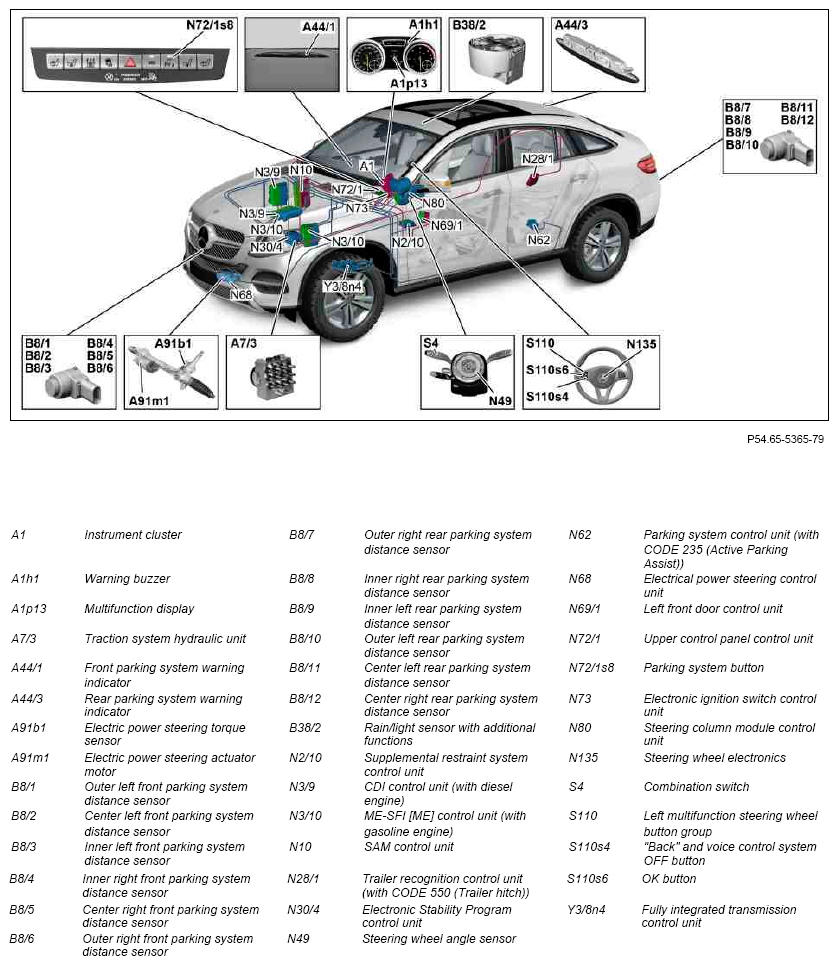

MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera)

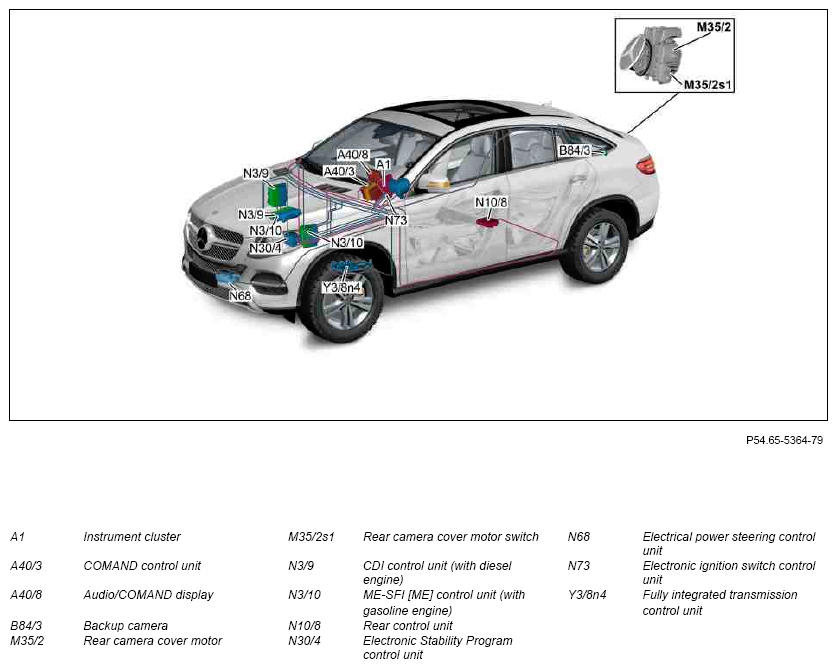

MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera)
| Component description for instrument cluster | A1, A1h1, A1p13, | GF54.30-P-6000GN | |
| Component description for COMAND controller unit | MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) with CODE 531 (COMAND APS) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136GN | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GN | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GN | |
| Reversing camera component description | B84/3 | GF54.65-P-5040GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with ENGINE 642 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF07.16-P-6000OGF | |
| MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | MODEL 166.063 with ENGINE 276.8 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF07.61-P-6000MMM | |
| MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with ENGINE 276.8 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF07.61-P-6000MMX | ||
| MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with ENGINE 157.9, 278.9 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF07.61-P-6000MMY | ||
| MODEL 166 with ENGINE 276.9 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) N3/10 |
GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for trailer recognition control unit | MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) with CODE 550 (Trailer coupling) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | MODEL 166 (except 166.063) as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF42.45-P-5119GN | |
| MODEL 166.063 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) N30/4 |
GF42.45-P-5119GRH | ||
| AIRMATIC control unit, component description | MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 489 (AIRMATIC) with CODE 501 (360° camera) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 489 (AIRMATIC) with CODE 501 (360° camera) N51/3 |
GF32.22-P-5110GN | |
| Parking system control unit component description | MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) N62 |
GF54.65-P-5002GN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021GN | |
| Upper control panel control unit, component description | N72/1, N72/1s8 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for 360 degree viewing system control unit | MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) MODEL 292 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) N148 |
GF54.65-P-5003GN | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) |
GF27.60-P-5165ANF | |
| MODEL 292 with TRANSMISSION 725.0 with CODE 218 (Rear view camera) with CODE 235 (Active Parking Assist) with CODE 501 (360° camera) Y38n4 |
GF27.60-P-5165ANJ | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GN |
