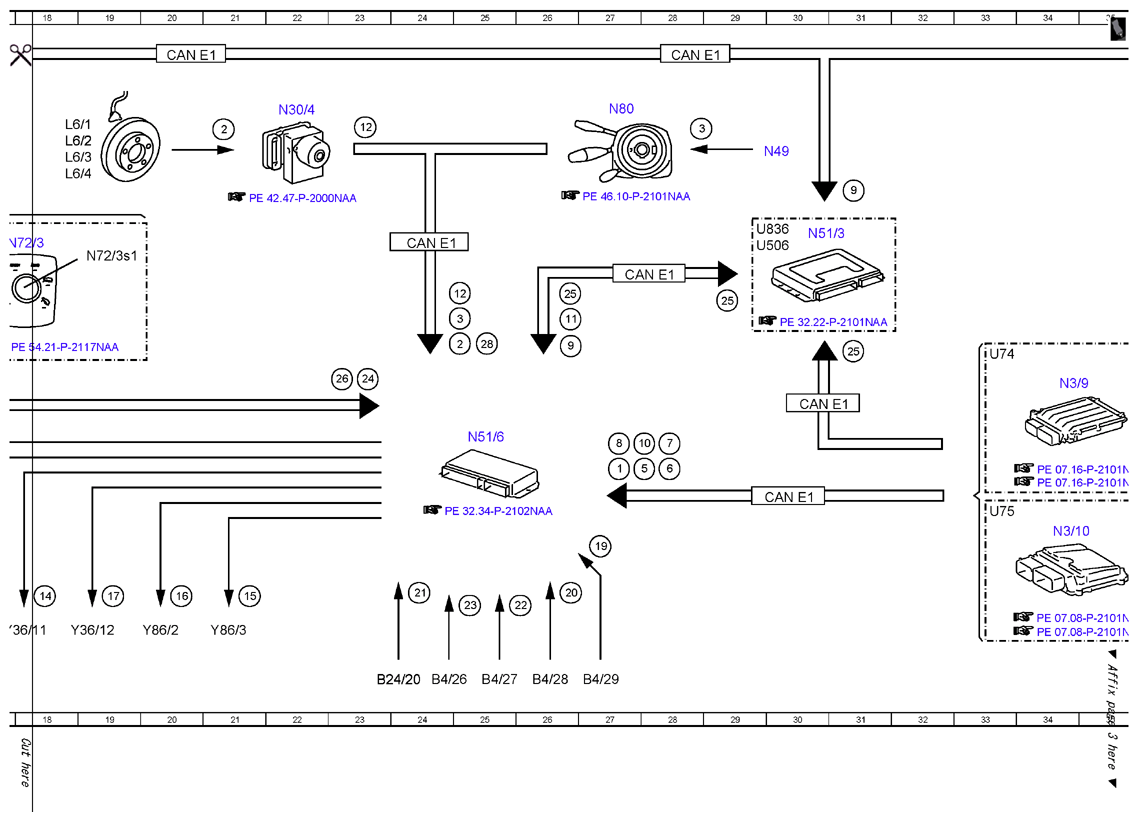

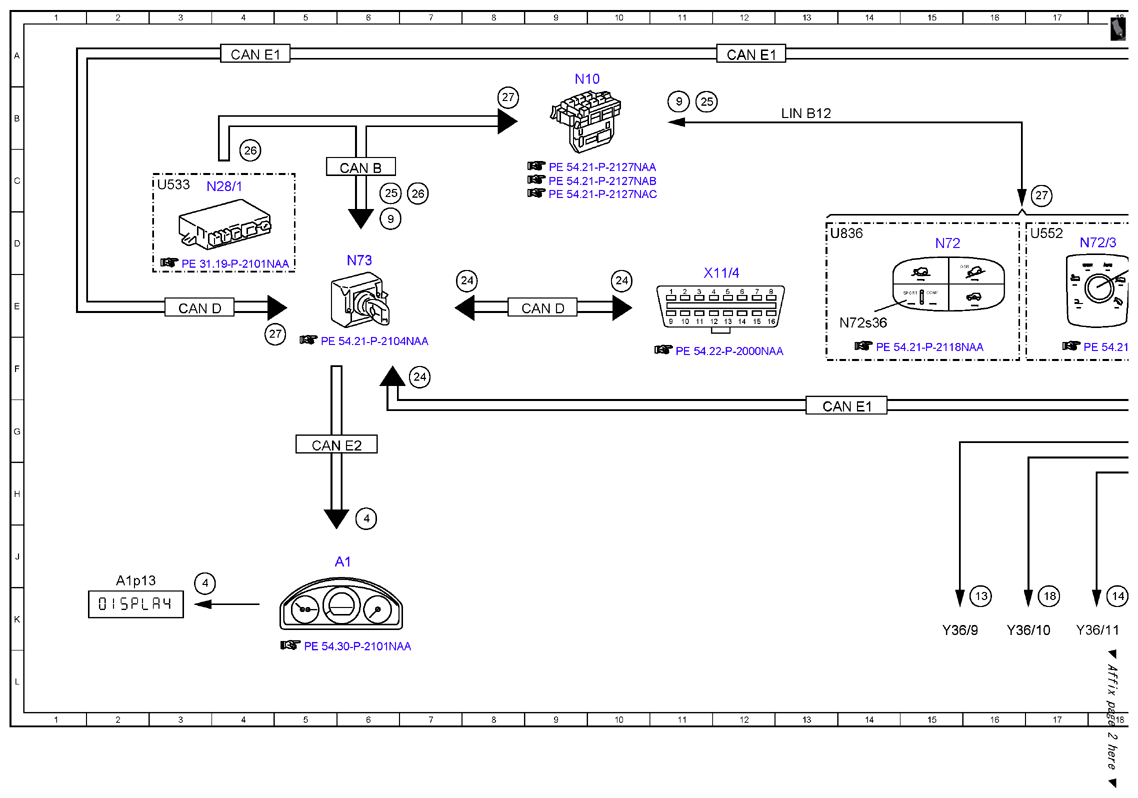

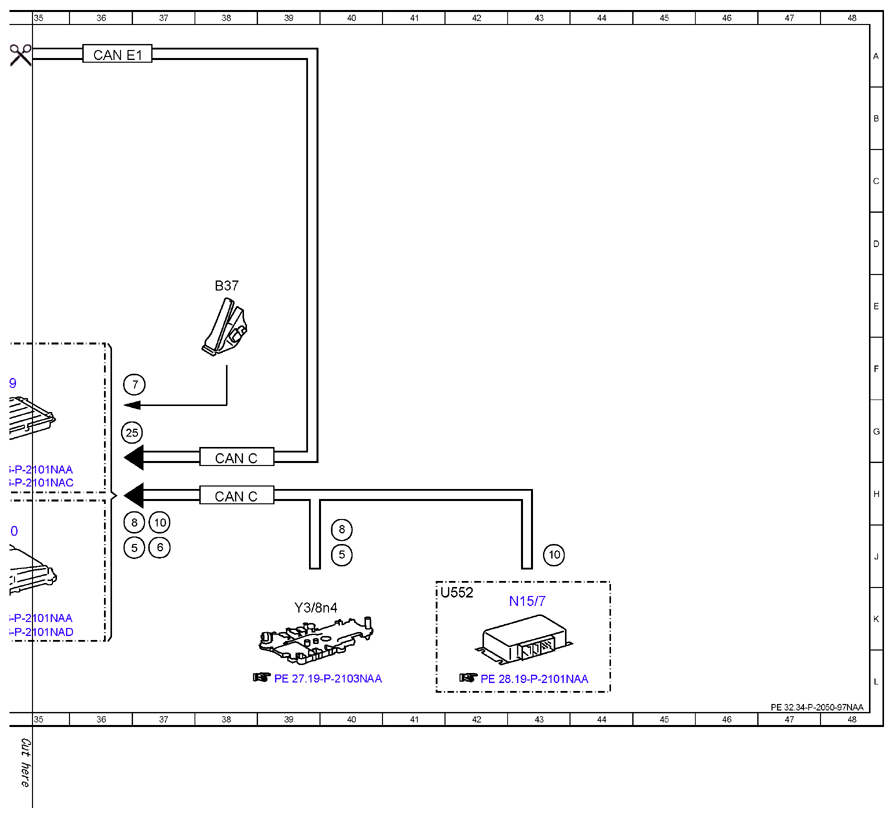

| 1 |
Engine running, signal |
27H |
| 10 |
Transfer case, status |
43J |
| 10 |
Transfer case, status |
37J |
| 10 |
Transfer case, status |
27G |
| 11 |
Vehicle level, status |
26E |
| 12 |
ESP®, status |
23B |
| 12 |
ESP®, status |
25E |
| 13 |
Active roll stabilization rear axle directional control valve, actuation |
16K |
| 14 |
Active roll stabilization front axle directional control valve, actuation |
18K |
| 15 |
Active roll stabilization safety valve, actuation |
21K |
| 16 |
Active roll stabilization intake throttle valve, actuation |
20K |
| 17 |
Active roll stabilization front axle pressure regulating valve, actuation |
19K |
| 18 |
Active roll stabilization rear axle pressure regulating valve, actuation |
17K |
| 19 |
Active roll stabilization front axle pressure sensor 2, signal |
27J |
| 2 |
Wheel speed, signal |
21B |
| 2 |
Wheel speed, signal |
25F |
| 20 |
Active roll stabilization front axle pressure sensor 1, signal |
26K |
| 21 |
Active roll stabilization lateral acceleration sensor, signal |
24K |
| 22 |
Active roll stabilization rear axle pressure sensor 2, signal |
26K |
| 23 |
Active roll stabilization rear axle pressure sensor 1, signal |
25K |
| 24 |
Diagnosis, communication |
8E |
| 24 |
Diagnosis, communication |
10E |
| 24 |
Diagnosis, communication |
23F |
| 24 |
Diagnosis, communication |
7F |
| 25 |
Off-Road package transmission mode controller, status |
29E |
| 25 |
Off-Road package transmission mode controller, status |
6C |
| 25 |
Off-Road package transmission mode controller, status |
11B |
| 25 |
Off-Road package transmission mode controller, status |
26E |
| 25 |
Off-Road package transmission mode controller, status |
31F |
| 25 |
Off-Road package transmission mode controller, status |
36G |
| 26 |
Trailer recognition, status |
4C |
| 26 |
Trailer recognition, status |
7C |
| 26 |
Trailer recognition, status |
23F |
| 27 |
Light-emitting diode, request |
|
| 27 |
Light-emitting diode, request |
|
| 27 |
Light-emitting diode, request |
|
| 28 |
Steering wheel velocity, signal |
25F |
| 3 |
Steering wheel angle sensor, signal |
25E |
| 3 |
Steering wheel angle sensor, signal |
28B |
| 4 |
Instrument cluster, message |
6H |
| 4 |
Instrument cluster, message |
3J |
| 5 |
Transmission control, status |
28H |
| 5 |
Transmission control, status |
40J |
| 5 |
Transmission control, status |
37J |
| 6 |
Gear range, status |
28H |
| 6 |
Gear range, status |
37J |
| 7 |
Accelerator pedal sensor, signal |
37F |
| 7 |
Accelerator pedal sensor, signal |
28G |
| 8 |
Selector lever position, status |
37J |
| 8 |
Selector lever position, status |
40J |
| 8 |
Selector lever position, status |
27G |
| 9 |
Vehicle level button, status |
11B |
| 9 |
Vehicle level button, status |
6D |
| 9 |
Vehicle level button, status |
26F |
| 9 |
Vehicle level button, status |
31C |
| A1 |
Instrument cluster |
5J |
| A1p13 |
Multifunction display |
2J |
| B24/20 |
Active roll stabilization lateral acceleration sensor |
23L |
| B37 |
Accelerator pedal sensor |
38E |
| B4/26 |
Active roll stabilization rear axle pressure sensor 1 |
24L |
| B4/27 |
Active roll stabilization rear axle pressure sensor 2 |
25L |
| B4/28 |
Active roll stabilization front axle pressure sensor 1 |
26L |
| B4/29 |
Active roll stabilization front axle pressure sensor 2 |
27L |
| CAN B |
Interior CAN |
6C |
| CAN C |
Drive train CAN |
38H |
| CAN C |
Drive train CAN |
38H |
| CAN D |
Diagnostic CAN |
9E |
| CAN D |
Diagnostic CAN |
3E |
| CAN E1 |
Chassis CAN 1 |
30H |
| CAN E1 |
Chassis CAN 1 |
24D |
| CAN E1 |
Chassis CAN 1 |
27E |
| CAN E1 |
Chassis CAN 1 |
13G |
| CAN E1 |
Chassis CAN 1 |
4A |
| CAN E1 |
Chassis CAN 1 |
30G |
| CAN E1 |
Chassis CAN 1 |
12A |
| CAN E1 |
Chassis CAN 1 |
20A |
| CAN E1 |
Chassis CAN 1 |
28A |
| CAN E1 |
Chassis CAN 1 |
36A |
| CAN E2 |
Chassis CAN 2 |
5G |
| L6/1 |
Left front axle RPM sensor |
18B |
| L6/2 |
Right front axle RPM sensor |
18B |
| L6/3 |
Left rear axle RPM sensor |
18C |
| L6/4 |
Right rear axle RPM sensor |
18C |
| LIN B12 |
Center console switch LIN |
13B |
| N10 |
SAM control unit |
9A |
| N15/7 |
Transfer case control unit |
43K |
| N28/1 |
Trailer recognition control unit |
4C |
| N3/10 |
ME-SFI [ME] control unit |
34J |
| N3/9 |
CDI control unit |
34F |
| N30/4 |
Electronic Stability Program control unit |
22B |
| N49 |
Steering wheel angle sensor |
30C |
| N51/3 |
AIRMATIC control unit |
30D |
| N51/6 |
Active roll stabilization control unit |
25G |
| N72 |
Lower control panel control unit |
15D |
| N72/3 |
Off-Road operating panel control unit |
18D |
| N72/3s1 |
Off-Road package transmission mode controller |
19D |
| N72s36 |
Comfort/Sport button (ADS) |
14E |
| N73 |
Electronic ignition switch control unit |
6D |
| N80 |
Steering column module control unit |
27B |
| U506 |
Valid for ADS |
29D |
| U533 |
Valid for trailer hitch |
3C |
| U552 |
Valid for on-road/off-road package |
41K |
| U552 |
Valid for on-road/off-road package |
17D |
| U74 |
Valid for diesel engines |
33F |
| U75 |
Valid for gasoline engines |
33H |
| U836 |
Valid for AIRMATIC |
29D |
| U836 |
Valid for AIRMATIC |
13D |
| X11/4 |
Diagnostic connector |
12E |
| Y3/8n4 |
Fully integrated transmission control unit |
39K |
| Y36/10 |
Active roll stabilization rear axle pressure regulating valve |
16K |
| Y36/11 |
Active roll stabilization front axle directional control valve |
17K |
| Y36/12 |
Active roll stabilization front axle pressure regulating valve |
19K |
| Y36/9 |
Active roll stabilization rear axle directional control valve |
15K |
| Y86/2 |
Active roll stabilization intake throttle valve |
20K |
| Y86/3 |
Active roll stabilization safety valve |
21K |
