Replace shock absorber mount on lower wishbone - AR32.25-P-0107GZA
MODEL 164, 166 Rear axle
| Remove/install | |||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Raise vehicle using vehicle lift until the wheels are clear of the ground | AR00.60-P-1000GZ | |
| 2 | Empty AIRmatic using STAR DIAGNOSIS | ||
| MODEL 166 with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS)) Rear axle Empty and fill the AIRmatic as per the specifications; the complete wheels must not be touching the ground. The air springs can otherwise be damaged and fail later. |
AD00.00-P-2000-04A | ||
| 3 | Support lower transverse control arm (2) | While working on the rear axle, care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be reduced. Transmission jack gotis://H_00.10_01. 0 Transmission platform gotis://A_25/35/49_02. 0 |
|
| 4 | Remove bolt (1) | *BA32.25-P-1001-03K | |
| 5 | Lower the lower control arm (2) | ||

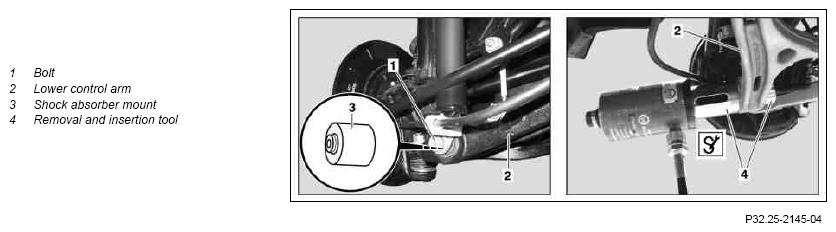

| 6 | Press out shock absorber mount (3) | When installing the shock absorber mount (3) the pressure of the hand pump must not exceed 140 bar. Otherwise the shock absorber mount (3) may be damaged. Model 164: To press in, use the separate parts marked with E and D and the threaded ball of the removal and insertion tool (4). Model 166: Use separate part E and |
|
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 7 | Install in the reverse order |
REAR AXLE SHOCK ABSORBER
| Number | Designation | MODEL 164.1/8 | MODEL 166 | ||
|---|---|---|---|---|---|
| BA32.25-P-1001-03K | Self-locking nut, shock absorber to spring control arm | Stage 1 | Nm | 100 | 180 |
| Stage 2 | ∠° | 120 | 90 | ||
