Remove/install lower wishbone - AR33.20-P-0510GZ

MODEL 164, 166

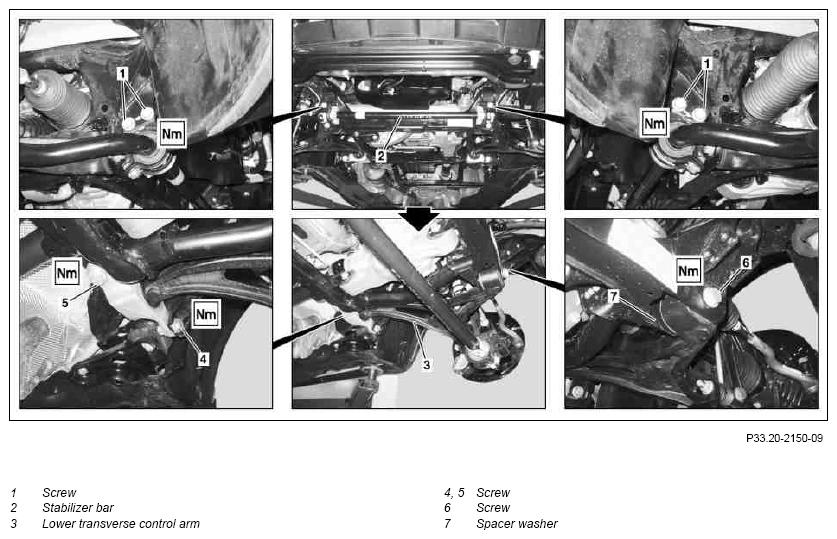

Fig 1: Identifying Lower Wishbone Remove/Install Components - Shown On Model 164

Courtesy of MERCEDES-BENZ USA

Shows model 164

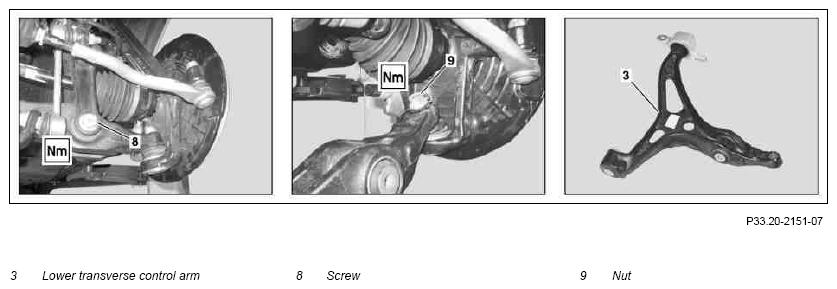

Fig 2: Identifying Lower Wishbone Remove/Install Components - Shown On Model 164

Courtesy of MERCEDES-BENZ USA

Shows model 164

MODIFICATION NOTES

20.2.12	Value changed: Bolt, lower control arm (front) to front axle carrier		*BA33.20-P-1004-01R
	Value changed: Bolt, lower control arm (front) to front axle carrier		*BA33.20-P-1004-01R
	Value changed: Nut, lower control arm (rear inner) to front axle carrier		*BA33.20-P-1005-01R
	Value changed: Nut, lower control arm (rear inner) to front axle carrier		*BA33.20-P-1005-01R
	Value changed: Bolt, lower control arm (rear outer) to front axle carrier		*BA33.20-P-1007-01R
	Value changed: Bolt, lower control arm (rear outer) to front axle carrier		*BA33.20-P-1007-01R

	Remove/install
	Risk of injury  caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of death when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on AIRmatic	Vehicles with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS).	AH32.22-P-1000-02GZ
		When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.
		Only tighten the bolts and nuts of the chassis components when in a ready-to-drive condition.
1	Raise vehicle using vehicle lift until the wheels are clear of the ground		AR00.60-P-1000GZ
2	Empty AIRmatic using STAR DIAGNOSIS	Vehicles with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS). Empty and fill the AIRmatic as per the specifications; the complete wheels must not be touching the ground. The air springs can otherwise be damaged and fail later.	AD00.00-P-2000-04A
3	Remove transmitter key or Keyless-Go start and stop button	On model 164.195 Switch off ignition. Remove transmitter key and Keyless-Go stop button from vehicle and keep at a location beyond transmitter range (at least 2 m).
4	Detach front wheel and tire assembly	Model 164	AP40.10-P-4050Z
		Model 166	AP40.10-P-4050EW
5.1	Remove bottom engine compartment paneling	Model 164 with gasoline engine	AR61.20-P-1105GZ
5.2	Remove soundproofing	Model 164 with diesel engine	AR94.30-P-5300GZ
5.3	Remove corresponding underfloor paneling	Model 166	AR61.30-P-1001GQ
6	Remove bolts (1) and move stabilizer bar (2) downward	Remove the stabilizer bar (2) carefully as it is under tension! Perform final tightening when vehicle is on the measuring platform or in K0 position. Otherwise the rubber mount will be twisted.
		Model 164	*BA32.35-P-1001-01B
		Model 166	*BA32.20-P-1001-02Q
7	Make color marking indicating installation position of rear bearing bracket of lower control arm (3) relative to front axle carrier
8	Remove screw/bolts (4, 5)	Perform final tightening when vehicle is on the measuring platform or in K0 position. Otherwise the rubber mount will be twisted. Align with the marks made previously. When installing new parts, transfer the markings to the new parts in order to achieve approximately the original adjustment position.
		Model 164	*BA33.20-P-1005-01J
		Model 164	*BA33.20-P-1007-01J
		Model 166	*BA33.20-P-1005-01R
		Model 166	*BA33.20-P-1007-01R
9	Remove screw (6)	Perform final tightening when vehicle is on the measuring platform or in K0 position. Otherwise the rubber mount will be twisted. Make sure that the installation position of the spacer washer (7) corresponds to the position shown.
		Model 164	*BA33.20-P-1004-01J
		Model 166	*BA33.20-P-1004-01R
10	Remove screw (8)	Perform final tightening when vehicle is on the measuring platform or in K0 position. Otherwise the rubber mount will be twisted.
		Model 164	*BA32.25-P-1002-01G
		Model 166	*BA32.25-P-1002-01O
11	Unscrew nut (9) and separate lower control arm (3) from supporting joint	Model 164	*BA33.20-P-1003-01J
		Model 166	*BA33.20-P-1003-01R
			Fig 3
12	Remove lower control arm (3)
13	Install in the reverse order
14	Perform wheel alignment check	Model 164	AR40.20-P-0200GZ
		Model 166	AR40.20-P-0200GQ

ANTI-ROLL BAR

Number	Designation		Model 164.1/8
BA32.35-P-1001-01B	Bolt, stabilizer bar bracket to axle/engine subframe	Nm	50

FRONT AXLE STABILIZER BAR

Number	Designation		Model 166 except code 468	Model 166 with code 468
BA32.20-P-1001-02Q	Bolt, stabilizer bar bracket/stabilizer bar to front axle carrier	Nm	100	130

FRONT AXLE SHOCK ABSORBER

Number	Designation		Model 164.1/8
BA32.25-P-1002-01G	Self-locking nut, shock absorber to wishbone	Nm	265

FRONT AXLE SHOCK ABSORBER

Number	Designation			Model 166
BA32.25-P-1002-01O	Self-locking nut, shock absorber to wishbone	Stage 1	Nm	100
		Stage 2	∠°	180

WHEEL CONTROL, HUB

Number	Designation		Model 164.1/8
BA33.20-P-1003-01J	Self-locking nut, supporting joint to lower transverse control arm	Nm	230
BA33.20-P-1004-01J	Self-locking nut, lower front transverse control arm to front axle carrier	Nm	270
BA33.20-P-1005-01J	Bolt, lower transverse control arm at inside rear to front axle carrier	Nm	220
BA33.20-P-1007-01J	Bolt, lower transverse control arm at outside rear to front axle carrier	Nm	180

WHEEL CONTROL, HUB

Number	Designation			Model 166
BA33.20-P-1003-01R	Self-locking nut, supporting joint to lower transverse control arm	Stage 1	Nm	80
		Stage 2	∠°	90
BA33.20-P-1004-01R	Bolt of lower transverse control arm at front to front axle carrier	Stage 1	Nm	120
		Stage 2	∠°	90
BA33.20-P-1005-01R	Nut, lower control arm (rear inner) to front axle carrier	Stage 1	Nm	65
		Stage 2	∠°	90
BA33.20-P-1007-01R	Bolt, lower transverse control arm at outside rear to front axle carrier	Stage 1	Nm	130
		Stage 2	∠°	45

Fig 3: Identifying Tool Kit (000 589 10 99 00)

Courtesy of MERCEDES-BENZ USA
