Remove/install refrigerant compressor - AR83.55-P-5300GW
MODEL 463 as of model year 2013/model refinement package 2012
Shown on engine 157
| Remove/install | |||
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerants. | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been emptied. | AS83.00-Z-0001-01A | |
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on handling R134a refrigerant | AH83.30-N-0003-01A | ||
| 1 | Remove fluid reservoir | AR83.30-P-6520GW | |
| Correct oil level in air conditioning system after replacing parts. | AR83.30-P-5252GW | ||
| 2 | Remove fan unit | AR20.40-P-5050GW | |
| 3 | Remove poly-V belt | AR13.20-P-0001GW | |
| 4 | Remove guide pulley (2) | See Remove poly-V belt. | AR13.20-P-0001GW |
| 5 | Disconnect electrical connector (4) | ||
| 6 | Remove suction line (6) and pressure line (5) from refrigerant compressor (A9) | ||
| *BA83.55-P-1003-01R | |||

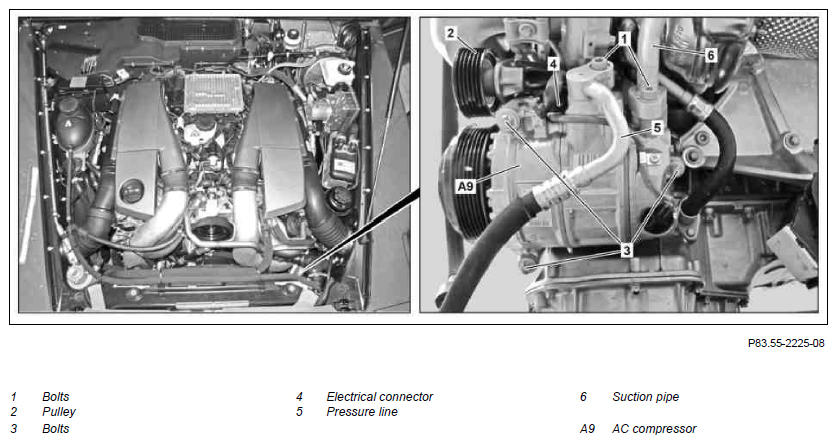

| Figure | |||
| 7 | Remove bolt (3) | *BA83.55-P-1001-01R | |
| 8 | Attach radiator guard plate | ||
| 9 | Remove A/C compressor (A9) | ||
| 10 | Correct oil level in refrigerant compressor (A9) | AR83.55-P-5250GW | |
| 11 | Install in the reverse order |
REFRIGERANT COMPRESSOR
| Number | Designation | Model 463 | |
|---|---|---|---|
| BA83.55-P-1001-01R | Screw/bolt, refrigerant compressor to timing case and left engine support | Nm | 20 |
| BA83.55-P-1003-01R | Screw/bolt, refrigerant lines to refrigerant compressor | Nm | 20 |
