Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks - AR83.30-P-1760GW

MODEL 463 as of model year 2013

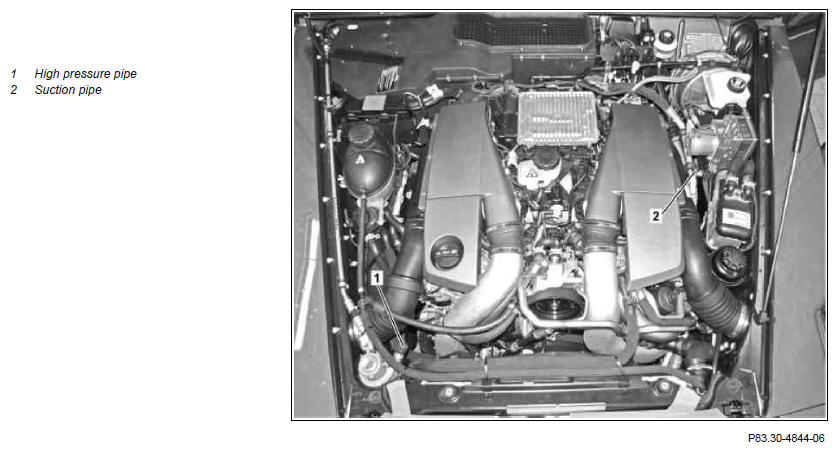

Fig 1: High Pressure Pipe And Suction Pipe
G10781218Courtesy of MERCEDES-BENZ USA
  Draining
DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
IMPORTANT Notes on handling refrigerant R134a   AH83.30-N-0003-01A
IMPORTANT Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01GW
IMPORTANT Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
1 Remove protective caps on Schrader valves of high pressure line (1) and suction line (2)
2 Connect filling equipment
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
    IMPORTANT Connect charging equipment using blue connector to the Schrader valve of the suction line (2) and connect with the red connector to the Schrader valve of the high pressure line (1).
3 Drain air conditioning system
4 Drain separated compressor oil from filling equipment and determine the exact quantity IMPORTANT The drained quantity must be replaced with new compressor oil when refilling.
  Evacuate
5 Clean and evacuate air conditioning system
  Filling
6 Top up compressor oil IMPORTANT Drained quantity must be replaced with fresh compressor oil.
IMPORTANT Additional fluid quantities when replacing parts of the refrigerant circuit:
    FLUID SPECIFICATION Refill quantity of compressor oil when replacing condenser Total filling capacity - compressor oil for new system (in refrigerant compressor) *BF83.30-P-1002-01A
    FLUID SPECIFICATION Refill quantity of compressor oil when replacing condenser *BF83.30-P-1003-01A
    FLUID SPECIFICATION Refill quantity of compressor oil when replacing a coolant line. Refill quantity of compressor oil when replacing fluid reservoir *BF83.30-P-1004-01A
    FLUID SPECIFICATION Refill quantity of compressor oil when replacing a coolant line. Refill quantity of compressor oil when replacing a coolant line *BF83.30-P-1005-01A
    FLUID SPECIFICATION Refill quantity of compressor oil when air conditioning system is suddenly emptied (line break) Refill quantity of compressor oil when air conditioning system is suddenly emptied (line break) *BF83.30-P-1006-01A
7 Charge air conditioning system FLUID SPECIFICATION Filling capacity of refrigerant *BF83.30-P-1001-01A
INSPECT Check
8 Check air conditioning system for leaks with leak detector
REFER TO SPECIAL TOOLS 000 588 10 21 00 Leak tester   WS83.00-P-0008B
9 Check air conditioning for proper operation IMPORTANT Run engine at idling speed for about 4 minutes and check all the component functions of relevance for proper operation of the air conditioning system.
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1001-01A Filling capacity of refrigerant   g 875 875
Specifications for Operating Fluids, Sheet MB 361.0 refrigerant R134a A 000 989 03 48 MB 361.0 refrigerant R134a A 000 989 03 48
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1001-01A Filling capacity of refrigerant   g 925
Specifications for Operating Fluids, Sheet MB 361.0 refrigerant R134a A 000 989 03 48
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1002-01A Total filling capacity - compressor oil for new system (in refrigerant compressor)   cm3 140 140
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03 MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1002-01A Total filling capacity - compressor oil for new system (in refrigerant compressor)   cm3 140
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1003-01A Refill quantity of compressor oil when replacing condenser   cm3 20 20
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03 MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1003-01A Refill quantity of compressor oil when replacing condenser   cm3 20
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1004-01A Refill quantity of compressor oil when replacing fluid reservoir   cm3 10 10
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03 MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1004-01A Refill quantity of compressor oil when replacing fluid reservoir   cm3 10
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1005-01A Refill quantity of compressor oil when replacing a coolant line   cm3 10 10
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03 MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1005-01A Refill quantity of compressor oil when replacing a coolant line   cm3 10
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation MODEL 463.202/236/237 as of 01.01.13, MODEL 463.272/273 Model 463.346 as of 1/1/13 with left-hand drive vehicle
BF83.30-P-1006-01A Refill quantity of compressor oil when air conditioning system is suddenly emptied (line break)   cm3 40 40
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03 MB 362.0 compressor oil A 001 989 08 03
AIR CONDITIONING

Number Designation Model 463.346 as of 1/1/13 with right-hand drive vehicle
BF83.30-P-1006-01A Refill quantity of compressor oil when air conditioning system is suddenly emptied (line break)   cm3 40
Specifications for Operating Fluids, Sheet MB 362.0 compressor oil A 001 989 08 03
