Remove/install throttle valve actuator - AR07.51-P-1401GW
ENGINES 157 in MODEL 463
| Remove/install | |||
| 1 | Remove charge air manifold (1) | AR09.41-P-1310GW | |

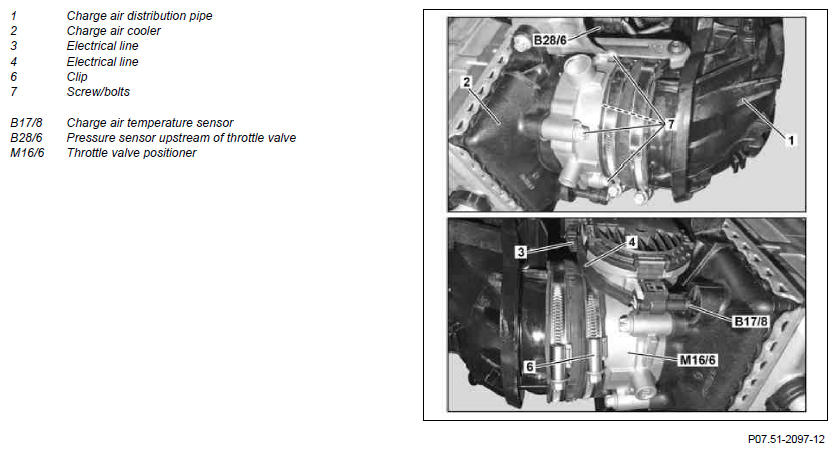

| 2 | Disconnect electrical connection to charge air temperature sensor (B17/8) and to pressure sensor upstream of throttle valve (B28/6) | ||
| 3 | Disconnect electrical connection to throttle valve actuator (M16/6) | ||
| 4 | Unclip electrical line (4) on throttle valve actuator (M16/6) | ||

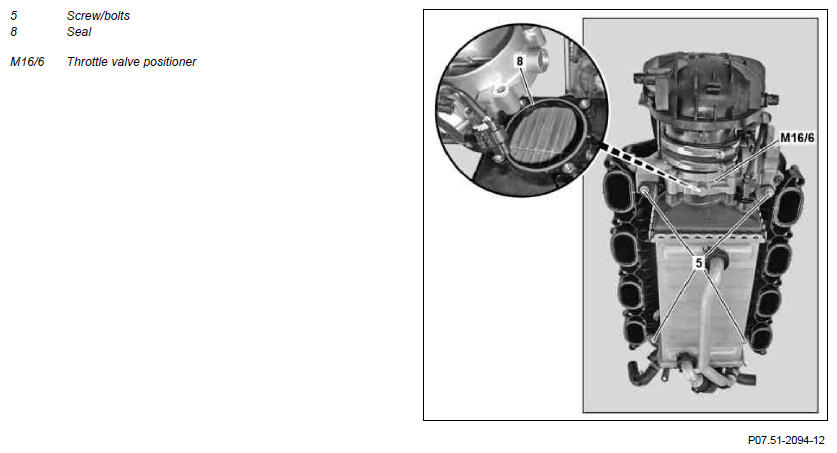

| 5 | Unscrew screw/bolts (5) for charge air cooler (2) on charge air manifold (1) | *BA09.41-P-1001-01O | |
| 6 | Loosen clamp (6) for charge air manifold (1) on throttle valve actuator (M16/6) | ||
| 7 | Remove charge air cooler (2) and throttle valve actuator (M16/6) on charge air manifold (1) | ||
| 8 | Unclip electrical line (3) on throttle valve actuator (M16/6) | ||
| 9 | Remove screw/bolts (7) on throttle valve actuator (M16/6) | *BA09.41-P-1002-01O | |
| 10 | Detach throttle valve actuator (M16/6) from charge air cooler (2) | ||
| 11 | Remove seal (8) for throttle valve actuator (M16/6) on charge air cooler (2) | ||
| 12 | Install in the reverse order | ||
| 13 | Read out and erase the fault memory using Star Diagnosis |
AD00.00-P-2000-04A |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 157 | |
|---|---|---|---|
| BA09.41-P-1001-01O | Screw/bolt, charge air cooler to charge air distribution line | Nm | 9 |
| BA09.41-P-1002-01O | Screw/bolt, throttle valve actuator to charge air cooler | Nm | 9 |
