Remove/install activated charcoal canister - AR47.30-P-8212GW

MODEL 463 with ENGINE 157, 273 as of model year 2013

MODEL 463 with ENGINE 176, 279

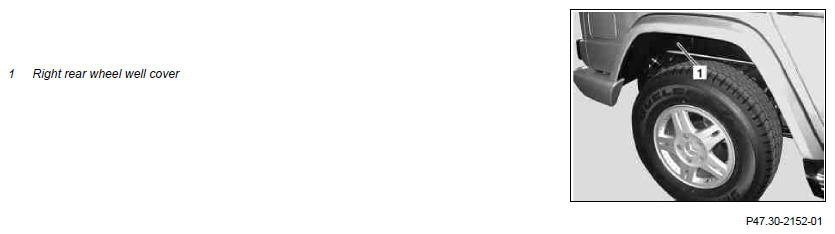

Fig 1: Activated Charcoal Canister Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

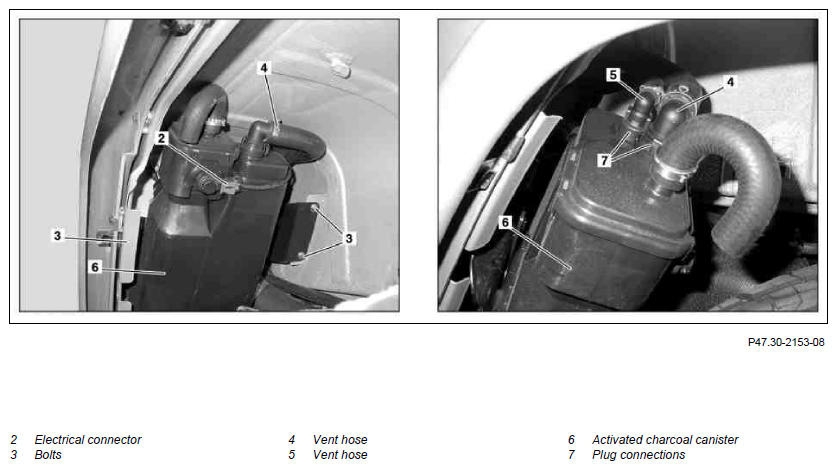

Fig 2: Activated Charcoal Canister Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right rear wheel well cover (1)
2	Disconnect electrical connection (2)	Model 463 with engine 157, 273 as of model year 2013
3	Remove screw/bolt (3)	Only loosen screw/bolt (3) on fender.
4	Detach vent hoses (4, 5) on activated charcoal canister (6)	To do this unfasten plug connections (7) by pressing.
5	Remove activated charcoal canister (6) with holder
6	Detach bracket on activated charcoal canister (6)	Model 463 with engine 176, 279 Only when replacing the activated charcoal canister (6).
7	Install in the reverse order
