Overview of system components, telematics - GF82.85-P-9999GW
MODEL 463 as of model year 2013
Shown on model 463.236 (without antenna system and speaker system)

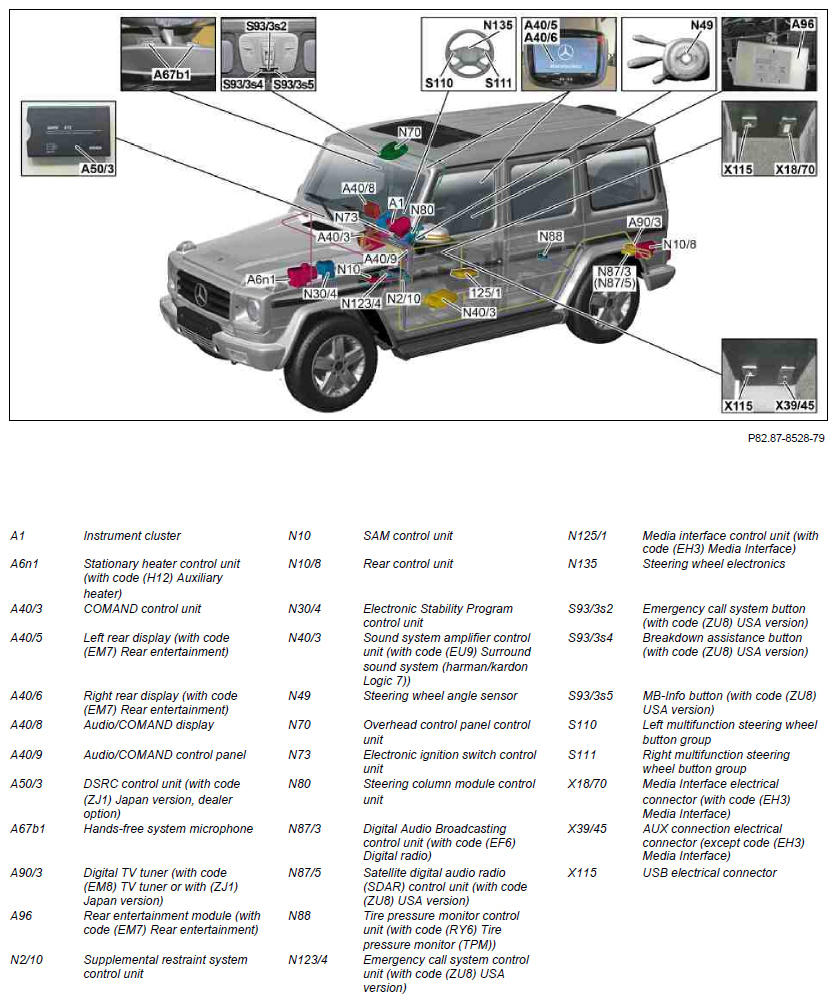

Fig 1: Overview Of Telematics System Components - Shown On Model 463.236 Without Antenna System And Speaker System

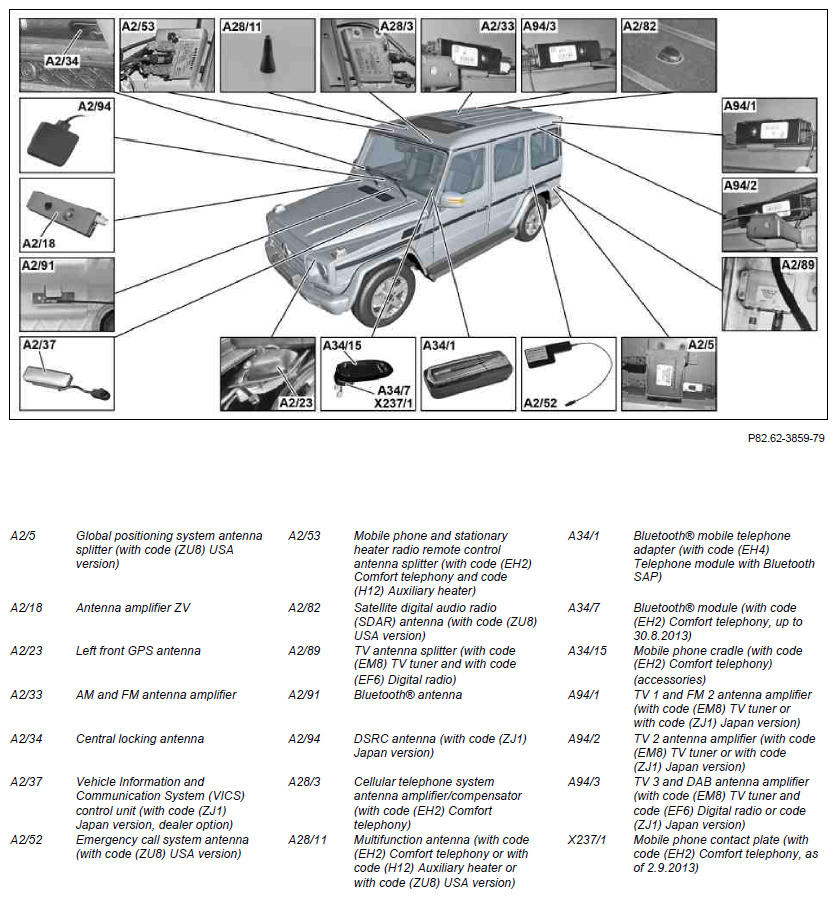

Shown on model 463.236 with telematics antenna system
Fig 2: Overview Of Telematics System Components - Shown On Model 463.236 With Telematics Antenna System

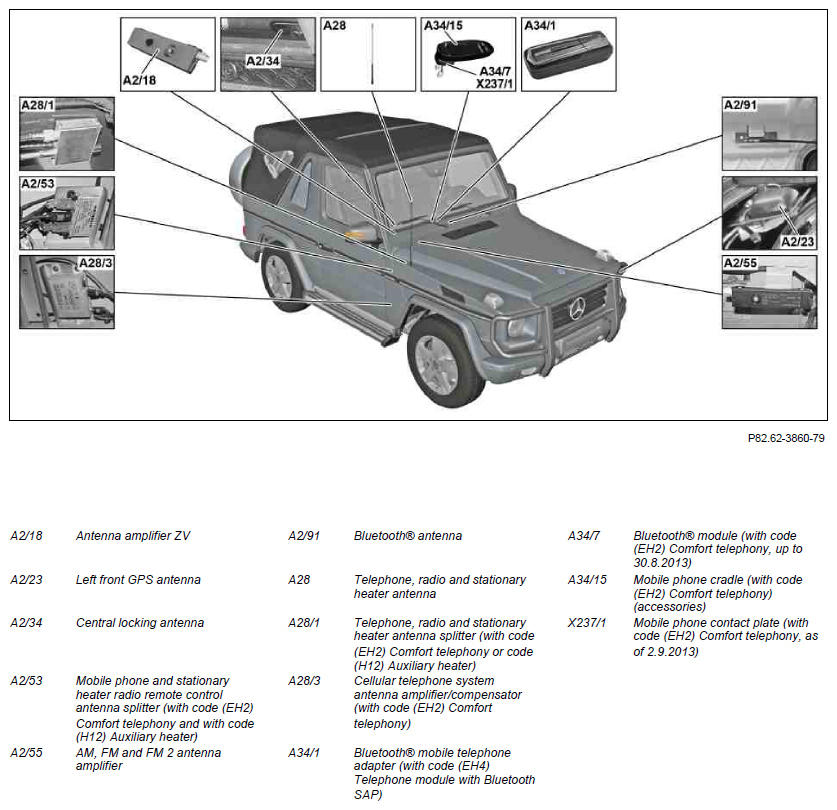

Shown on model 463.202 with telematics antenna system
Fig 3: Overview Of Telematics System Components - Shown On Model 463.202 With Telematics Antenna System

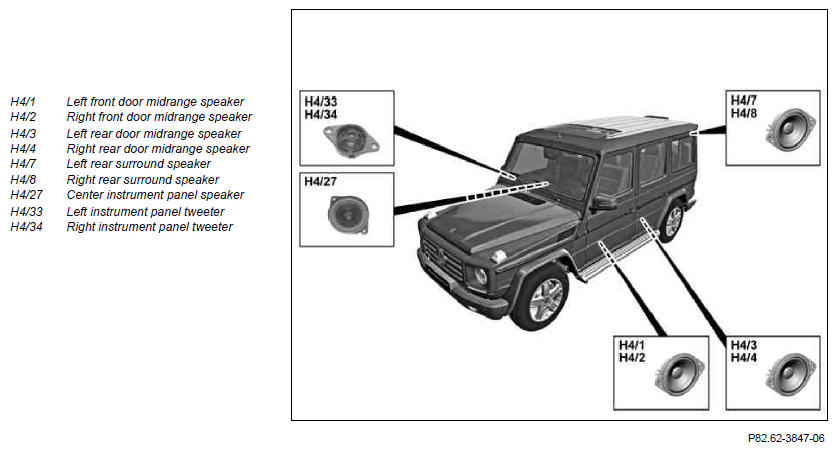

Shown with speaker system except code (EU9) Surround sound system (harman/kardon Logic 7)

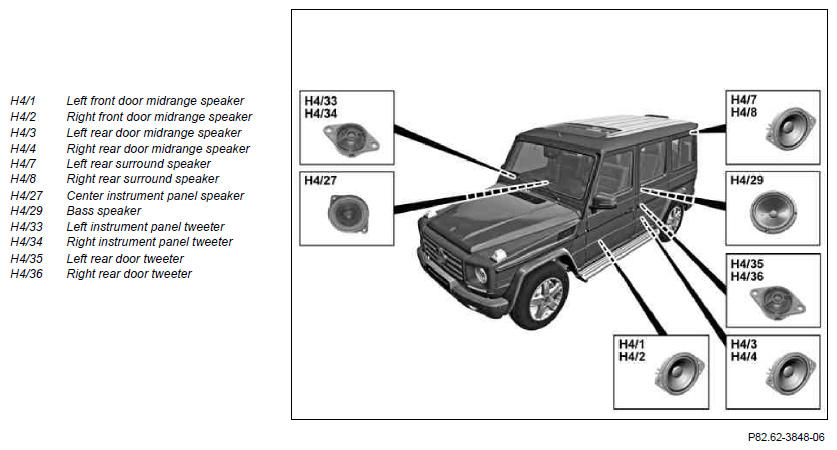

Shown with speaker system with code (EU9) Surround sound system (harman/kardon Logic 7)
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Digital TV tuner, component description | MODEL 463 as of model year 2013 with CODE EM8 (TV tuner) MODEL 463 as of model year 2013 with CODE ZJ1 (Japanese version) A90/3 | GF82.60-P-3118GW | |
| Component description for media interface control unit | MODEL 463 as of model year 2013 with CODE EH3 (Media interface) N125/1 |
GF82.60-P-5000GW | |
| Component description for Digital Audio Broadcasting control unit | MODEL 463 as of model year 2013 with CODE EF6 (Digital radio) N87/3 |
GF82.62-P-5000GW | |
| Component description for sound system amplifier control unit | MODEL 463 as of model year 2013 with CODE EU9 (Surround sound system (harman/kardon Logic 7)) N40/3 |
GF82.62-P-5010GW | |
| Satellite digital audio radio (SDAR) control unit, component description | MODEL 463 as of model year 2013 with CODE ZU8 (US version) N87/5 |
GF82.85-P-3121GWU | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136GW | |
| Component description for emergency call system control unit | MODEL 463 as of model year 2013 with CODE ZU8 (US version) N123/4 |
GF82.95-P-3212GWU | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Table of contents for function description, telematics | GF82.85-P-0993GW |
