Overview of interior illumination (IBL) system components - GF82.20-P-9997GW

MODEL 463 as of model year 2013/facelift 12

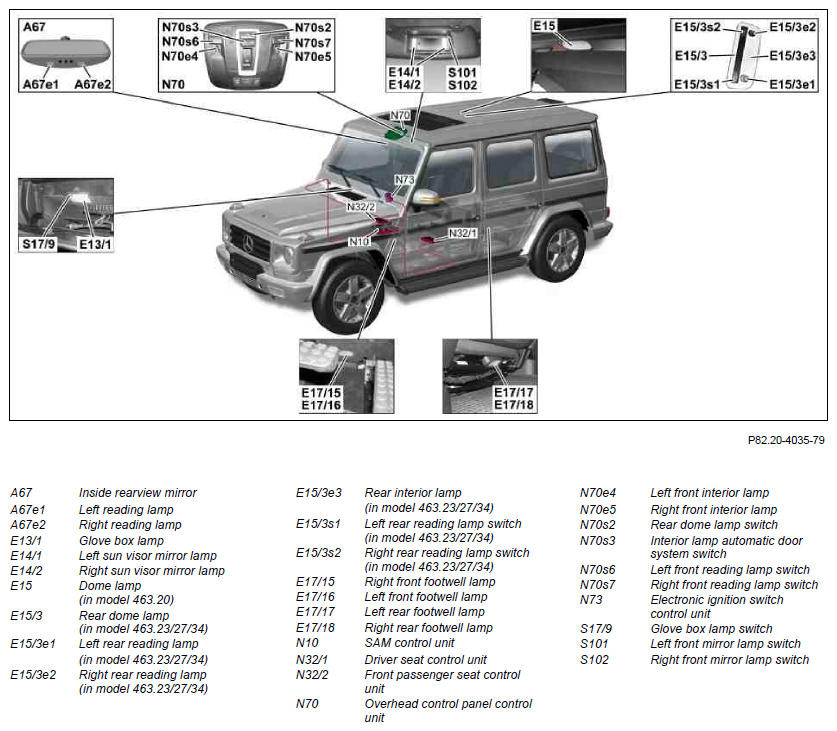

Manual interior lights control, Shown on model 463.236

Fig 1: Manual Interior Lights Control System Components - Shown On Model 463.236
G10781422Courtesy of MERCEDES-BENZ USA

Symbol and ambiance illumination, Shown on model 463.236

Fig 2: Symbol And Ambiance Illumination System Components - Shown On Model 463.236
G10781423Courtesy of MERCEDES-BENZ USA

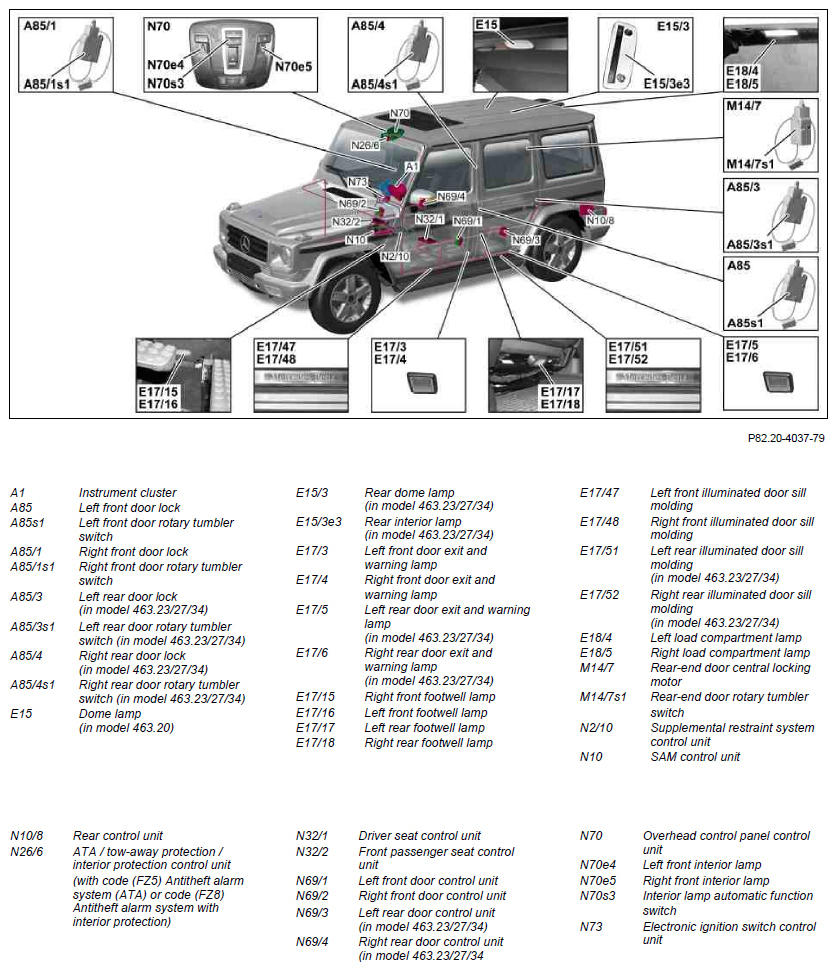

Automatic interior lights control, Shown on model 463.236

Fig 3: Automatic Interior Lights Control System Components - Shown On Model 463.236
G10781424Courtesy of MERCEDES-BENZ USA
  Instrument cluster, component description A1 GF54.30-P-6000GW
  Audio/COMAND display, component description A40/8 GF54.30-P-6150GW
  Audio/COMAND control panel, component description A40/9 GF54.21-P-4501GW
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080GW
  SAM control unit, component description N10 GF54.21-P-4157GW
  Rear control unit, component description N10/8 GF54.21-P-4134GW
  Climate control and operating unit, component description N22/7 GF83.40-P-3002GW
  ATA [EDW]/tow-away protection/interior protection control unit, component description N26/6
With code (FZ5) Antitheft alarm system (ATA) or code (FZ8) Antitheft alarm system with interior protection		 GF80.50-P-4131GW
  Driver seat control unit, component description N32/1 GF91.29-P-5231GW
  Front passenger seat control unit, component description N32/2 GF91.29-P-5241GW
  Left front door control unit, component description N69/1 GF72.29-P-6001GW
  Right front door control unit, component description N69/2 GF72.29-P-6009GW
  Rear door control unit, component description N69/3, N69/4 in model 463.23/27/34 GF72.29-P-6021GW
  Overhead control panel control unit, component description N70 GF82.20-P-5216GW
  Lower control panel control unit, component description N72 GF54.21-P-6060GW
  Upper control panel control unit, component description N72/1 GF54.21-P-6040GW
  Electronic ignition lock control unit, component description N73 GF80.57-P-6001GW
  Steering column tube module control unit, component description N80 GF54.21-P-6051GW
  Contents, function description of interior illumination (IBL)   GF82.20-P-0998GW
