Remove/install satellite radio antenna - AR82.60-P-7547GW

MODEL 463 as of model year 2013/model refinement package 2012

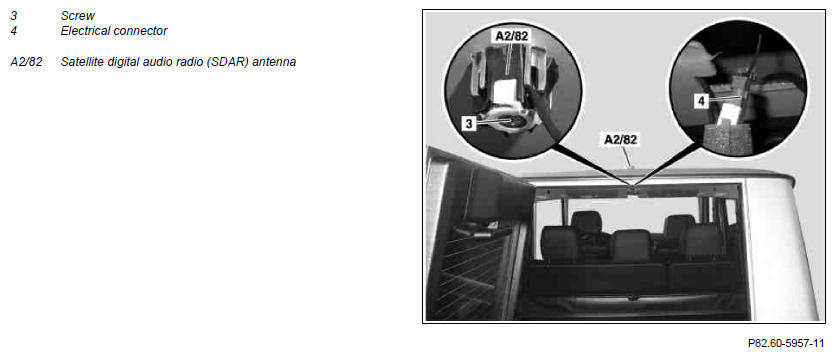

Fig 1: Satellite Radio Antenna Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

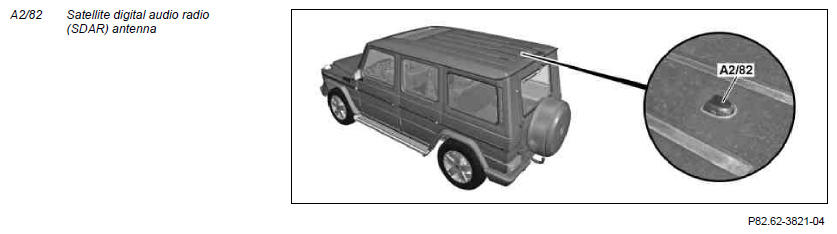

Fig 2: Satellite Radio Antenna Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove headliner	Remove headliner in rear area only. Pull headliner carefully down. Danger of breakage.	AR68.30-P-4300GW
2	Remove bolt (3) from satellite digital audio radio (SDAR) antenna (A2/82)
3	Disconnect connector from satellite digital audio radio (SDAR) antenna (A2/82)
4	Remove satellite digital audio radio (SDAR) antenna (A2/82)
5	Install in the reverse order
