Remove/install radio/TV antenna amplifier module - AR82.62-P-8310GW
MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012
| Remove/install | |||
| 1 | Remove headliner | AR68.30-P-4300GW | |
| 2 | Disconnect electrical connections from TV 1 and FM 2 antenna amplifier (A2/33) | ||
| 3 | Unscrew screw/bolt of TV 1 and FM 2 antenna amplifier (A2/33) and remove TV 1 and FM 2 antenna amplifier (A2/33) | ||
| 4 | Disconnect electrical connections from TV 3 and DAB antenna amplifier (A94/3) | ||
| 5 | Unscrew screw/bolt of TV 3 and DAB antenna amplifier (A94/3) and remove TV 3 and DAB antenna amplifier (A94/3) | ||

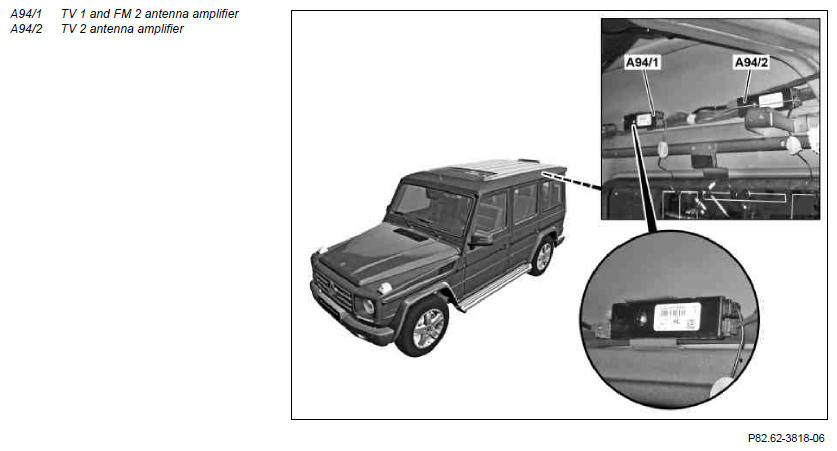

| 6 | Disconnect electrical connections from TV 1 and FM 2 antenna amplifier (A94/1) | ||
| 7 | Unscrew screw/bolt of TV 1 and FM 2 antenna amplifier (A94/1) and remove TV 1 and FM 2 antenna amplifier (A94/1) | ||
| 8 | Disconnect electrical connections from TV 2 antenna amplifier (A94/2) | ||
| 9 | Unscrew screw/bolt of TV 2 antenna amplifier (A94/2) and remove TV 2 antenna amplifier (A94/2) | ||
| 10 | Install in the reverse order | ||
| 11 | Read out and erase the fault memory using Star Diagnosis |
AD00.00-P-2000-04A |
