Remove/install front axle level sensors - AR82.10-P-0004GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| 1 | Lift/jack up vehicle | AR00.60-P-1000G | |

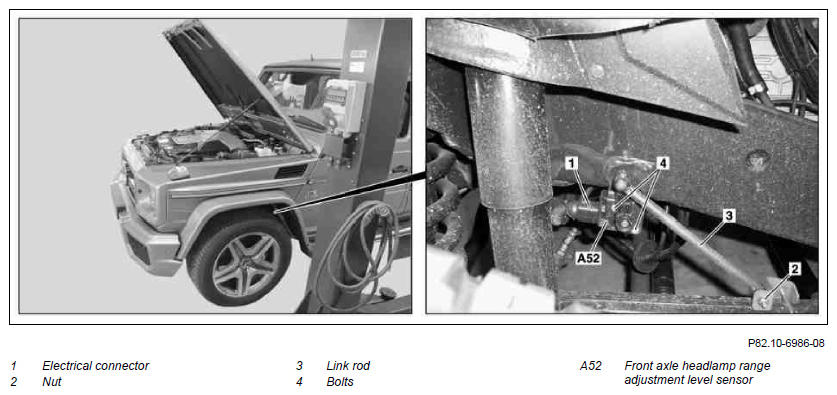

| 2 | Disconnect electrical connector (1) at front axle headlamp range adjustment level sensor (A52) | ||
| 3 | Unscrew nut (2) of link rod (3) and press out link rod (3) | ||
| 4 | Press out link rod (3) | ||
| 5 | Remove screws/bolts (4) from retaining plate | ||
| 6 | Remove front axle headlamp range adjustment level sensor (A52) | ||
| 7 | Remove link rod (3) from front axle headlamp range adjustment level sensor (A52) | When replacing the front axle headlamp range adjustment level sensor (A52). | |
| 8 | Install in the reverse order | ||
| 9 | Perform calibration with STAR DIAGNOSIS | ||
| 10 | Read out and erase the fault memory using Star Diagnosis |
