Retrofitting navigation system Audio 30 APS - AN82.61-P-0001GV
MODELS 463 as of 4/1/96 up to 11/30/00
| Remove | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003G | |||
FB4code ZS4, special protection version FB6code ZS6, special protection version FB7code ZS7, additional battery 100 Ah incl. cutoff relay code E26. |
AR54.10-P-0003PV | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove left headlamp trim | ||
| AR88.00-P-2100G | |||
| 3 | Remove bracket of left headlamp trim | ||
| 4 | Remove left front wheelhouse lining | ||
| 5 | Remove instrument cluster | ||
| AR54.30-P-6015G | |||
| 6 | Remove radio | ||
| Install | |||

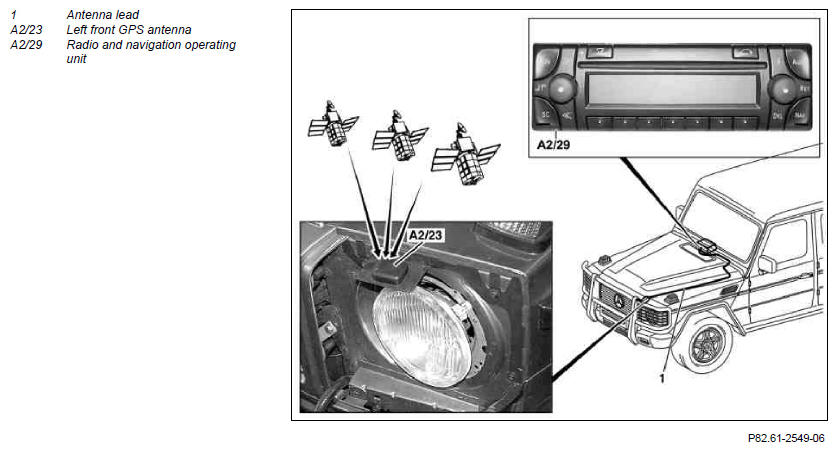

| 7 | Retrofit antenna for global positioning system (GPS) | AN82.61-P-7474-04GV | |
| 8 | Retrofit wiring harness for auto pilot system | AN82.61-P-1001-01GV | |
| 9 | Install APS radio and navigation operating unit | ||
| AR82.61-P-7412G | |||
| 10 | Install instrument cluster | ||
| AR54.30-P-6015G | |||
| 11 | Install left front wheelhouse lining | ||
| 12 | Install left headlamp trim | ||
| AR88.00-P-2100G | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 13 | Reconnect ground lead to battery | ||
| AR54.10-P-0003G | |||
| AR54.10-P-0003PV | |||
| Notes on battery | AH54.10-P-0001-01A |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A 463 820 39 15 | Antenna lead | 1 |
| A 203 827 01 59 | CD-ROM | 1 |
| A 208 820 19 26 | Radio and navigation operating unit audio 30 APS | 1 |
| A 463 827 01 01 | Global positioning system (GPS) antenna | 1 |
| A 001 997 83 90 | Tie strap | 6 |
| A 463 880 25 14 | Bracket | 1 |
