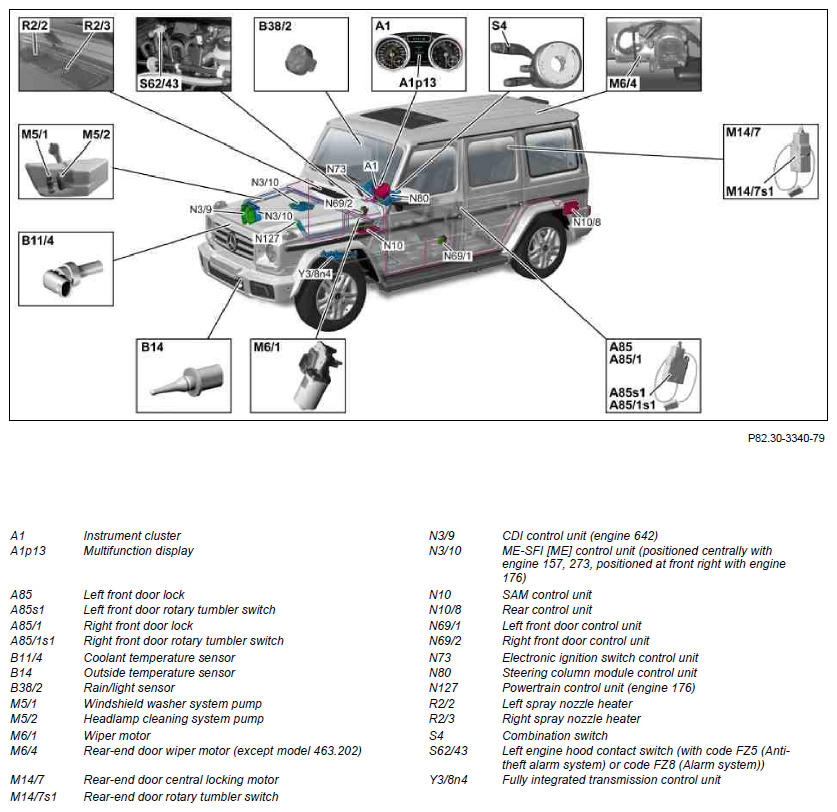

Overview of system components for windshield wiper system - GF82.30-P-9996GW
MODEL 463 as of model year 2013
Shown on model 463.23
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | |
| Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | ||
| Model 463 with engine 176.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNF | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of windshield wiper system | GF82.30-P-0997GW |
