Removing and installing jacket tube cover on instrument panel - AR68.10-P-1060G

MODEL 463 (except 463.244/245/247/248/249/250/254/309/322/323/332/333)

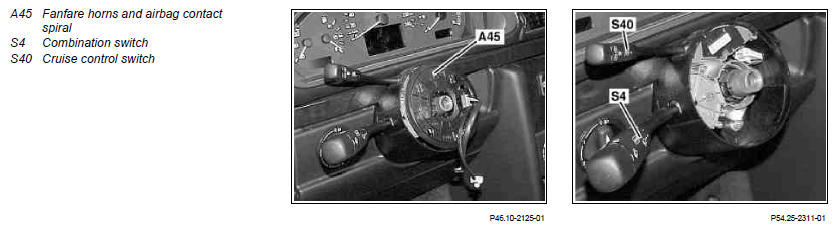

Fig 1: Instrument Panel Jacket Tube Cover Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Instrument Panel Jacket Tube Cover Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing, installing
1	Remove/install steering wheel		AR46.10-P-0100G
2	Remove contact spiral (A45)	Observe center position
3	Unscrew combination switch (S4) and cruise control switch (S40)
4	Remove wood trim strip (2)	The wood trim strip is in two sections up to ident. no. 110196 Lever out carefully. The retaining lugs may break off. Especially those on the short two-part wood trim strip. Do not bend the wood trim strip
5	Unscrew cover (3)	Do not unscrew, kink or open the headlamp range adjuster (4).
6	Pull transponder coil (L10) off steering wheel lock
7	Install in the reverse order
