Remove/install sun visor - AR68.60-P-5480GW

MODEL 463 as of model year 2013/model refinement package 2012

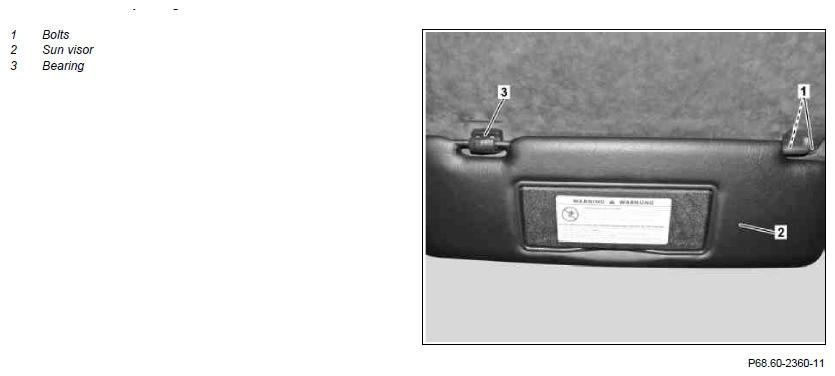

Fig 1: Sunvisor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unhook sun visor (2) from bearing (3) and pivot to side
2	Remove bolt (1)
3	Remove sun visor (2) from headliner
4	Disconnect electrical connector	Carefully pull electrical connector out of headliner.
5	Remove bearing (3)	If necessary Open cover and unscrew bearing (3).
6	Install in the reverse order
