Remove/install paneling on B-pillar - AR68.30-P-4700GW

MODEL 463 as of model year 2013/facelift 2012

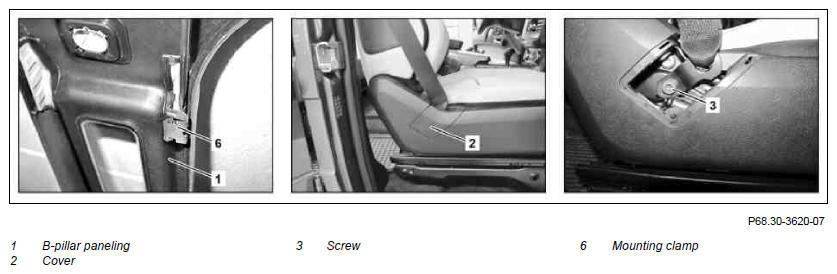

Fig 1: B-Pillar Paneling Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

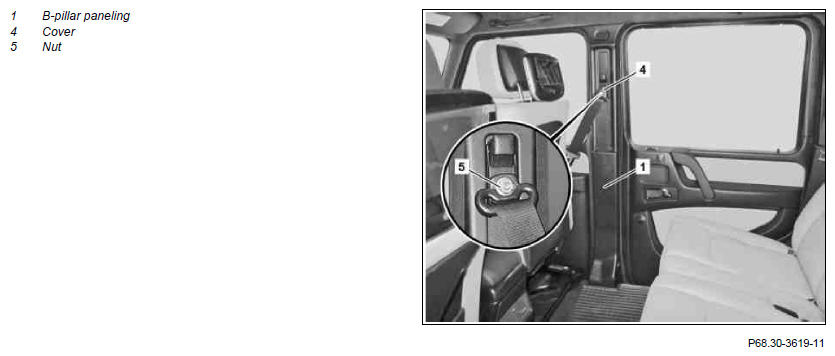

Fig 2: B-Pillar Paneling Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (2) and unscrew bolt (3) from belt end fitting		*BA91.40-P-1001-01C
2	Unscrew cover (4) and unscrew nut (5) from upper belt guide fitting		*BA91.40-P-1002-01C
3	Press mounting clips (6) on B-pillar paneling (1) off of door bead	Remove mounting clips (6) from B-pillar paneling (1) and install on door bead, then install B-pillar paneling (1)
4	Remove B-pillar trim (1)	Press roof paneling upward above B-pillar paneling (1) and remove B-pillar paneling (1) from B-pillar starting at top
5	Pull belt out of B-pillar paneling (1)
6	Disconnect electrical connector from rear bench seat heater switch	On vehicles with code (H11) Rear bench seat heater
7	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 463
BA91.40-P-1001-01C	Screw on belt end fitting	Nm	35
BA91.40-P-1002-01C	Screw/nut on front seat belt guide bracket	Nm	35
