Remove/install luggage compartment floor covering - AR68.20-P-4810GW

MODEL 463 as of model year 2013/model refinement package 2012

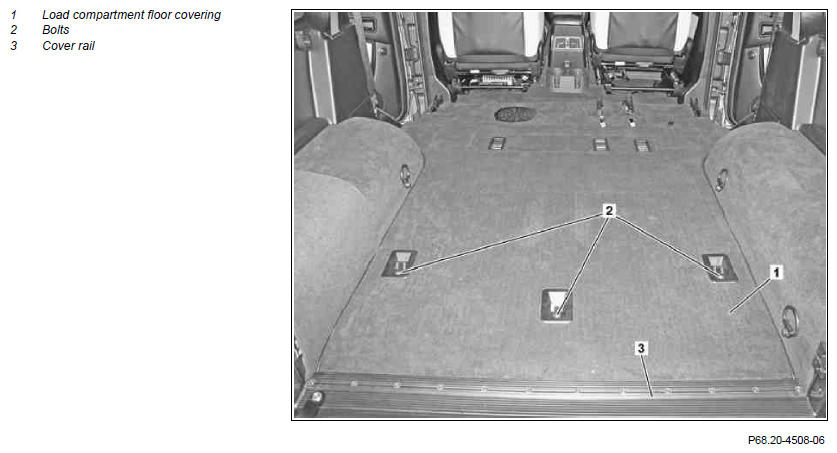

Fig 1: Luggage Compartment Floor Covering Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear seat and rear seat backrest		AR91.12-P-1700GW
2	Remove bass module speaker	If installed	AR82.62-P-7839GW
3	Remove cover from battery compartment
4	Remove rear door sill		AR68.30-P-4100GW
5	Unscrew bolts (2) and remove anchoring lug
6	Pull cargo area floor covering (1) out of cover rail (3) and remove cargo area floor covering (1)	Slightly lift rear floor covering in passenger compartment to remove cargo area floor covering (1).
7	Install in the reverse order
