Remove/install inside rearview mirror - AR68.40-P-0001GW

MODEL 463 as of model year 2013/facelift 2012

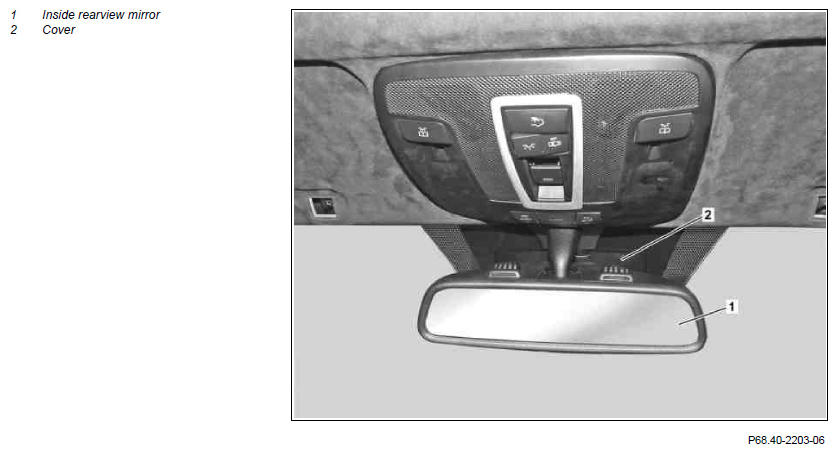

Fig 1: Inside Rearview Mirror Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach ground line from battery		AR54.10-P-0003GW
	Notes on battery		AH54.10-P-0001-01A
2	Disconnect connector on electrical line from overhead control panel control unit (N70)		AR82.20-P-1000GW
3	Disconnect electrical connector from hands- free system microphone (A67b1)	The separating point is located above the overhead control panel control unit (N70).
4	Unclip cover (2)
5	Remove rearview mirror (1)	Unclip inside rearview mirror (1) from bracket downward at an angle.
6	Install in the reverse order
7	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
