Check first aid kit - AP68.00-P-6850EW

MODEL 117, 156, 164, 166, 169, 171, 172, 176, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 216, 217, 218, 219, 221, 222, 230, 231, 242, 245, 246, 251

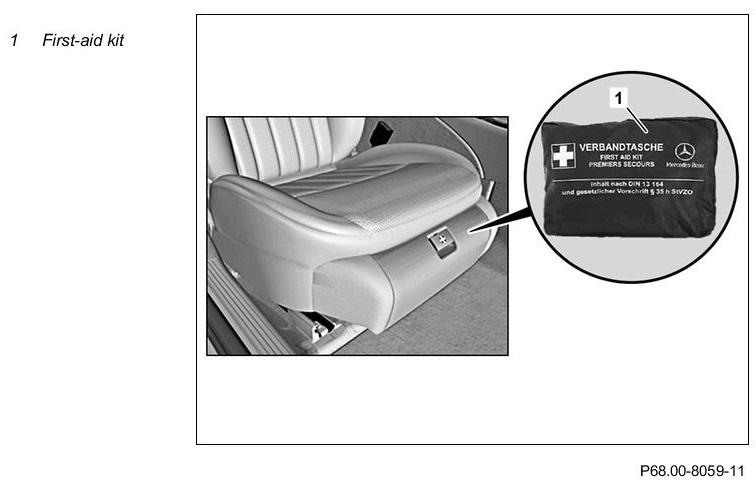

First aid kit in front passenger seat shown on model 211, valid for model 211, 219, 230

Fig 1: Front Aid Kit In Front Passenger Seat - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

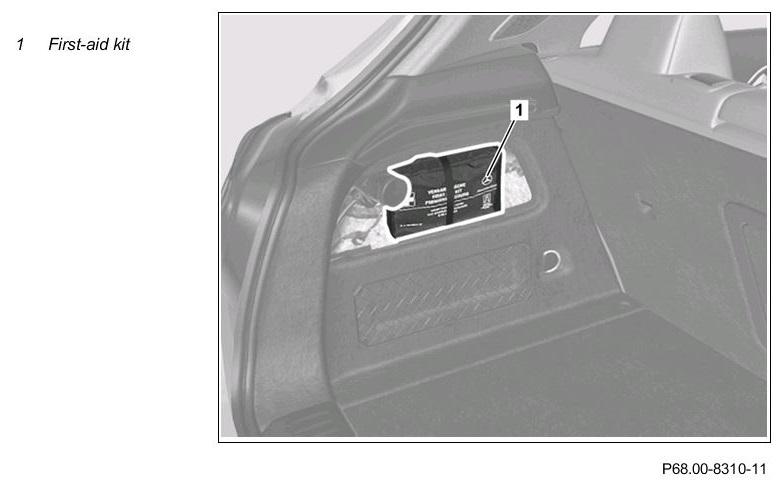

First-aid kit behind side panel shown at left on model 176.0, valid for model 117, 156, 164, 169, 176, 197, 203, 218.9, 245

Fig 2: First Aid Kit Behind Side Panel - Shown On Model 176.0

Courtesy of MERCEDES-BENZ USA

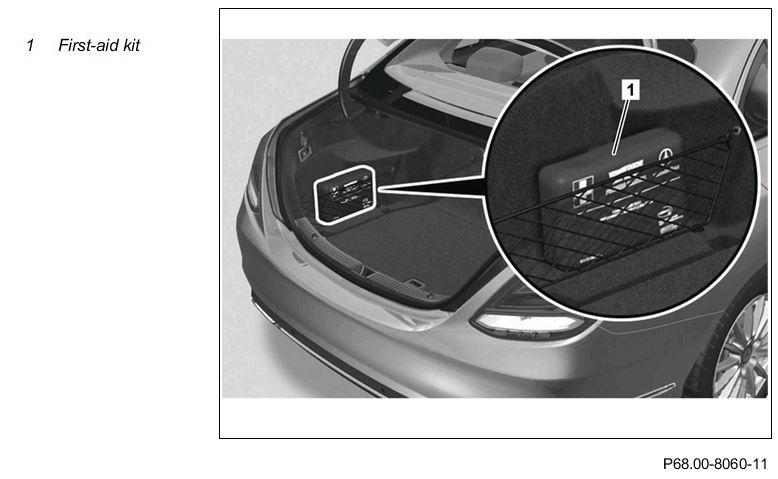

First-aid kit (soft sided) in stowage net shown at left on model 205, valid for model 190, 204.0/3/9, 205, 209.3, 213, 238

Fig 3: First Aid Bag In Stowage Net - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

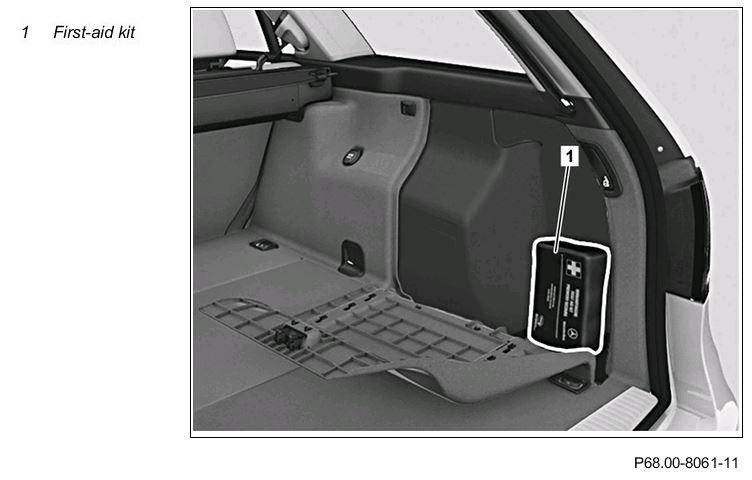

First-aid kit behind side panel shown at right on model 212.0, valid for model 204.2, 212.0, 218.3, 242, 246

Fig 4: First Aid Kit Behind Side Panel - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

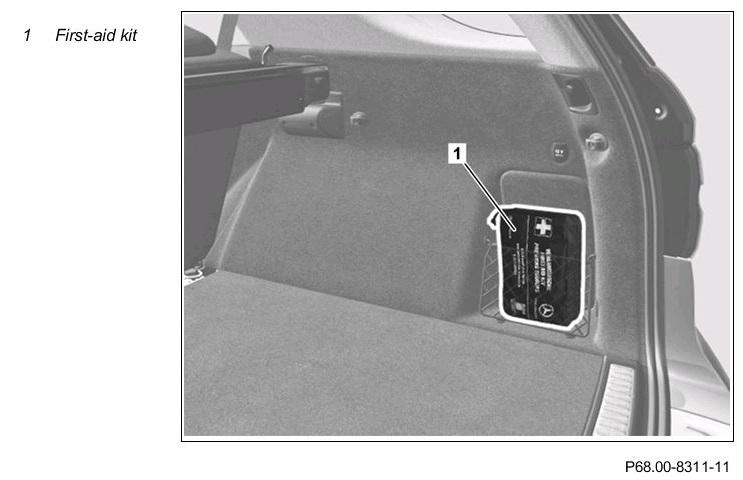

First-aid kit in stowage net shown at right on model 166.0, valid for model 166, 207, 216, 217, 221, 222

Fig 5: First Aid Kit In Stowage Net - Shown On Model 166.0

Courtesy of MERCEDES-BENZ USA

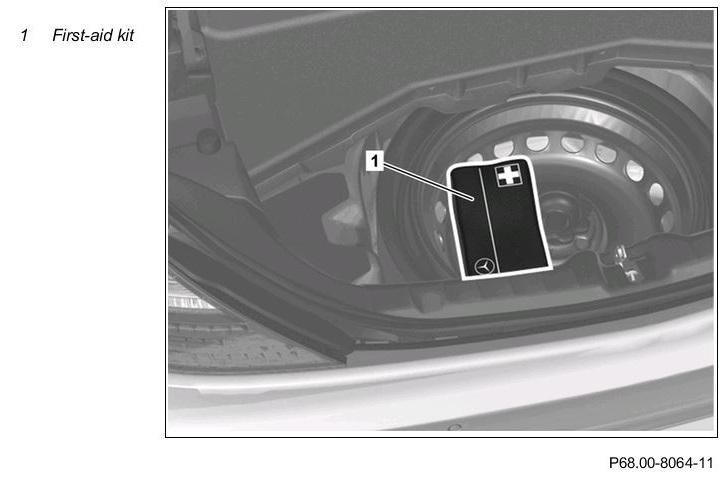

First-aid kit (soft sided) in trunk recess shown on model 172, valid for model 171, 172, 177, 209.4, 231, 251, 253, 257, 292

Fig 6: First Aid Kit In Trunk Recess - Shown On Model 172

Courtesy of MERCEDES-BENZ USA

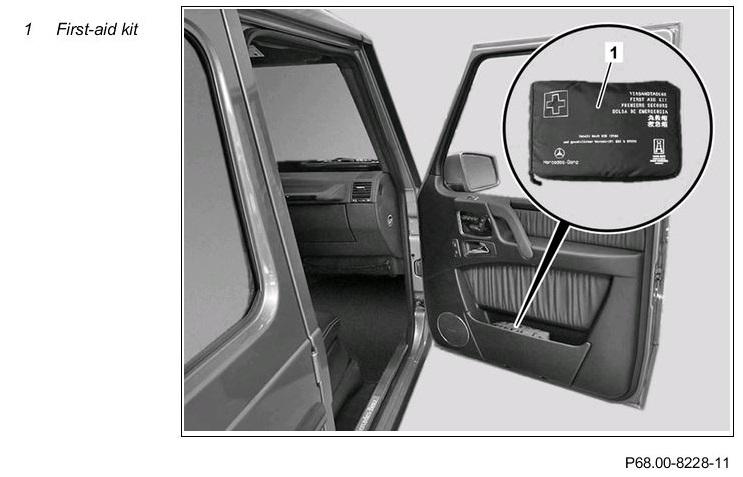

First-aid kit in front passenger door, shown on model 463.348, valid for model 463

Fig 7: First Aid Kit In Front Passenger Door - Shown On Model 463.348

Courtesy of MERCEDES-BENZ USA

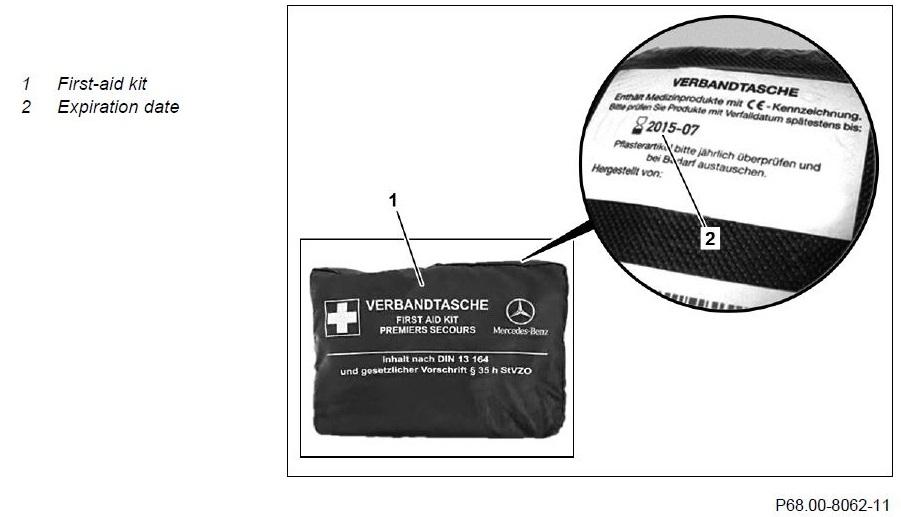

Fig 8: First-Aid Kit & Expiration Date

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove first-aid kit (1)
	Check
2	Check expiration date (2)	If the expiration date (2) has been reached or exceeded or if the expiration date (2) will be reached or exceeded within the next service interval. ↓ Replace the first-aid kit (1), subject to a separate repair order.
	Install
3	Insert first-aid kit (1)
