Remove/install cruise control switch - AR54.25-P-2803GX
MODEL 463.202/222/236/237, 463.243/244/245/246/247/248/249/250/254 as of 1.6.04, 463.270/271/303/306, 463.309/322/323/332/333 as of 1.6.04, 463.336/340/341/346
| Remove/install | |||
|---|---|---|---|
| 1 | Remove steering angle sensor | AR46.10-P-0300GX | |

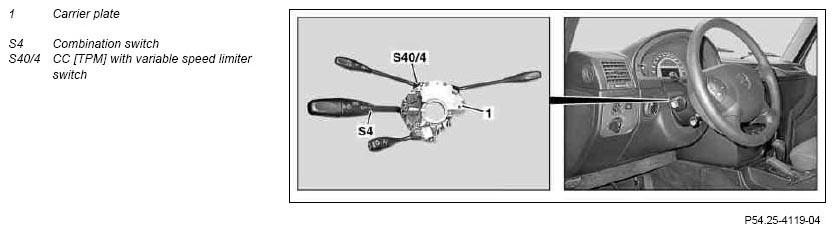

| 2 | Remove combination switch (S4) from carrier plate (1) of cruise control switch with variable speed limiter (S40/4) | AR54.25-P-2800GX | |
| 3 | Install in the reverse order | ||
| 4 | Perform function check of cruise control switch with variable speed limiter (S40/4) |
