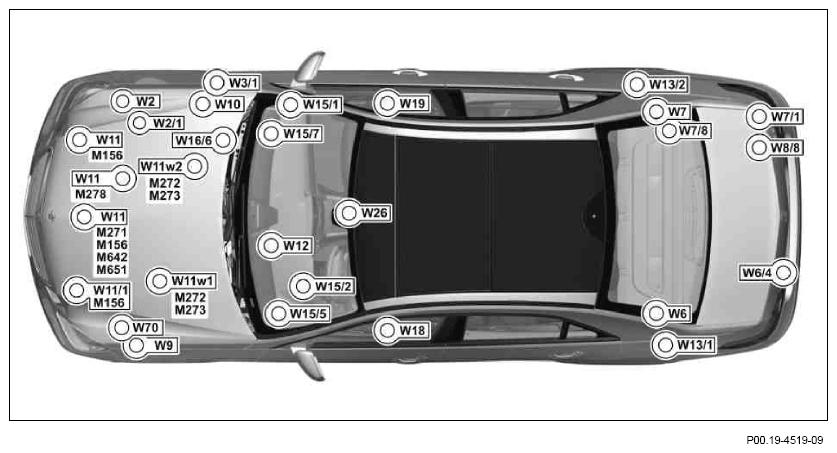

Location and assignment of ground points - GF00.19-P-2000DAA
MODEL 212
| W2 | Left front ground point (at lamp unit) | Location | GF00.19-P-2000-02DAA |
| Assignment | PE00.19-P-2800DAA | ||
| W2/1 | Right front ground point | Location | GF00.19-P-2000-02DAA |
| Assignment | PE46.35-P-2101DAA | ||
| W3/1 | Ground point (right front wheel well) | Location | GF00.19-P-2000-02DAA |
| Assignment | PE00.19-P-2800DAA | ||
| W6 | Left rear wheel well ground point | Location | GF00.19-P-2000-06DAA |
| Assignment | PE00.19-P-2800DAA | ||
| W6/4 | Ground point (bumper bracket on left of trunk) | Location | GF00.19-P-2000-06DAA |
| Assignment (with CODE (489) AIRMATIC (air suspension with continuous adjustment damping)) 212.077/277 with CODE (488) Steel/air suspension) | PE32.22-P-2101DAA | ||
| Assignment (with CODE (480) Level control at rear axle) | PE32.33-P-2101DAA | ||
| W7 | Right rear wheel well ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAB | ||
| W7/1 | Right taillamp trunk ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAB | ||
| W7/8 | Right wheelhouse trunk ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W8/2 | Right tailgate ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W8/8 | Ground point (right rear end) | Location | GF00.19-P-2000-09DAA |
| Assignment (M 642) | PE15.00-P-2101DAA | ||
| Assignment (M 651) | PE15.00-P-2101DAB | ||
| Assignment (M 272 KE, 273) | PE15.00-P-2101DAC | ||
| Assignment (M 156) | PE15.00-P-2101DAD | ||
| Assignment (M 271, M 272 DE) | PE15.00-P-2101DAE | ||
| W9 | Left front ground point (at lamp unit) | Location | GF00.19-P-2000-01DAA |
| Assignment | PE00.19-P-2800DAA | ||
| W10 | Right front battery ground point | Location | GF00.19-P-2000-02DAA |
| Assignment (M 642) | PE15.00-P-2101DAA | ||
| Assignment (M 651) | PE15.00-P-2101DAB | ||
| Assignment (M 272 KE, 273) | PE15.00-P-2101DAC | ||
| Assignment (M 156) | PE15.00-P-2101DAD | ||
| Assignment (M 271, M 272 DE) | PE15.00-P-2101DAE | ||
| W11 | Combustion engine ground point | Location | GF00.19-P-2000-01DAA |
| Assignment (M 271) | PE07.08-P-2101DAA | ||
| Assignment (M 642) | PE07.16-P-2101DAC | ||
| Assignment (M 651) | PE07.16-P-2101DAG | ||
| Assignment (M 156) | PE07.61-P-2101DAC | ||
| W11/1 | Combustion engine ground point (ground strap) | Location | GF00.19-P-2000-01DAA |
| Assignment (M 156) | PE07.61-P-2101DAC | ||
| W11w1 | Left cylinder bank ground point (engine) | Location | GF00.19-P-2000-01DAA |
| Assignment (M 272 DE) | PE07.08-P-2101DAC | ||
| Assignment (M 273) | PE07.61-P-2101DAA | ||
| Assignment (M 272 KE) | PE07.61-P-2101DAE | ||
| W11w2 | Right cylinder bank ground point (engine) | Location | GF00.19-P-2000-02DAA |
| Assignment (M 272 DE) | PE07.08-P-2101DAC | ||
| Assignment (M 273) | PE07.61-P-2101DAA | ||
| Assignment (M 272 KE) | PE07.61-P-2101DAE | ||
| W12 | Ground point (center console) | Location | GF00.19-P-2000-04DAA |
| Assignment (M 642) | PE07.16-P-2101DAC | ||
| Assignment (M 651) | PE07.16-P-2101DAG | ||
| W13/1 | Ground point (left rear window heater) | Location | GF00.19-P-2000-04DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W13/2 | Ground point (right rear window heater) | Location | GF00.19-P-2000-05DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W15/1 | Right footwell ground point | Location | GF00.19-P-2000-05DAA |
| Assignment | PE00.19-P-2800DAD | ||
| W15/2 | Left footwell ground point | Location | GF00.19-P-2000-04DAA |
| Assignment | PE00.19-P-2800DAE | ||
| W15/5 | Left front footwell ground point | Location | GF00.19-P-2000-04DAA |
| Assignment | PE00.19-P-2800DAF | ||
| W15/7 | Right front footwell ground point | Location | GF00.19-P-2000-05DAA |
| Assignment | PE00.19-P-2800DAG | ||
| W16/6 | Right major assembly compartment ground point | Location | GF00.19-P-2000-02DAA |
| Assignment | PE00.19-P-2800DAE | ||
| W18 | Left front seat crossmember ground point | Location | GF00.19-P-2000-04DAA |
| Assignment | PE00.19-P-2800DAH | ||
| W19 | Right front seat crossmember ground point | Location | GF00.19-P-2000-05DAA |
| Assignment | PE00.19-P-2800DAI | ||
| W26 | Supplemental restraint system (SRS) control unit ground point | Location | GF00.19-P-2000-04DAA |
| Assignment | PE91.60-P-2105DAB | ||

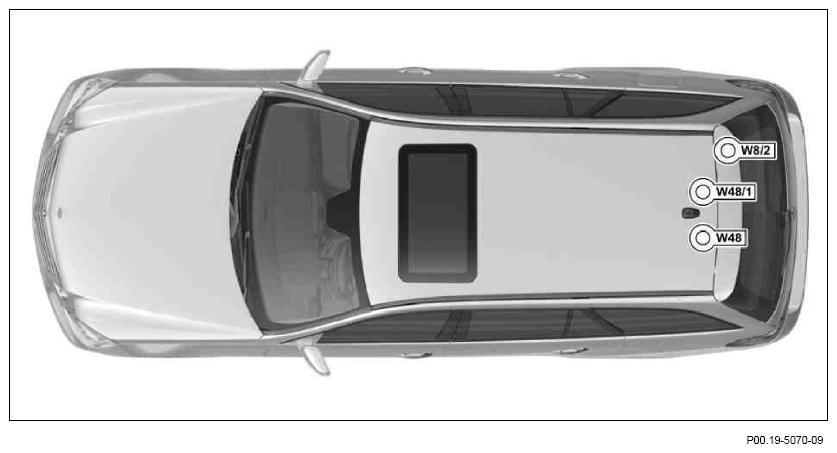

| W48 | Left rear roof frame ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W48/1 | Right rear roof frame ground point | Location | GF00.19-P-2000-09DAA |
| Assignment | PE00.19-P-2800DAC | ||
| W70 | Electronic Stability Program ground point | Location | GF00.19-P-2000-01DAA |
| Assignment (ESP Basis) up to 02/13 | PE42.47-P-2000DAA | ||
| Assignment (ESP Premium) up to 02/13 | PE42.47-P-2000DAB | ||
| Assignment as of 03/13 | PE42.47-P-2000DAC | ||
| Location and assignment of ground points, engine compartment, left | GF00.19-P-2000-01DAA | ||
| Location and assignment of ground points, engine compartment, right | GF00.19-P-2000-02DAA | ||
| Location and assignment of ground points - interior left | GF00.19-P-2000-04DAA | ||
| Location and assignment of ground points, interior compartment, right | GF00.19-P-2000-05DAA | ||
| Location and assignment of ground points, trunk, left | GF00.19-P-2000-06DAA | ||
| Location and assignment of ground points - trunk right | GF00.19-P-2000-09DAA |
