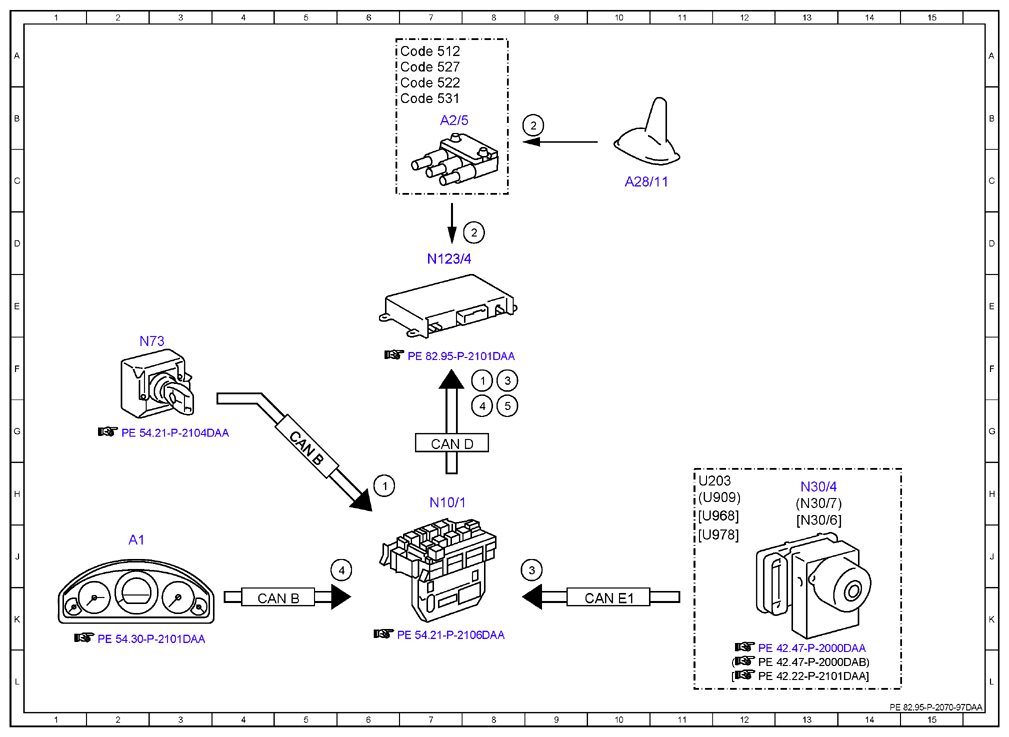

Electrical function diagram for position finding, function - PE82.95-P-2070-97DAA
MODEL 212 with CODE 348 (Emergency call/assistant system)
MODEL 212 with CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 6H |
| 1 | Circuit 15R, status | 8F |
| 2 | GPS, signal | 8D |
| 2 | GPS, signal | 9B |
| 3 | Wheel speed, signal | 8F |
| 3 | Wheel speed, signal | 9J |
| 4 | Travel distance, signal | 6J |
| 4 | Travel distance, signal | 8G |
| 5 | Direction of travel, signal | 8G |
| A1 | Instrument cluster | 2J |
| A2/5 | Global positioning system antenna splitter | 7B |
| A28/11 | Multifunction antenna | 10C |
| CAN B | Interior CAN | 4K |
| CAN B | Interior CAN | 5G |
| CAN D | Diagnostic CAN | 7G |
| CAN E1 | Chassis CAN 1 | 10K |
| Code 512 | COMAND APS with DVD changer | 7A |
| Code 522 | Audio 20 radio | 7B |
| Code 527 | COMAND APS (with navigation) | 7A |
| Code 531 | COMAND APS | 7B |
| N10/1 | Front SAM control unit with fuse and relay module | 7H |
| N123/4 | Emergency call system control unit | 7D |
| N30/4 | Electronic Stability Program control unit | 13H |
| N30/6 | Regenerative braking system control unit | 13H |
| N30/7 | Premium Electronic Stability Program control unit | 13H |
| N73 | Electronic ignition switch control unit | 2F |
| U203 | Valid without DISTRONIC PLUS | 11H |
| U909 | Valid for DISTRONIC PLUS | 11H |
| U968 | Valid for mild hybrid drive | 11H |
| U978 | Valid for full hybrid drive | 11J |
